1. Features
Ø
Small and exquisite, good sound recording quality.
Ø
Human body induction, induction distance within 4 meters.
Ø
Three levels of volume for adjustment.
Can record voice directly by microphone.
Ø
Using three AAA 1.5V batteries for power supply.
Ø
Ø
Built in 8 ohm 1 watt speaker
2. Electrical parameters
Working voltage
Working Current
Speaker
https://www.waytronicmfg.com/
Shenzhen Waytronic Electronics Co., Ltd
MicroSound
Voice Prompter (Body Induction)
WT-M14 V2.00
Standby state
Recording state
info@waytronicmfg.com
DC 5V1A adaptor or 3 AAA batteries
Playing state
8Ω/1W
1
MicroSound M14
≤20uA
≤40mA
≤130mA
Advertisement
Table of Contents
Summary of Contents for Waytronic MicroSound WT-M14

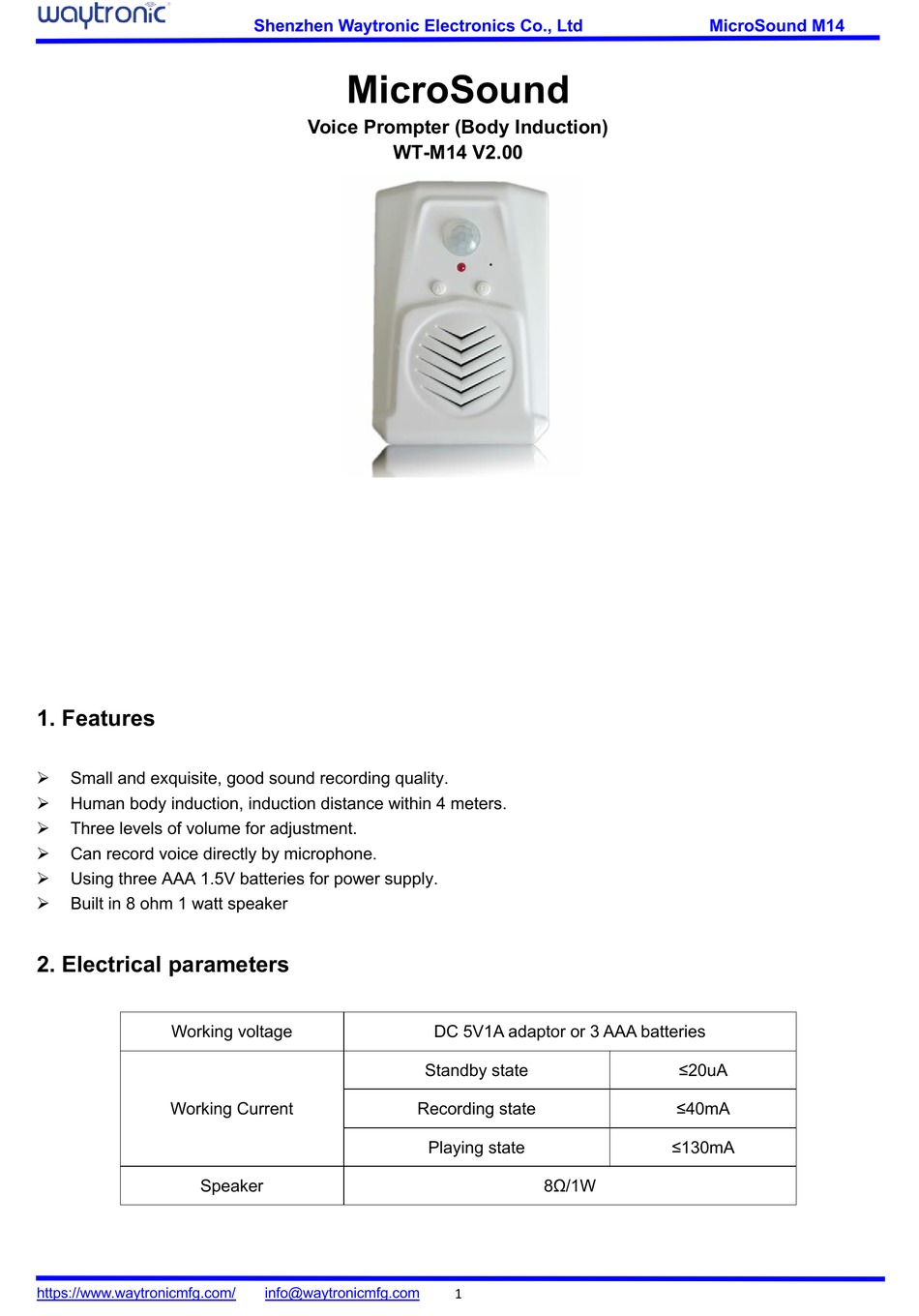

- Page 1 Shenzhen Waytronic Electronics Co., Ltd MicroSound M14 MicroSound Voice Prompter (Body Induction) WT-M14 V2.00 1. Features Ø Small and exquisite, good sound recording quality. Ø Human body induction, induction distance within 4 meters. Ø Three levels of volume for adjustment.
- Page 2 Shenzhen Waytronic Electronics Co., Ltd MicroSound M14 3. Panel introduction Function Function introduction PIR motion sensor Human body inductive probe Indicator light Recording and playing indicator Short press to play; press again to stop Button A Long press 2s, start to record when hearing a “di” sound; press the button again to stop recording with a “di-di”...
- Page 3 Shenzhen Waytronic Electronics Co., Ltd MicroSound M14 4.2 Installation method 1) Can hung on the bracket or flat screw through a mounting hole on the back. 2) Can use binding tape to fix it on the column through the middle of hole at the back.
- Page 4 User manual Standard configuration Velcro Standard configuration Mounting brackets Standard configuration Indemnification SHENZHEN WAYTRONIC ELECTRONIC CO.,LTD. reserves the right to modify and use information without prior notice to customers. New product specifications will be subject to the latest version. https://www.waytronicmfg.com/ info@waytronicmfg.com...
