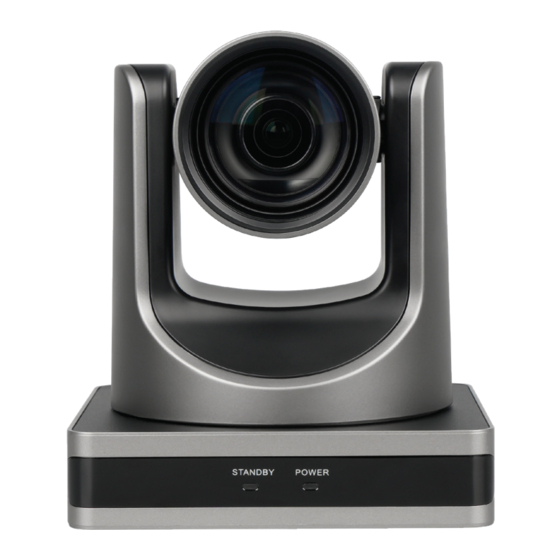

Solutions MS-HD72-12UE User Manual

Usb hd video conference camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
User Guide
MS-HD72-12UE
USB HD Video Conference Camera
Revision: 1.0 - July 2022

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MS-HD72-12UE and is the answer not in the manual?

Questions and answers

Summary of Contents for Solutions MS-HD72-12UE

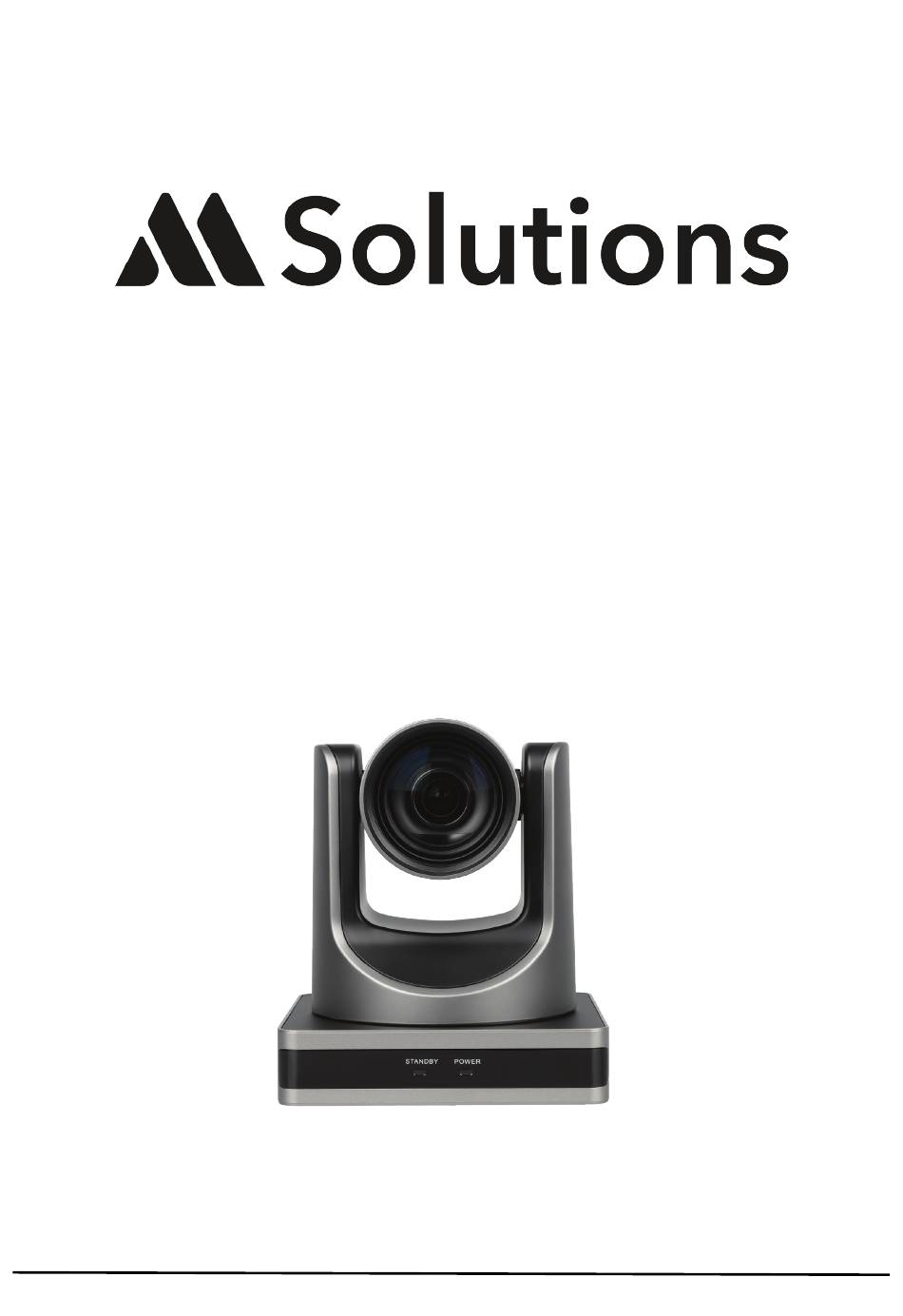

  • Page 1 User Guide MS-HD72-12UE USB HD Video Conference Camera Revision: 1.0 - July 2022...
  • Page 2 MS-HD72-12UE USER GUIDE USB HD Video Conference Camera STANDBY POWER Copyright Notice All contents of this manual, whose copyright belongs to our corporation cannot be cloned, copied or translated without the permission of the company. Product specifications and information which were referred to in this document are for reference only.

  • Page 3: Table Of Contents

    MS-HD72-12UE USER GUIDE Catalogue Note Packing List Quick Start About Product Features Product Specification Interfaces and Buttons Dimension Remote Control RS232 Interface Serial Communication Control GUI Settings MENU EXPOSURE COLOR IMAGE P/T/Z NOISE REDUCTION SETUP COMMUNICATION SETUP RESTORE DEFAULT Network Function...

  • Page 4: Note

    MS-HD72-12UE USER GUIDE Note • Electric Safety Installation and operation must accord with electric safety standard. • Caution to Transport Avoid stress, vibration or soakage in transport, storage and installation. • Polarity of Power Supply The power supply of this product is DC 12V, polarity of the power supply plug drawing shows as below.

  • Page 5: Quick Start

    MS-HD72-12UE USER GUIDE Quick Start 1) Please check connections are correct before starting. Network Cable (Not Supplied) HDMI Cable (Not Supplied) RS232 Cable (Not Supplied) RS485 Cable (Not Supplied) Power Adapter (Supplied) DC 12V IN Power Cable (Supplied) N ET...

  • Page 6: About Product

    MS-HD72-12UE USER GUIDE About Product Features • Full Function USB Interface Full function USB interface, compatible with USB 3.0 and USB 2.0, support audio and encoding output, and support the UVC V1.1 protocol. • 1080P Full HD High-quality HD CMOS sensor with 2.07 million effective pixels for high-quality images up to 1920x1080.

  • Page 7: Product Specification

    MS-HD72-12UE USER GUIDE Product Specification...

  • Page 8: Interfaces And Buttons

    MS-HD72-12UE USER GUIDE Interfaces and Buttons N ET H DMI RS2 3 2 U SB3 .0 LI N E I N RS4 8 5 DC 1 2 V 3 4 5 6 7 Dimensions STANDBY POWER...

  • Page 9: Remote Control

    MS-HD72-12UE USER GUIDE Remote Control CAMERA SELECT RESET PRESET MENU ZOOM SLOW FAST BACKLIGHT P/T RST FOCUS...

  • Page 10: Rs232 Interface

    MS-HD72-12UE USER GUIDE RS232 Interface...

  • Page 11: Serial Communication Control

    MS-HD72-12UE USER GUIDE Serial Communication Control • RS232 Communication Control Camera controlled via RS232. The RS232 serial port parameters are as follows: Baud rate: 2400/4800/9600/38400 Starting Position: 1 bit Data bits: 8 bits Stop bits: 1 bit Parity: None •...

  • Page 12: Gui Settings

    MS-HD72-12UE USER GUIDE GUI Settings MENU Press [MENU] key to display the main menu on the screen. Use the arrow key to move the cursor to desired item and press the [HOME] key to confirm to enter the corresponding sub-menu.

  • Page 13: Color

    MS-HD72-12UE USER GUIDE Mode: Auto, Manual, SAE, AAE, Bright. ExpCompMode (Exposure Compensation Mode): On, Off (Effective only in Auto mode). ExpComp (Exposure Compensation Value): -7 ~ +7 (Effective only in ExpCompMode On). Backlight: On, Off (Effective only in Auto mode).

  • Page 14: Image

    MS-HD72-12UE USER GUIDE WB-Mode (White Balance Mode): Auto, Indoor, Outdoor, One Push, Manual, VAR. RG Tuning (Red Gain Tuning): -10 ~ +10 (Effective only in Auto, One Push, VAR mode). BG Tuning (Blue Gain Tuning): -10 ~ +10 (Effective in Auto, One Push, VAR mode).

  • Page 15: P/T/Z

    MS-HD72-12UE USER GUIDE P/T/Z When in main menu page, move the cursor to [P/T/Z] and press [HOME] key to confirm to enter the P/T/Z page as shown in below figure. SpeedByZoom (The Depth of Field Ratio): On, Off. AF-Zone (Auto Focus Area): Front, Top, Center, Bottom.

  • Page 16: Setup

    MS-HD72-12UE USER GUIDE SETUP When in main menu page, move the cursor to [Setup] and press [HOME] key to confirm to enter the setup page as shown in below figure. Language: EN, Chinese, Russian. USB Format: 1080P60, 1080P50, 1080P30, 1080P25, 720P60, 720P50.

  • Page 17: Restore Default

    MS-HD72-12UE USER GUIDE 30 01 FF command does not work. Effective in Auto and VISCA protocol). P_D_Address: 0 ~ 254. (Effective in Auto, PELCO-D protocol). P_P_Address: 0 ~ 31. (Effective in Auto, PELCO-P protocol). Net Mode: Serial, Paral (Effective in Auto, VISCA protocol).

  • Page 18: Network Function

    MS-HD72-12UE USER GUIDE Network Function Operating Environment Operating System: Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android. Network Protocol: TCP/IP PC Configuration: P4/128M RAM/40G HDD support scaled graphics card, support DirectX 8.0 or more advanced version. Equipment Installation 1) Connect the camera to the network or connect it directly to the PC with a network cable.
  • Page 19 MS-HD72-12UE USER GUIDE Change IP address, two methods as below: Method 1: Input the IP address, username and password to login the web page, select “Network > Lan Settings” to change the IP address. Click “Submit” and restart the camera to take effect the new IP address.

  • Page 20: Visit/Access Camera

    MS-HD72-12UE USER GUIDE Change IP address: Step 1 Search the IP address of camera. Step 2 Select the camera IP that you want to change. Step 3 Select the “Config” dialog of upgrade applets. Step 4 Change the IP address, Netmask and Gateway, then click “Set” .

  • Page 21: Camera Visiting Via Dynamic Dns

    MS-HD72-12UE USER GUIDE 6.5.2 Camera Visiting via Dynamic DNS Set domain name to camera, after configured the parameters, you can use the dynamic DNS to visit camera. Access link: http://hostname: port number. If the computer is: youdomain.f3322.org, and the camera port is 89, the access link should be http://youdomain.3322.org:89.

  • Page 22: Camera Parameter Setup

    MS-HD72-12UE USER GUIDE The default RTSP port number is 554. Camera Parameter Setup 6.6.1 Homepage Introduction Menu The interface includes below two menu bars: Real Time Monitoring: Video image displaying Parameter Setup: Configurate the parameters. A. Video Viewing Window The video viewing window is same as video resolution, the bigger the resolution, the bigger the playing area.
  • Page 23 MS-HD72-12UE USER GUIDE PTZ Setup 1) Pan and Tilt Control The Up, Down, Left and Right arrow and HOME button allow you to manually drive the camera to the desired position. 2) Zoom Zoom In and Zoom Out button allow for wide or narrow view of the space.

  • Page 24: Video Settings

    MS-HD72-12UE USER GUIDE 6.6.2 Video Settings 1) Video Format Support 50Hz (PAL) and 60Hz (NTSC) formats. 2) Encode Level Support baseline, mainprofile and highprofile. 3) Encode Codec Support H264 and MJPEG. 4) Resolution First stream support 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360.

  • Page 25: Image Settings

    MS-HD72-12UE USER GUIDE 7) I Key Frame Interval Set the interval between two I frames, the bigger the interval, the slower the response when opening the image for the first time. 8) Bit Rate Control Two modes for bit rate control: CBR (Constant Bit Rate): Video coder will be coding according to the preset speed.

  • Page 26: Audio Settings

    MS-HD72-12UE USER GUIDE 6.6.4 Audio Settings 1) Audio Switch Enable or disable audio switch. 2)Audio Type Audio type AAC. 3) Sample Rate Sample rate 48K. 4) Bit Rate Bit rate 96K, 128K and 256K selectable. 5) Input Type Input type Line in.

  • Page 27: Network Settings

    MS-HD72-12UE USER GUIDE 6.6.6 Network Settings 1) Lan Settings The default IP address is 192.168.100.88, the MAC address cannot be modified. 2) Port Settings Set the HTTP, RTSP, TCP, UDP and Sony Visca port number of the camera. A. HTTP Port...

  • Page 28: Device Information

    MS-HD72-12UE USER GUIDE 7) Multicast Settings Turn On/Off Multicast, set up the Multicast Address (default is 224.1.2.3) and Port (default is 6688; 6688 is the multicast port of the first stream and 6690 is the multicast port of the second stream).

  • Page 29: Maintenance And Troubleshooting

    MS-HD72-12UE USER GUIDE Maintenance and Troubleshooting Camera Maintains • If camera will not be used for a long time, disconnect the AC power adapter from the AC outlet. • Use soft cloth or tissue to clean the camera cover. •...
  • Page 30 MS-HD72-12UE USER GUIDE Control • Remote control does not work 1) Check and replace with new batteries. 2) Check that the camera is in normal working mode. 3) Check the address key of remote control can match the camera. •...
  • Page 31 www.m4sol.com...
