- Page 1 Version Number Modified by Change Content Type Date V1.1 Software modification 2020.06.29 GPS smart health location watch User Manual Smart Location Watch _______________________________________ User manual...
-
Page 2: Table Of Contents
Contents 1. Product overview ..............................4 2. Safty instruction ..............................5 3. Specification and parameters ........................5 4. Getting started ..............................6 4.1. Hardware and accessories ........................6 4.2. Function key and port .......................... 6 4.3. Main interface description ........................7 4.4. - Page 3 23.6. Real-time monitoring ........................21 23.7. Monitoring and dialing ........................21 23.8. Info ................................23 23.9. Real-time monitoring of multiple terminals ................23 23.10. Send commands ..........................24 23.11. Check alarm list ..........................25 23.12. Setting ..............................26 24. Possible failure and the corresponding operation ................27 25.
-
Page 4: Product Overview

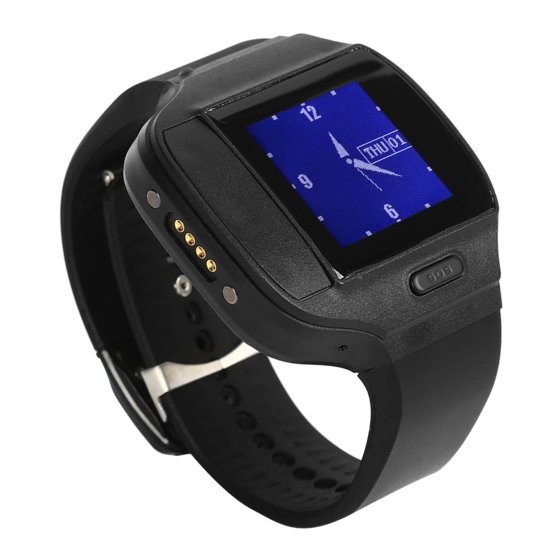

1. Product overview Welcome to purchasing our product! waterproof IP66 The smart location watch has the advantages of , low power, small size, easy to use and supports two-way communication. Can’t be swim Can’t be flooded Tracker has built-in terminals of GPS (global positioning system) module and GSM communication module, which used for getting location data and send it to authorized phone... -
Page 5: Safty Instruction
2. Safty instruction Read these simple guidelines. Not following them may damage to the tracker, put you in danger or break the law. Do not switch the tracker on when mobile phone use is prohibited or Switch on safely when it may cause interference or danger. Follow any restrictions. -
Page 6: Getting Started
Average 27 second Cold Start up 18,000m (Max. 60,000 ft) Max. Altitude 500 m/s (Max. 1000 knots) Max. Speed less than 4g Max. Acceleration 4 days Operation time 4. Getting started This section will describe how to set the tracker. 4.1. -
Page 7: Main Interface Description
4.3. Main interface description Battery indicator GSM signal display Standby cion Charge iocn GPRS connection state GPS status display GSM signal flashing means GSM module is start up, but network is not registered. As shown above, the network is registered, the more the number of signals grid is, the stronger the signal is. -
Page 8: First Use
GPS icon flashing means that the GPS module is searching for the satellite, When it stops flashing means that tracker has fixed position, and it will automatically hidden when close GPS. 4.4. First use 4.4.1 Remove the back cover - Use the mini screwdriver to remove the screws to release the back cover 4.4.2 Insert the SIM card - Tracker only supports Micro SIM card (Do not cut it to nano SIM card) √... -
Page 9: Change Password
4.4.4 Charging - Use AC adapter, the charge time is about 2.5-3 hours. 4.4.5 ON/OFF - Press the power switch for 5 seconds and tracker will turn on/off. Note: after connected with the belt, tracker only can be turned on and can not be turned off! 4.4.6 Parameters setup - Tracker only supports APP setup software by smart phone or by sending command via SMS. -
Page 10: Authorized Number
6. Authorized number 6.1. Set the authorized number by SMS SMS Command: $SMS,000000;W010,NO.,Phone Number,ABC;! For example: Set the 1st authorized number is 13800000000 and just enable monitoring function. $SMS,000000;W010,1,13800000000,010;! Explain: NO.: authorized number’s serial number, range of: 1~3. Phone Number: authorized number, range of: 0~19 characters. A: switch for Geo-fence function, range of: 0~1(0 means disable this function, 1 means enable this function), default is 0. -
Page 11: Sos Emergency Calling
7. SOS emergency calling Press SOS button for 3 seconds or longer, the device will send SOS alarm to all authorization numbers by SMS. If the authorization number was set with the SOS emergency calling function, the device will make a call to authorized numbers one by one and it will stop to make a call if call is answered. -
Page 12: Auto Apn Setting
Auto APN setting The APN list can be configured before delivery (default is China APN). When insert SIM card, tracker will automatically acquire APN in the APN list. If user already set APN, then the tracker will not acquire APN automatically. Function switch Users can set varietys of functions by sending commands. -
Page 13: Fall
Fall When the device senses the user to fall or crash, it Will enter the fall down interface. Then it will have 30 seconds to countdown, sometimes the device may detect errors to produce false alarm, then user can press SOS key to cancel the alarm. -
Page 14: Lcd Display Style Settings
LCD display style settings Users can change the LCD display style by sending commands. SMS Command:$SMS,000000;W032,X! For example: $SMS,000000;W032,1;! Explain: X ： range of ： 0~1(0 means white txt on a black background, 1 means black txt on a white background), default is 0. -
Page 15: Time Zone Setting
$SMS,000000;W018,1,home,,,100;! Explain: NO.: the serial number for geo-fence must be 1 to 5. name: name of geo-fence, range of: 0-9 characters. lat: center latitude, range of: -90.00000000~90.00000000, unit: degrees. lng: center longitude, range of:-180.00000000~180.00000000, unit: degrees. Radius: geo-fence radius, range of: 0.0~1.79E+308, unit: meters. （... -
Page 16: Low Battery Alarm
Low battery alarm When the battery level is lower than 15%, it will send SMS to all authorization numbers or send alarm data to server by GPRS ； When the battery level is 0%, it will automatically power-off.Charging after power-off,when the battery level is higher than or equal to 15%, it will send SMS to all authorization numbers .At this point if the device is connected to GPRS, equipment will send alarm data to the server. -
Page 17: Login
scan Andriod Iphone/Ipa The server to download address abroad ： http://hk.gpstotrack.com/gps scan Andriod Iphone/Ipa 23.2. Login Login interface for different servers Platform has two severs,which are the domestic server and foreign server.Chinese APP interface is use of domestic server, English APP interface is use of foreign server, so system can automatically switch sever when user switchs the mobile language. -
Page 18: Sms Settings
23.3. SMS settings SMS Settings: Send SMS to tracker. But you can't send GPRS commands. Send the GPRS commands only when terminal online. Notice ： SMS settings need networking, mobile can use GPRS. - 18 -... -
Page 19: Main Interface
23.4. Main interface 23.5. Tracking terminal and terminal history query Interface switching - 19 -... - Page 20 Terminal history query Tracking teminnal - 20 -...
-
Page 21: Real-Time Monitoring
23.6. Real-time monitoring 23.7. Monitoring and dialing - 21 -... - Page 22 1) If enable this function, when the authorization number call in to the device, it will connect to the call and shut down the speaker, then the background voice of the device will be listened. Note: Please make sure the SIM card installed supports displaying caller ID. 2) Dialing - 22 -...
-
Page 23: Info
23.8. Info 23.9. Real-time monitoring of multiple terminals - 23 -... -
Page 24: Send Commands
23.10. Send commands 1) Send commands 2) Command sending mode - 24 -... -
Page 25: Check Alarm List
3) Check the list 23.11. Check alarm list - 25 -... -
Page 26: Setting
23.12. Setting - 26 -... -
Page 27: Possible Failure And The Corresponding Operation
SMS uploading data format and example <Alert event type>,<device IMEI>,<device name>,<SMS date&time>,<GPS fix date&time>,<battery level>,<speed>,<altitude>,<mileage>,<GSM signal strength>,<GPS positioning>,<Link location information> Example ： SOS,860719020336016,DeviceName,2015\01\15 09:59:58,G:2015\01\15 09:59:57,100%, 0.3Km/h,502.8m,,21,A, http://www.megastek.net:81/gps/new/gps.jsp?latlng=22.63569 167N,114.03547067E GPS tracking and monitoring platform Website ： http://hk.gpstotrack.com/gps/ User name ： Guest Password ： 666666... -
Page 28: Sms Uploading Data Analysis
Mileage, unit: Km. <GSM signal strength> GSM signal strength, range of: 00~99. <GPS positioning> A means GPS positioning success, V means it is failure. China: China: <Link location Link http://www.megastek.net:8 http://www.megastek. 1/gps/new/gps.jsp?latlng= net:81/gps/new/gps.js information> head p?latlng=22.63678367 Google: N,114.03283817E http://maps.google.com/ma ps?f=q&hl=en&q=... -
Page 29: Alert Event Type Table
Latitude Format: DD.DDDDDDDD value (degrees). Google: http://maps.google.co means north latitude, S m/maps?f=q&hl=en&q means south latitude. =22.63678367N,114.0 Longitu Format: DDD.DDDDDDDD 3283817E (degrees). value means west longitude, means east longitude. Alert event type table Type name Description Example Restart Device restart by hardware. Restart PowerOn Device power on by software.
