HID Wall Pack - WL Series
INSTALLATION INSTRUCTIONS
Lamp Types: High Pressure Sodium 150 Watt
Model: WL150HPS
IMPORTANT:
ELECTRICAL REQUIREMENTS
A qualified electrician should complete all required wiring. This fixture will accept 120, 208, 240 or 277
volts AC and must be properly grounded for safety. A mounting suitable for outdoor use and rated for
wet locations is required. Follow all applicable electrical codes and regulations.
WARNING: Electric shock hazard
Disconnect power at circuit breaker or fuse box before installing or servicing light.
WARNING: Fire hazard
USE MIN 90ºC SUPPLY CONDUCTORS.
CONNECT TO SUPPLY IN EXTERNAL JUNCTION BOX ONLY.
Lamp and housing become very hot during use.
Ensure free air circulation around unit to dissipate heat.
Avoid enclosed locations and locations where flammable debris (leaves, cut grass, etc.) might collect.
Avoid locations where humans or animals might accidentally touch fixture.
WARNING: Explosion hazard
Never operate light without securing the lens door. When light is operating, the gas in the
lamp inner arc tube is at high pressure.
Never operate light if the fixture lens or outer glass envelope of the lamp is broken or missing.
WARNING: Explosion hazard
Wear safety glasses and gloves when handling lamp, High Pressure Sodium outer envelope is under
vacuum and could implode.
FOR OUTDOOR USE ONLY
NOT FOR USE IN HAZARDOUS ATMOSPHERES
Read instruction sheet carefully before installing fixture.
Retain instructions for future reference.

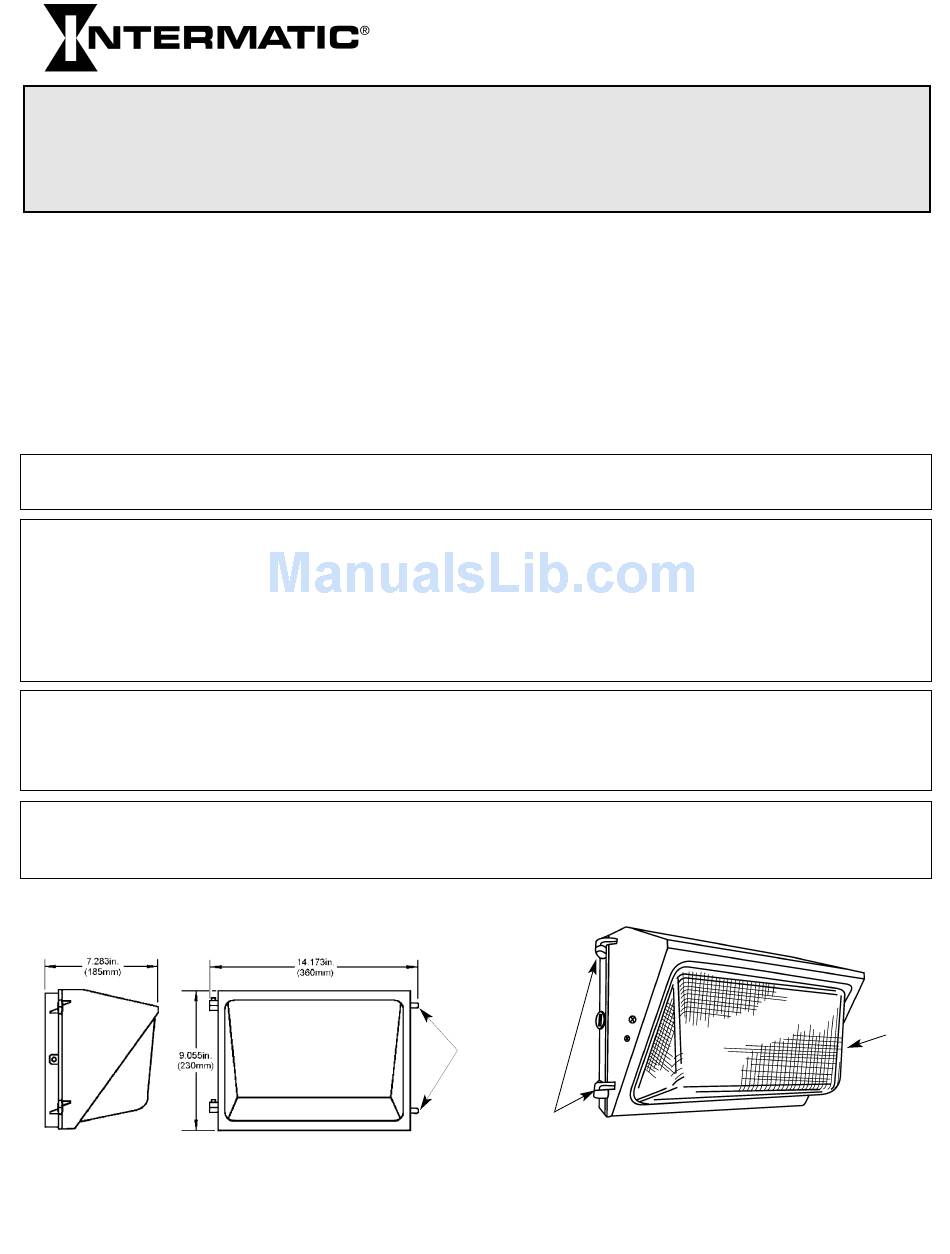

Figure 1
Screws
Hinge
Figure 2
Install with Lamp vertical
Lens
Cover
