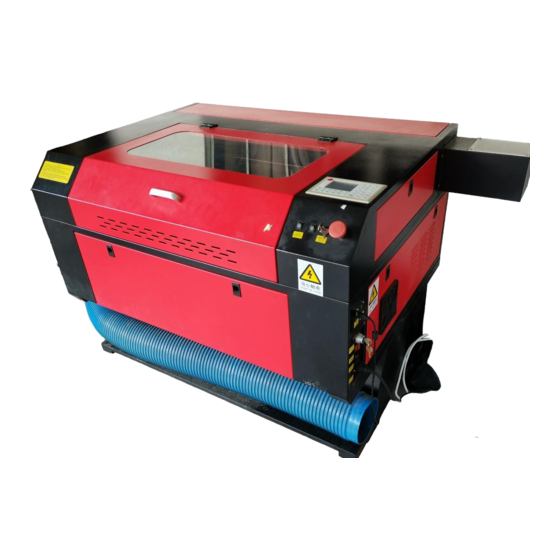

- Page 1 Laser Engraver User Manual Applicable models：X700 、X900 济 南 红 帆 科 技 有 限 公 司 R E D S A I L T E C H C O . , L T D...
- Page 2 This type of laser machine is class GB4 laser product.Please be careful about the laser radiation, avoid raying to eyes or skin by direct or scattered radiation!
-
Page 3: Table Of Contents
X700 / X900 Laser Machine User Manual Contents Chapter One Preface..............................3 Chapter Two Summary 2.1 Characteristics................................4 2.2 Introduction of main parts............................5 Chapter Three Installation and description of accessories 3.1 How to Install Laser Tube............................6 3.2 How to connect water pipe, air pipe and air pump....................6 3.3 How to connect the ventilators to ventilation tube....................9... -
Page 4: Chapter One Preface
2. Be sure the equipment is grounding properly. The range of application of this manual: This manual is applicable to our X700/X900 series laser engraving and cutting machines. 济南红帆科技有限公司 h t t p : / / w w w . h f l a s e r . c o m... -
Page 5: Characteristics
X700 / X900 Laser Machine User Manual Chapter Two Summary This series of laser engraving machine adopts high performance two-phase stepper motor and two-phase stepper driver, with the high speed engraving and high running accuracy. 2.1 Characteristics： Model X700 X900... -
Page 6: Introduction Of Main Parts
X700 / X900 Laser Machine User Manual 2.2 Instruction of main parts Note : 1. Rear cover ( the place of laser tube, refer to 3.1) 2. The control panel 3. Assistance control switch 4. Switch box( distribution box) 5. USB input 6. -
Page 7: Chapter Three Installation And Description Of Accessories
X700 / X900 Laser Machine User Manual Chapter Three Installation and description of accessories 3.1 How to install laser tube 1. Reflecting mirror frame 2. Water outlet 3. Cathode- 4.Water inlet 5. Anode+ 6.holder of the laser tube 7. The laser light outlet （Picture 1) - Page 8 X700 / X900 Laser Machine User Manual Figure 2（2-1） Note : 1. Water inlet 2. Water outlet 3. Air inlet 4. Water outlet 5. Water inlet 6. Air outlet Step of installation: 1--4 2--5 3--6 3.2.1.2( How to install the industrial chiller) Figure 2 （2-2）...
- Page 9 X700 / X900 Laser Machine User Manual 3.2.1 How to connect water pipe, air pipe and water pump( industrial chiller) (1) Please fill the tank with water before connecting( the water level should exceed the 3/4 of the tank, fooled the water pump) (2) please connect the water pipe and air pipe according the figure 2.
-
Page 10: How To Connect The Ventilators To Ventilation Tube
X700 / X900 Laser Machine User Manual 3.3 How to connect the ventilators to ventilation pipe （Figure 3） Note : 1. The mounting holes of ventilator 2. Ventilation pipe 3.ventilator (fan) Connect the ventilator to the machine: 1.Air the end of the tube (2) on the fan outlet (1) and secure it. Then the vent pipe is placed outdoors 2.Connect the other end of the ventilation pipe attached to the device vents(1), and... -
Page 11: The Instruction Of The Power Master Control Switch
X700 / X900 Laser Machine User Manual 3.5 The instruction of the power master control switch （Figure 5） 1. Total power switch: control the total power supply of the equipment 2. The switch of the lamp: control the lamp power of the equipment 3. the switch of the laser: control the laser tube 4. Input power of the equipment is 220V. -
Page 12: How To Connect Usb Cable
X700 / X900 Laser Machine User Manual Upper cover door 3.7 The connection of the USB Cable Please connect the USB data cable with the control card USB port and PC USB port.( figure （ Figure 7） Note : 1. USB interface 2. USB date wire 3. Computer USB port The device system supports to work offline. -
Page 13: How To Adjust Laser Beam Path
X700 / X900 Laser Machine User Manual 4.2 User manual of Laser Beam Path Adjustment Please switch on the power of chiller(on the front of chiller)after connecting all accessories,then turn on the switch of machine(leakage protector,emergency switch and switch of Main Power included) after water circulation good inside the tube. - Page 14 X700 / X900 Laser Machine User Manual coincide(Figure 9). The first Mirror frame The second Mirror frame （Figure 9） Step 4: The adjustment of the second mirror and the third mirror Please move the laser head to the left end of X axis, put masking paper int he front of the little hole of laser head, gently press “点射/Pulse”...
-
Page 15: Chapter Five Processing Operation Of The Equipment
X700 / X900 Laser Machine User Manual （Figure 11） Step 6: Laser Processing Laser path is OK, you can(Figure 12) （Figure 12） Chapter Five The processing of equipment Please download the working file to laser machine with reference to “System operation user manual”. -
Page 16: Chapter Six Maintenance And Notes Of The Equipment
X700 / X900 Laser Machine User Manual Chapter Six The maintenance of equipment and Notes For machine’s stable working, day-to-day maintenance is the key. Good maintenance, can prolong the span life of machine, reduce fault rate and improve product quality. Please refer to below instructions: The key to make sure machine work stably is the maintenance. -
Page 17: Notes Of The Equipment
X700 / X900 Laser Machine User Manual top of laser head. Focus lens in the barrel of the of laser head). Mirrors and lens are easy to dirty, cause wastage, please take out No. 1 and No. 2 mirrors when clean them. - Page 18 X700 / X900 Laser Machine User Manual same power strip for machine and computer. Special Statement: Redsail reserves the right to change user manual contents and products specifications without the notice.All information has been checked carefully, in order to being accurate.Any changes of products,please forgive without the notice.
