Summary of Contents for rotai RT8900

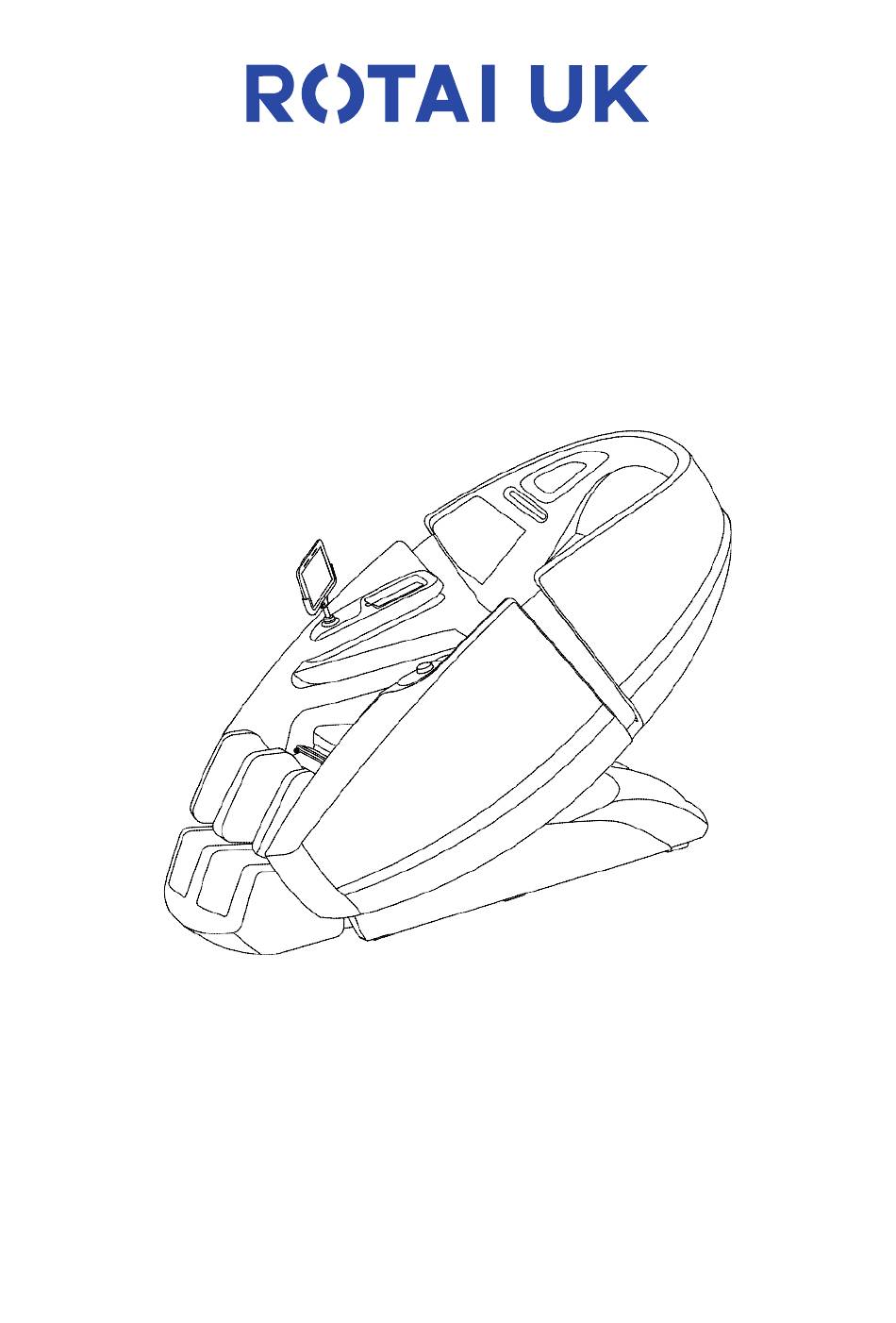

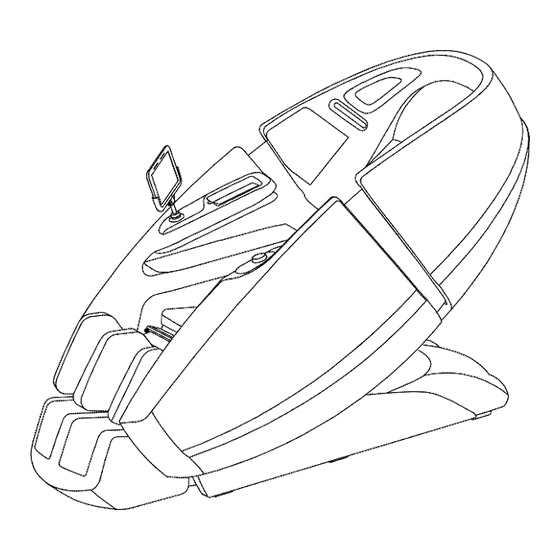

- Page 1 ROTAI ULTIMATE (Dual-Core) RT8900 (UNITED KINGDOM SPECIFICATION)* User Manual All materials tested and certificated by Eurofins (UKAS Registered Testing House) to British Standards Fire Regulations BS5852 Part 1:1979; BS5852 Part 2:1982, EN1021-1:2014, EN1021-2:2014...
-
Page 2: Table Of Contents
Thank you for purchasing what we believe to be the best massage chair currently in world wide production. Please read this user manual carefully before using the RT8900 to ensure proper installation and operation. Please keep this USER MANUAL for future reference. -
Page 3: Safety Precautions
SAFETY PRECAUTIONS • Precautions listed below will help to ensure proper use of this appliance. • This chair must be plugged into a power point with RCD (residual current device) protection for the electrical warranty on this appliance to be valid. If your fuse box is not RCD protected then the plug must be used in combination with a BS approved RCD plug. - Page 4 Cautions Regarding the Adapters and Cord • Always unplug this chair from the electrical outlet immediately after using and before cleaning. CAUTION • The chair should never be left unattended when plugged in. Unplug from outlet when not in use. Unplug from outlet during thunder or lightning storms, and before changing any parts.
-
Page 5: Name And Function Of Each Component
NAME AND FUNCTION OF EACH COMPONENT External Structure Audio Speaker Head Pillow Headpiece Microphone USB Charging Port Back Cover Touch screen Controller Armrest Quick Access Buttons Back Cushion Armrest Seat Cushion Power Box Casters Leg rest Massage Unit Internal Structure Shoulder Massage Air Bags Upper Mechanism Massage Unit Backrest Heat... -
Page 6: Quick Control Buttons
NAME AND FUNCTION OF EACH COMPONENT Quick Control Buttons Zero Gravity Position Pause Back & Leg Rest Rotary Dial Power/Auto Massage Raise Backrest Extend Footrest Raise Footrest Lower Backrest Retract Footrest Lower Footrest... -
Page 7: Instructions Of Quick Control Buttons
NAME AND INSTRUCTIONS FOR QUICK CONTROL BUTTONS Power/Auto Massage Long press to turn the chair on/off. Quick press rotary switch to toggle auto massage programs. Rotary Switch Rotate clockwise/counter-clockwise to increase/decrease 3-D massage intensity. Zero Gravity Position ZeroG Press to position the chair in Zero Gravity Position. Press again to restore to the default position. -
Page 8: Features
FEATURES 1. One Press Control Sliding Forward The chair will slide forward by 28cm and then recline. The glider recliner linkage mechanism is for space saving purposes and to provide the ultimate positioning for relaxation. 2. Zero Gravity Position In this position, where the height of the legs are slightly higher than the upper body, the weight of the body can be evenly distributed throughout reducing the pressure on the spine and joints. -
Page 9: Preliminary Checks
INSTALLATION METHOD We very much recommend visiting this excellent video giving full details of unpacking & installation Step 1: Take all massage chair components and accessories out of the packaging • Before beginning installation, please verify that all components are included (check against the Packing List carefully). - Page 10 INSTALLATION METHOD Step 3: Install Touch Screen Controller Holder Insert the lower end of the Touch Screen Controller Holder into the socket and turn the nut clockwise to secure the holder into place. Step 4: Install the Footrest Unit Raise the Leg rest unit & thread the Air Hose into the air nozzle, then fit the Air Valve Plug into the Air Valve Port which is located at the face side of the seat base making sure they are well secured.
- Page 11 INSTALLATION METHOD Put the Leg rest Hanger sleeve into the Leg rest Hanger. Attach the Leg rest Hanger onto the Leg rest Rotation Shaft. Then attach a DK Circlip to the end of the Leg rest Rotation Shaft to hold the leg rest in place, Zip the footrest and main chair together.
-
Page 12: Installation Site
INSTALLATION METHOD Installation Site Clearance space for the massage chair: • Ensure that there is at least a 10cm clearance from the wall to enable the recline of the backrest; a 60cm clearance space is needed for the extension of the footrest so that the mechanism can slide forward. - Page 13 WARNINGS WARNING Do not use the massage chair in any high humidity environments, such as, but not limtied to indoor swimming pools or bathrooms. This will prevent the possibility of an electric shock or other electric malfunctions in the chair. Please keep the massage chair away from heated surfaces to prevent fire hazards or damage to the product.
-
Page 14: Moving Methods
Roll the chair on its casters to the desired location (see sketch below or view an excellent video demonstrating how to move the RT8900). CAUTION •... -
Page 15: Commissioning
GETTING STARTED • Use the quick access button to recline the backrest to its lowest position. Raise and extend the footrest to its top position, making sure there is enough clearance before commissioning. • Return the backrest and footrest to its default position after use and not to forget to turn off the power switch. -
Page 16: Leg Extends/Retracts
LEG EXTENSION/RETRACTION Press and hold “ ” or “ ” button to extend or retract the footrest to the length you Footrest Extended Footrest Retracted A footrest sensor is set at the bottom of the footrest. The footrest will adjust the length WARNING •... -
Page 17: Care And Maintenance
CARE AND MAINTENANCE INSTRUCTIONS • To treat stains on back panel, armrest, footrest, plastic parts or air hose, spot clean with a mild detergent foam then wipe it with a dry clean cloth. • To treat stains on the controller or power box, spot clean with a dry clean cloth. •... -
Page 18: Trouble Shooting
Please note that any unauthorised repairs will void any warranty. Product Specification Name: Rotai Ultimate (Dual-Core) Massage Chair (UK Specification) Model: RT8900 Rated Voltage: 220-240V~ Rated Frequency: 50/60Hz...
Need help?
Do you have a question about the RT8900 and is the answer not in the manual?
Questions and answers

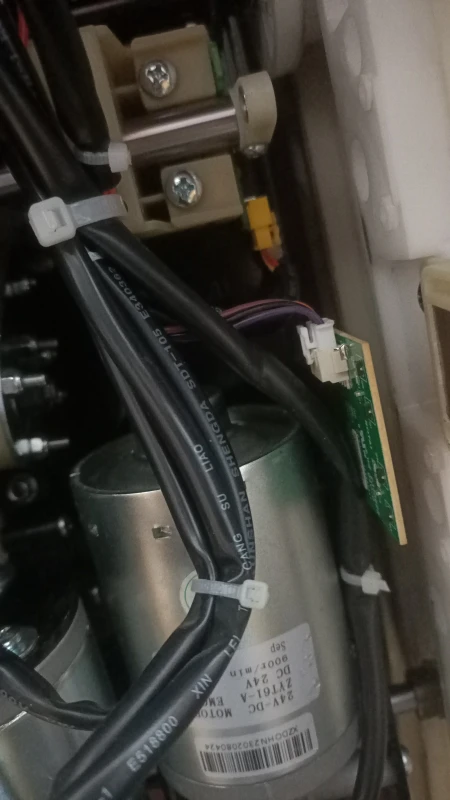

Merhaba ben Cellini Masaj koltuğu teknik servis hizmetleri den İsmail RT 8900 koltuğun sırt mekanizması vücut taraması yapmıyor ve masaja başlamıyor ne yapabilirim yardımcı olursanız sevinirim teşekkürler
Check the following steps if the Rotai RT8900 massage chair's back mechanism is not performing body scanning and starting the massage:
1. Ensure Proper Power Connection – Verify that the chair is plugged into a working power outlet.
2. Restart the Chair – Turn off the chair, unplug it for a few minutes, then plug it back in and restart.
3. Check for Obstructions – Ensure there are no objects blocking the rollers or sensors.
4. Verify Seating Position – Sit correctly in the chair so the body scanning sensors can detect your position.
5. Use the Correct Settings – Make sure the scanning function is enabled in the touch screen controller.
6. Inspect for Error Messages – If an error code appears, refer to the troubleshooting section of the user manual.
7. Contact Support – If the issue persists, consult the manual for further troubleshooting or contact customer service for assistance.
This answer is automatically generated
Merhaba ben Cellini Masaj koltuğu teknik servis hizmetleri RT8900 koltuğun arasında bana yardımcı olursanız sevinirim
