Summary of Contents for Honeywell Home CN80G Series

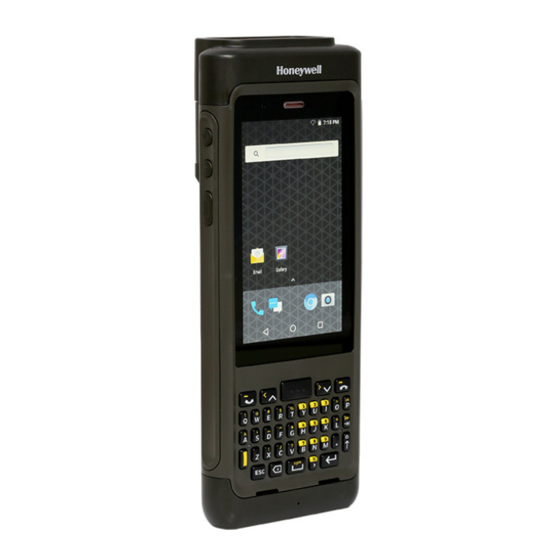

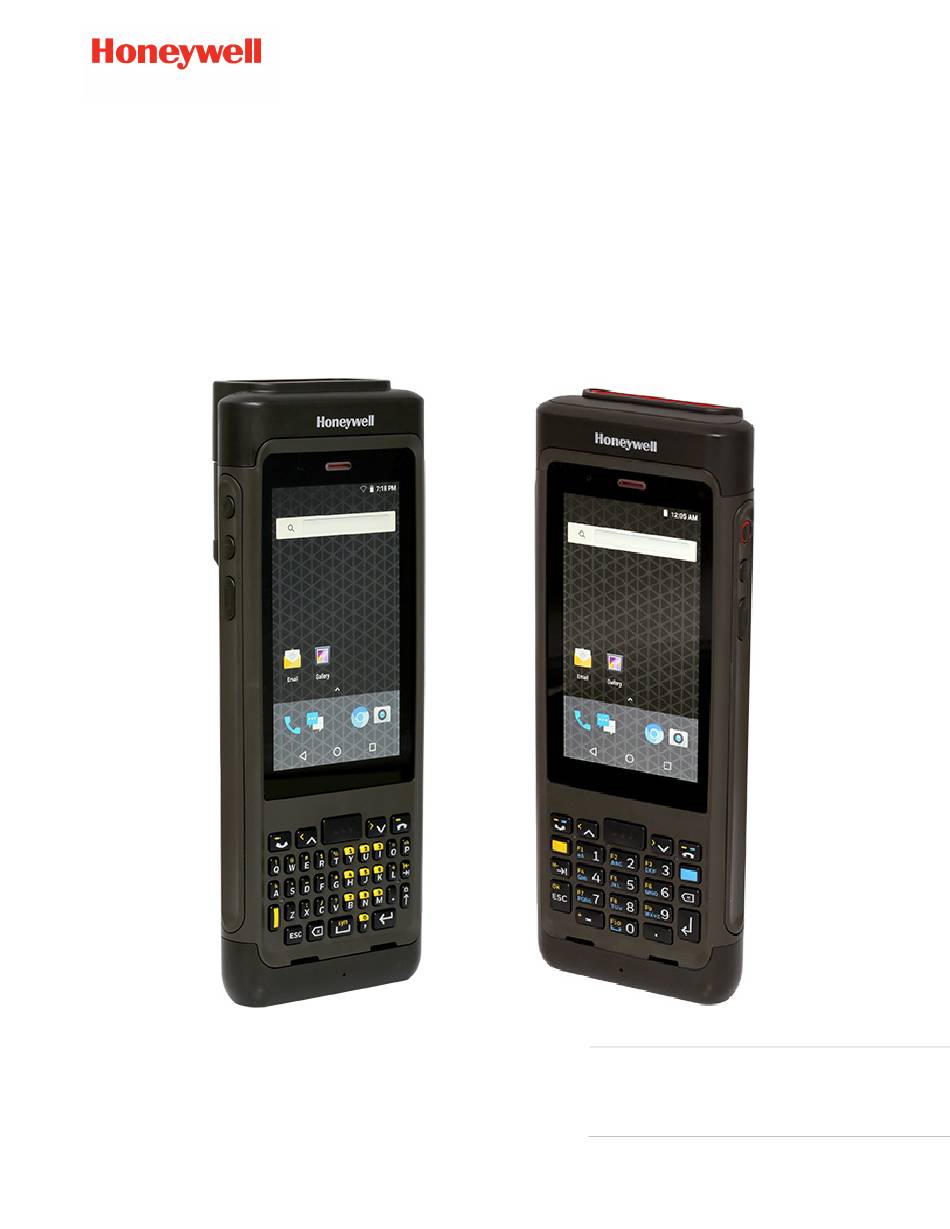

  • Page 1 CN80G Series Mobile Computer powered by Android™ User Guide...
  • Page 2 Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made. HII makes no representation or warranties regarding the information provided in this publication. HII shall not be liable for technical or editorial errors or omissions contained herein;...

  • Page 3: Customer Support

    Customer Support Technical Assistance To search our knowledge base for a solution or to log in to the Technical Support portal and report a problem, go to honeywell.com/PSStechnicalsupport. For our latest contact information, see sps.honeywell.com. Product Service and Repair Honeywell International Inc. provides service for all of its products through service centers throughout the world.
  • Page 4 CN80G Mobile Computer Series User Guide...

  • Page 5: Table Of Contents

    TABLE OF CONTENTS Customer Support ........................iii Technical Assistance ......................iii Product Service and Repair ....................iii Limited Warranty ........................iii Chapter 1 - About the Computer Features........... 1 About the CN80G Mobile Computer Series................. 1 Model Overview ........................1 Features of the CN80G Mobile Computer ..............
  • Page 6 Enable Airplane Mode ......................17 Change the Screen Lock to Protect the Computer............17 CN80G Overview and Key Security Features..............17 About the CAC Reader ......................18 Install or Remove the Honeywell Snap-on CAC Reader ........19 Insert the CAC Card......................19 About FIPS Mode .........................19 Assured Radio Deactivation.....................20 Disabling Ethernet Bridging (In-Dock Communications) .....................20...
  • Page 7 Accessories for the Computer ....................37 Chapter 2 - About the User Interface and Applications......39 About the User Interface ......................39 Navigation and Function Buttons ..................40 About Status Bar Icons......................41 Remap a Button or Key......................41 Restore Default Button Action..................42 View and Manage Notifications..................42 Open Quick Settings......................42 Customize the Home Screen ....................43 Customize the Favorites Tray....................43...
  • Page 8 Use the Scan Demo App......................58 Change the Scan Demo Symbology Settings ............59 Use the Imager as a Flashlight ..................59 Chapter 4 - Use the Phone................61 About the Phone...........................61 Add or Switch Between Network Carriers................62 Select a SIM Card Slot ......................62 Activate the Phone........................63 Make a Phone Call........................66 Answer the Phone........................67...
  • Page 9 About Certificates........................87 About Bluetooth Communications ..................88 Connect a Bluetooth Device....................88 Rename the Computer and View File History ............89 Rename, Share, or Unpair a Paired Device..............89 About the Scanner Edge App ....................89 About Serial and USB Communications................91 USB Troubleshooting ......................91 How to Share Your Mobile Data Connection..............91 Share the Data Connection Through USB or Bluetooth ........91 About Near Field Communication (NFC) ................92 Developer Information .......................92...
  • Page 10 Install OTA Updates......................104 Reboot (Restart) the Computer................... 105 About Enterprise Data Reset....................106 Before You Begin ........................ 106 Enterprise Data Reset the Computer ................. 106 About Full Factory Reset......................107 Before You Begin ........................ 107 Full Factory Reset the Computer ................. 107 Repairs ............................

  • Page 11: Chapter 1 - About The Computer Features

    CHAPTER ABOUT THE COMPUTER FEATURES This chapter introduces the CN80G Mobile Computer. Use this chapter to learn about the basic computer features, functions, and accessories. About the CN80G Mobile Computer Series CN80G mobile computers, built on the Mobility Edge™ platform, deliver real-time connectivity, advanced data capture, and future-proof investment protection.
  • Page 12 Model Model Available Features CN80L0N CN80L1N 3 GB/4 GB DDR4 RAM, 32 GB flash memory Large, high definition, bright color, outdoor-readable display with responsive multi-touch capacitive touch panel Integrated ambient light sensor, proximity sensor, accelerometer, gyroscope, magnetometer, and pressure sensors Choice of physical keypad: •...

  • Page 13: Features Of The Cn80G Mobile Computer

    Features of the CN80G Mobile Computer CN80G Model with N6603ER Imager Battery Status /Notification LED Speaker Microphone Power Button Aux Button Scan Status LED Scan Button Touch Panel Scan Button Keyboard (model dependent) Speakers Microphone I/O Connector CN80G Mobile Computer Series User Guide...
  • Page 14 Microphone Imager Window (LED/Laser Aperture) Pressure Sensor Laser Safety Label Location Camera Lens and Flash Volume Buttons microSIM/microSD Card Door Scan Button IMEI Label Location on Model CN80L1N Battery Latch Stylus Battery Hand Strap CN80G Mobile Computer Series User Guide...
  • Page 15 CN80G Model with EX20 Near/Far Imager Note: The EX20 Near/Far Imager is only available for CN80L0N models. Battery Status/Notification LED Speaker Microphone Power Button Aux Button Scan Status LED Scan Button Touch Panel Scan Button Keyboard (model dependent) Speakers Microphone I/O Connector CN80G Mobile Computer Series User Guide...
  • Page 16 Microphone Imager Window (LED/Laser Aperture) Laser Safety Label Location Camera Lens and Flash Volume Buttons microSIM/microSD Card Door Scan Button Battery Latch Stylus Battery Hand Strap CN80G Mobile Computer Series User Guide...

  • Page 17: About The Battery

    About the Battery The computer uses a rechargeable 3.85 V Li-ion battery as its main power source. The battery has a 22.3 watt hour capacity. Several factors determine the life of your battery, such as display brightness, display timeout, input device, extreme temperature, and usage.

  • Page 18: Unlock The Dust Cover

    Unlock the Dust Cover Important Information Caution: Read Battery Recommendations and Safety Precautions on page 15 and all cautionary markings on the battery, charging peripheral, and device using the battery before attempting to install, use, or charge the battery. About CN80 Non-Incendive Models (CN80G-L0N-xxxxx1F, and CN80G-L1N-xxxxx1F) Warning: Explosion Hazard - Batteries must only be changed or charged in an area known to be non-hazardous.

  • Page 19: Charge The Battery Before Use

    Charge the Battery Before Use CN80G computers ship with a partially charged battery. Fully charge the battery before using your computer for the first time. Note: CN80G battery ships separately from the mobile computer. You can charge the battery with a CX80 series charging accessory before or after you install the battery in the computer.
  • Page 20 4. Release one end of the hand strap. 5. Slide the battery latch to the right. 6. Lift up on the edge of the battery and remove it from the computer. CN80G Mobile Computer Series User Guide...
  • Page 21 7. Insert the charged battery into the computer. 8. Press down on the edge of the battery to engage the lock. 9. Attach the hand strap. Snap 10. Press the Power button. CN80G Mobile Computer Series User Guide...

  • Page 22: About The Battery Status

    About the Battery Status Use the battery icon in the Status bar at the top of the screen to see the charge level of your battery. If you want more detailed information on your battery, such as usage time, charge remaining on the battery, or battery health information, open the Settings app and tap either Battery or Honeywell Settings >...

  • Page 23: About The Battery Status Led Setting

    About the Battery Status LED Setting You can change the behavior of the Battery status LED if the out-of-box behavior for a charging battery (blinking green) is not acceptable to your environment. You can choose one of three options: • Default Battery LED (optional Android OS configuration) •...

  • Page 24: Check The Battery Level And Usage

    3. Choose one of the options: • Default Battery LED (optional Android OS configuration) • Honeywell Battery LED (factory default/out-of-box configuration) • No Battery LED Check the Battery Level and Usage In addition to the Battery status icon and LED, you can monitor the battery status from the Settings app.

  • Page 25: Battery Recommendations And Safety Precautions

    Battery Recommendations and Safety Precautions Caution: Improper battery replacement or incompatible device usage may result in risk of burns, fire, explosion, or other hazard. Dispose of lithium-ion batteries according to local regulations. Risk of fire and burns if improperly handled. Do not open, crush, heat above 50°C (122°F), or incinerate.

  • Page 26: Power On The Computer

    • Do not immerse the battery pack in water or get the battery pack wet before proper installation in the computer. Power On the Computer After you have fully charged and installed a battery, power on the computer for the first time: •...

  • Page 27: Enable Airplane Mode

    Enable Airplane Mode If you do not need to connect to any wireless networks, you can enable Airplane mode to turn Off the radios and save battery power. 1. Swipe up from the bottom of the Home screen to access all apps. 2.

  • Page 28: About The Cac Reader

    The terminal includes these key security features: • Support for the Smartcard (CAC) reader • FIPS 140-2 Level 1: Data in Motion (DIM)/Data at Rest (DAR) • DoD Security Banner upon startup (when FIPS enforcement mode is activated) • Assured Radio Deactivation (ARD) •...

  • Page 29: Install Or Remove The Honeywell Snap-On Cac Reader

    Install or Remove the Honeywell Snap-on CAC Reader Remove Install Insert the CAC Card Insert a CAC into the slot with the contact pins facing up. About FIPS Mode Federal Information Processing Standards (FIPS) is a US government security standard used to approve cryptographic modules. For CN80G models, you may be required to turn on this feature.

  • Page 30: Assured Radio Deactivation

    You can select each option individually or both: 1. Tap Settings > Honeywell Settings. 2. Tap toggle On to activate the feature. Tap toggle Off to deactivate the feature. Note: The DoD Security Banner will appear when FIPS enforcement mode is activated. Assured Radio Deactivation This application can deactivate and reactivate all radios.

  • Page 31: About Apriva Guard Software

    About Apriva Guard Software Apriva Guard™ for Android employs PKI authentication and login software to control user access to devices and applications using an Android Operating System. Apriva Guard is pre-installed on the CN80G for strong security and a simplified user experience.

  • Page 32: Smart Card Reader

    Smart Card Reader Apriva Guard for Android provides the following option for Smart Card Readers: • Gemalto (default) – For use with USB Gemalto card readers, such as customized snap-on readers from device manufacturers. About Batch Configuration Honeywell Batch mobile computers are manufactured without RF transmission capabilities.

  • Page 33: Configure The Screen Backlight

    3. Choose one of the following options: • Normal mode • Finger enhanced mode • Glove enhanced mode • Stylus enhanced mode 4. Exit the Settings app. Configure the Screen Backlight The display has an ambient light sensor that automatically adjusts the backlight intensity to conserve power and ensure the display is readable.

  • Page 34: About The Keypad

    Scan Status LED Descriptions LED Color Description Green Good read of a barcode. Blinking green The data collection engine is processing or starting up. Failure to scan barcode. Check to make sure you have the correct symbology enabled. To learn more about how to use and configure the imager engine for scanning, see Use the Image Engine beginning on page 49.

  • Page 35: About The Color-Coded Keys

    40-Key QWERTY Keypad 23-Key Numeric Keypad Caps Lock Status LED Blue Key Status LED Yellow Key Status LED Keypad LED Descriptions Status LED Color Description Yellow Modifier Key Status Yellow Illuminated when the yellow modifier key is enabled. Blue Modifier Key Status Blue Illuminated when the Blue modifier key is enabled.
  • Page 36 To lock the modifier key On and type only numbers, symbols or special characters: 1. Press the yellow modifier key twice in rapid succession. 2. Press the number, symbol, or special character sequence. 3. Select the modifier key again to unlock the modifier. Example: Press and then to type the number 111.

  • Page 37: About The Audio Features

    3. Press the key one to three times in rapid succession depending on the position of the character illustrated on the key. Example: Press and then to type “C”. To access a function (e.g., F1 - F10): 1. Press the yellow modifier key. 2.

  • Page 38: Audio Settings

    1. Press on of the Volume buttons until the volume slider appears. 2. Tap to toggle between Vibrate, Off, and On. The status bar at the top of the screen indicates the active mode: • When Vibrate mode is active, appears.

  • Page 39: About The Cn80G Cold Storage Model Heater

    Setting Description Screen locking sounds Enable or disable an audio tone when the screen is locked. Charging sounds and Enable or disable an audio tone when the computer is charging. vibration Touch sounds Enable or disable audio sounds when you use the touch screen. Touch vibration Enable or disable vibrate mode when you touch the screen.

  • Page 40: How Automatic Mode Works

    How Automatic Mode Works Automatic heater management saves power since the heaters are automatically controlled by the system based on cold storage entry/exit detection. Cold Storage Entry Detection In Automatic mode, cold storage entry detection occurs when the computer sensors identify a drop in ambient temperature below the defined Heater enable temperature.

  • Page 41: How Manual Mode Works

    How Manual Mode Works Manual mode gives you full control over turning the heaters On or Off. When Manual mode is enabled, automatic cold storage enter/exit detection is no longer used to control the heater behavior. To turn the heaters On/Off, you must tap a button on the Heater screen in the Settings app.
  • Page 42 Heater Setting Description Duration: Heater Set the length of time (minutes) the heaters stay On at full power (100%) once the computer detects a quick rise in temperature (DeltaT value, see above). The default value is 5 minutes. Note: The heaters may turn Off before the timer has expired if a temperature reading indicates the computer is warm enough or you manually turn Off the heaters by tapping the heater icon once.

  • Page 43: Insert A Microsd Card

    Heater Setting Description Update Tap to apply changes made to settings. Default Tap to set the Heater settings back to their default values. Insert a microSD Card You can use a microSD card to increase file storage capacity or to install software. Honeywell recommends the use of Single Level Cell (SLC) industrial grade microSD or microSDHC memory cards with the computer for maximum performance and durability.
  • Page 44 6. Lift up on the edge of the battery and remove it from the computer CN80G Mobile Computer Series User Guide...
  • Page 45 7. Loosen the screws securing the card access door closed. Use the tab to lift the edge of the door. 8. Press down gently and slide the card holder away from the open access door. Lift the edge of the holder up. CN80G Mobile Computer Series User Guide...

  • Page 46: How To Transfer Files

    9. Insert the microSD card into the card holder with the contacts facing out. 10. Close the holder with the card inserted. Press down gently on the card holder and slide it into the locked position. 11. Close the card access door and tighten the screws. 12.

  • Page 47: Configure Usb Connection And Transfer Files

    Configure USB Connection and Transfer Files Note: The CN80G supports Hi-Speed USB communications (USB 2.0) with a maximum data transfer rate of 480 Mbps. 1. Connect the CN80G to your workstation. 2. On the CN80G, swipe down from the top of the screen to see the notifications. 3.
  • Page 48 Accessory Description Wired Vehicle Dock Use the wired vehicle dock to hold and charge the computer in a (Model CX80-VD/ vehicle environment. Provides hard-wired 3-pin power jack and USB PN CN80G-VD-SRH) host (DB15) receptacle (5V/500 mAh DC) for powering peripherals. Charges mobile computer battery in 4 hours or less.

  • Page 49: Chapter 2 - About The User Interface And Applications

    CHAPTER ABOUT THE USER INTERFACE AND APPLICATIONS Use this chapter to learn about the user interface and how to interact with the screen. You can also use this chapter to learn about the Honeywell applications on the computer. About the User Interface The Android operating system provides a touch-friendly and easy- to-navigate user interface.

  • Page 50: Navigation And Function Buttons

    Home Screen Features Item Description Notifications panel / Status icons to the left tell you when an app has sent notifications, such Status bar as an arriving message. System icons to the right display the current wireless and network connection state and battery level. Search bar Search the Internet or the computer using Google™.

  • Page 51: About Status Bar Icons

    About Status Bar Icons Status and notification icons show you the current status of your network, the battery, notifications, and sounds. Use the table below to understand some of the most common icons. Status and Notification Icons Icon Description Icon Description Pending alarm and alarm is set Vibrate mode is turned On...

  • Page 52: Restore Default Button Action

    Restore Default Button Action To restore the button default action: 1. Swipe up from the bottom of the Home screen to access all apps. 2. Tap Settings > Honeywell Settings > Key remap. 3. Tap the clean icon 4. Choose the remapped button(s) you want restored to the default setting. •...

  • Page 53: Customize The Home Screen

    Customize the Home Screen You can add application icons to any Home screen for easier access. 1. Swipe up from the bottom of the Home screen to access all apps. 2. Tap and hold the app you want to add. The computer vibrates, and then switches to a smaller view of the Home screen panels.

  • Page 54: About Screen Gestures

    About Screen Gestures Use your fingers or the stylus to manipulate icons, buttons, menus, the on-screen keyboard, and other items on the screen. • Tap to select something, toggle a setting On or Off, or activate a field for text entry.

  • Page 55: About Honeywell Applications

    About Honeywell Applications Honeywell applications help you troubleshoot and connect your computer to other devices and networks. Some of the applications in this table are located in the Power Tools app. To learn more about Honeywell Power Tools, go to sps.honeywell.com to download the Dolphin Power Tools User Guide.

  • Page 56: Applications You Can Download To The Mobile Computer

    Icon Application Description EZConfig EZConfig supports advanced customization and configuration of the hand held computer. EZConfig includes a standard XML editor and configuration barcode scanner feature. Wireless Tether Use to enable range tracking and customize out-of-range alerts for Bluetooth devices paired and tethered to your hand held computer.

  • Page 57: Unlock Developer Options

    prevent them from initiating unauthorized configuration changes. You can also use Honeywell Launcher together with Honeywell Enterprise Browser to create a single-purpose device configuration. If Launcher is not included on your computer model, you can download a trial version of the software for evaluation. After the evaluation period expires, you need to purchase a license.
  • Page 58 CN80G Mobile Computer Series User Guide...

  • Page 59: Chapter 3 - Use The Image Engine

    CHAPTER USE THE IMAGE ENGINE Use this chapter to understand how to scan barcodes, configure the scan settings, and capture images using the integrated image engine in the computer. About the Image Engine You can use the image engine in the computer as a scanner or camera. There are two engine options for the CN80: N6603 and EX20.

  • Page 60: Change The Scanner Settings

    You can find information on how to create custom applications for the computer in the Software Development Kit (SDK) available for download from the Technical Support Downloads Portal at honeywell.com/PSSsoftware-downloads. Once you create an account and enter the portal, navigate to Software > Software and Tools >...

  • Page 61: Restore Default Scan Settings

    Restore Default Scan Settings You can easily discard all changes you made to the Default profile and restore the default values. Note: When you choose the Restore all defaults option from any of the settings screens in a profile, all the settings in that profile return to their default values. 1.
  • Page 62 Setting Description Default Suffix Defines the string added after the decoded barcode data. None Substitutions occur within the Suffix string values. Substring Replacement Character Code ‘\’ Wedge as Keys List of character values to wedge as keys, represented as a 9, 10, 13 comma-separated list of decimal values.
  • Page 63 Setting Description Default Launch EZ Config Enable or disable special handling of EZConfig barcodes. Enabled Applies to EZConfig barcodes that are encoded with the Aztec symbology and contain specific header data. Corresponds to BarcodeReader property: PROPERTY_DATA_PROCESSOR_LAUNCH_EZ_CONFIG Data Intent Enables the reception and processing of barcode data Disabled without using an SDK or library Symbology Settings...
  • Page 64 Setting Description Default Decode Security Use this setting to control the reading tolerance of the decoder. Lower settings are more lenient when reading low quality barcodes while higher values are more strict. Decoder Set the amount of time in milliseconds that the scanner will Timeout timeout if a readable barcode is not found.
  • Page 65 Imager Settings You should not need to modify the Imager Settings. The Override Recommended Values setting is disabled by default. The recommended Imager Settings are designed to work in a wide range of environments and should only be modified if you have an advanced understanding of imagers.

  • Page 66: Add A Scan Setting Profile

    Add a Scan Setting Profile To create a scan setting profile for a custom app on the computer: 1. Swipe up from the bottom of the Home screen to access all apps. 2. Tap Settings > Honeywell Settings > Scanning > Internal Scanner. 3.

  • Page 67: Scan Barcodes

    4. Configure the button appearance. As you adjust the settings, the preview button updates. • Tap Select Button Size, and then choose Small, Medium, or Large. • Tap Select Button Color and then choose from seven color options. Default color is black. Tap a dot to select the color, and then select OK to confirm. •...

  • Page 68: About Scanning Configuration Barcodes

    3. Center the aiming beam over the barcode. Make sure the entire barcode is inside of the illumination frame. 4. Release the Scan button when the computer beeps, and the Scan Status LED briefly turns on. The barcode information is entered into the application in use. Note: Not all barcode symbologies are enabled by default.

  • Page 69: Change The Scan Demo Symbology Settings

    Note: In the Scan Demo app, not all barcode symbologies are enabled by default. If a barcode does not scan, the correct symbology may not be enabled. Change the Scan Demo Symbology Settings 1. In the Scan Demo app, tap in the upper right corner of the screen. 2.
  • Page 70 CN80G Mobile Computer Series User Guide...

  • Page 71: Chapter 4 - Use The Phone

    CHAPTER USE THE PHONE You can use the phone feature to make and receive phone calls as well as transmit data through wireless wide-area networks (WWANs). Note: Phone features are only supported on CN80G WWAN models (CN80L1N). About the Phone Phone features on the computer include a speaker and a microphone.

  • Page 72: Add Or Switch Between Network Carriers

    Add or Switch Between Network Carriers The SDR radio and dual SIM card slots in the CN80G WWAN model make it easy for you to add carriers and switch between them as needed. Use the Carrier Selection app to quickly change your WWAN radio network carrier. 1.

  • Page 73: Activate The Phone

    6. Select a cellular carrier. 7. Tap Apply and then OK to verify the change. 8. Tap OK again when the “Settings are saved” message appears. Under Current Config the active SIM slot appears with the carrier setting you selected. Activate the Phone You use a SIM card to activate the phone on your CN80G WWAN model computer.
  • Page 74 6. Slide the battery latch to the right. 7. Lift up on the edge of the battery and remove it from the computer CN80G Mobile Computer Series User Guide...
  • Page 75 8. Loosen the screws securing the card access door closed. Use the tab to lift the edge of the door. 9. Press down gently and slide the card holder away from the open access door. Lift the edge of the holder up. When using a UICC card for NFC Secure Element NFC link encryption, install the card in SIM slot 1.

  • Page 76: Make A Phone Call

    10. Insert the microSD card into the card holder with the contacts facing out. SIM 1 SIM 2 11. Close the holder with the card inserted. Press down gently on the card holder and slide it into the locked position. SIM 1 SIM 2 12.

  • Page 77: Answer The Phone

    • Select a number from the recent calls list 3. Tap call 4. To end the call, tap on the screen or keypad. Answer the Phone When you receive a phone call, the Incoming Call screen opens. If the caller telephone number is available, it appears on the screen.

  • Page 78: Make An Emergency Phone Call

    Make an Emergency Phone Call You can use the phone to make an emergency phone call even if the SIM card is missing from your phone. The phone shows no service but the call still goes through if you dial certain emergency numbers (e.g., 112, 911, 000, 08, 118, 119, and 999).

  • Page 79: Chapter 5 - Use The Camera

    CHAPTER USE THE CAMERA Use this chapter to learn how to take pictures and record videos with the color camera. About the Color Camera The CN80G comes equipped with a 13-megapixel color camera, 4K video with image stabilization, and advanced software features for enhanced exposure control for taking pictures and videos.

  • Page 80: Change Camera Settings

    4. Tap to take a photo. • To view the picture, tap the preview near the bottom of the screen. • To return to the Camera app, tap the Back navigation button. Change Camera Settings You can change the camera settings for best results when taking pictures. The camera settings are adjustable from within the Snapdragon™...

  • Page 81: Record A Video

    Record a Video This section explains how to record video with the camera in the computer. 1. Open the Snapdragon Camera app 2. Tap mode selection in the bottom right corner of the app. 3. Tap to select video. 4. Tap to begin recording video.
  • Page 82 CN80G Mobile Computer Series User Guide...

  • Page 83: Chapter 6 - Configure The Computer

    CHAPTER CONFIGURE THE COMPUTER Use this chapter to learn about the available methods for configuring your mobile computer. You can also use this chapter to learn how to configure network communications and wireless security. How to Configure the Computer You can configure many parameters on the computer such as the bar code symbologies the integrated scanner decodes, or the network settings.

  • Page 84: About The Structure Of The Settings App

    About the Structure of the Settings App Use this section to learn about the structure of the Settings app so you can find parameters quickly. A search field appears at the top of the screen when you open the Settings app to help you locate settings quickly. Note: The Settings app varies by computer model and OS version.
  • Page 85 Description Setting Connection Preferences Bluetooth • Turn the Bluetooth radio On or Off • Lists Bluetooth enabled devices in range when the radio is turned On • Connect to a Bluetooth Device • View and rename the computer • View the computer Bluetooth address Turn Near Field Communication (NFC) On or Off.
  • Page 86 Battery Note: Some settings in previous ODS versions can be found in Display. Setting Description Battery View current battery charge or charging status. Battery saver Turn the Battery saver feature On or Off and set when the feature automatically activates. •...
  • Page 87 Sound In the Settings app, select Sound to modify the audio settings. Storage In the Settings app, select Storage to view statistics on available and used storage space on the device and on any portable storage cards installed. Privacy In the Settings app, select Privacy to view permissions, account activity, and personal data Setting Description...
  • Page 88 Setting Description Google Location Allows the device to report location history to Google. A Google account History must be associated with the device to use this feature. Google Location Allows the device to share its location with anyone in the contacts list Sharing Security In the Settings app, select Security to view the latest Security scan results, security...
  • Page 89 Setting Description Battery Monitor View the battery charge status and battery information such as overall battery health, internal temperature, and serial number. Battery Optimizer View battery status and app usage information. Create and enable or disable a battery optimization profile that implements a group of settings to conserve power.
  • Page 90 Setting Description Scanning Configure the computer imager. To learn more, see Change the Scanner Settings on page 50. Smart sensor Configures the integrated motion detection sensors for advanced power management. Options include: Keep awake on motion, Wake on motion, and Face down suspend. Staging Hub Agent Use this agent and settings to connect the computer to the Honeywell Staging Hub Foundation software platform;...
  • Page 91 Setting Description Display Configure display features that may aid visual accessibility levels. • Adjust font size • Display size • Turn Dark theme on On/Off • Turn the Magnification feature On/Off • Set Color correction • Turn Color inversion On/Off •...
  • Page 92 Setting Description Advanced Reset options Select from the following reset options: • Reset Wi-Fi, Mobile & Bluetooth Use to reset all network settings, including Wi-Fi, Mobile data, and Bluetooth. • Reset preferences Use to reset app preference back to defaults: apps you disabled, notification changes, default app actions set, background data restrictions for apps, and permission restrictions.

  • Page 93: About Network Communications

    Setting Description Build number Displays the software build number. About Network Communications You can easily add the mobile computer to your wireless or wired data collection network. Connect the CN80G your computer using: • 802.11 a/b/g/n/ac radio communications. • Ethernet communications. •...
  • Page 94 • To remove a network from your saved list, tap and hold the network name and select Forget network. You can do this for networks you no longer use. • To modify a network from your saved list, tap and hold the network name and select Modify network.

  • Page 95: Connect To An Ethernet Network

    Connect to an Ethernet Network To connect the computer to an Ethernet network, you need a CN80G Ethernet Home Base or a CN80G Net Base. 1. Make sure the base is connected to your Ethernet network. 2. Place the computer in the base. 3.

  • Page 96: About Wireless Security

    Connect to a VPN Once a VPN profile is created, you can connect to the VPN at any time. 1. Swipe up from the bottom of the Home screen to access all apps. 2. Tap Settings > Network & Internet > Advanced > VPN. 3.

  • Page 97: About Certificates

    About Certificates You can use digital certificates to identify the computer for network access or authentication to servers. To use a certificate to identify your device, you must install it in the trusted credential storage on the computer. Android supports DER-encoded X.509 certificates saved in files with a .crt or .cer file extension.

  • Page 98: About Bluetooth Communications

    The trusted credentials screen has two tabs: • System shows Certificate Authorities (CA) certificates permanently installed on the computer. They can only be disabled. • User shows CA certificates you have installed yourself. You can remove these certificates. 4. Tap the name of the certificate to you want to disable or remove. The Security certificate screen appears.

  • Page 99: Rename The Computer And View File History

    The status icon changes from • To disconnect a paired device, tap the name of the paired device and then tap OK when the “Disconnect?” screen appears. Rename the Computer and View File History You can change the name of the computer to make it easier to identify when pairing with other Bluetooth enabled devices and view statistics about received files.
  • Page 100 3. If necessary, tap Off to toggle the Bluetooth radio On Connect a Bluetooth Scanner To connect to a Bluetooth scanner, the Bluetooth radio must be turned on and then scan a pairing barcode with the Bluetooth scanner. 1. Swipe up from the bottom of the Home screen to access all apps. 2.

  • Page 101: About Serial And Usb Communications

    About Serial and USB Communications You can use these Dolphin CX80 series accessories to transmit data to and receive data from another device through serial or USB communications: • Vehicle dock • Home Base • Ethernet Home Base • USB snap-on adapter USB Troubleshooting •...

  • Page 102: About Near Field Communication (Nfc)

    4. Select the type of tether to initiate: • Tap USB tethering. • Tap Bluetooth tethering. The devices is now sharing the computer data connection. Note: To stop sharing the connection, disconnect the USB cable, or tap USB tethering or Bluetooth tethering again to turn Off the feature.

  • Page 103: About Provisioning Mode

    4. Create an account if you have not already created one. You must login to download the software. 5. Install the Honeywell Download Manager tool on your workstation (e.g., laptop or desktop computer) prior to trying to download any files. 6.

  • Page 104: Staging Devices

    Once you have set up a configuration in the Wi-Fi Staging app on the server device, Wi-Fi staging will use that device as a hotspot and wait for a client to connect to it. The configuration will be distributed to the client device once communication is established between the client and the server device.
  • Page 105 Basic Configuration Basic configuration includes the most common system settings. 1. Launch the Wi-Fi Staging app on the server device by tapping Settings > Honeywell Settings > Wi-Fi Staging. 2. Tap Basic Configs to start the configuration wizard. 3. System language: Tap + to add a language. At least one language must be added.
  • Page 106 Configurations will be distributed to an client that connects to the server devices. Once the data transmission finishes successfully, the name and serial number of the configured client will display in the Wi-Fi Staging app on the server device, and the client device will skip the Android setup wizard.
  • Page 107 New Devices This section applies to new, out-of-the-box devices only. For existing devices, see the next section. 1. Set up a server device (see Set Up a Device as a Server on page 94). 2. Place the new devices to be configured within 1 meter (3 feet) of the server device and turn them on.

  • Page 108: Log Files

    Log Files Wi-Fi Staging saves a key process and exemption log on the device in the following directory: /sdcard/honeywell/Android/data/com.honeywell.wifistaging/Log/ This directory can be accessed through USB if Provisioning Mode is enabled. About Voice Wedge Voice Wedge is a voice-to-text conversation tool that can be triggered by a specified start word or key press event.

  • Page 109: Define Key Commands

    5. Use the keyboard to enter the associated package name, for example, “com.android.chrome”, then click OK. 6. To limit Voice Wedge to a specific activity within an app, tap App activity name and use the keyboard to enter the activity name, for example, “com.google.android.apps.chrome.Main”...
  • Page 110 CN80G Mobile Computer Series User Guide...

  • Page 111: Chapter 7 - Manage And Maintain The Computer

    CHAPTER MANAGE AND MAINTAIN THE COMPUTER Use this chapter to understand how to upgrade software, reset, and maintain the computer. About Software Updates Cyber security best practices include keeping your device apps and OS up to date. To help, Honeywell offers maintenance patches, security updates and operating system upgrades through our Honeywell Edge services.

  • Page 112: About Transferring Files Via Usb Connection

    About Transferring Files via USB Connection If you plan on using a USB connection to transfer the upgrade files to the mobile computer, make sure you set the USB connection to allow file transfers. To learn more, see Configure USB Connection and Transfer Files on page 37.

  • Page 113: Optional Microsd Card Method

    Optional microSD Card Method The CN80G comes equipped with a microSD card socket. You can install an upgrade from a microSD card you insert in the computer. Important: The CN80G must have power for the entire length of the upgrade process or it could become unstable.

  • Page 114: Install Ota Updates

    Install OTA Updates To use the HUpgrader to install an OTA update file downloaded from the Technical Support Downloads Portal: 1. Swipe up from the bottom of the Home screen to access all apps. 2. Tap Settings > Honeywell Settings > Provisioning mode. 3.

  • Page 115: Reboot (Restart) The Computer

    8. Tap the OTA update file. The computer examines the file, and then starts the installation. 9. Once the installation is complete (100%), select OK when prompted to Reboot the computer. The computer reboots and finishes the update. Reboot (Restart) the Computer You may need to reboot the computer to correct conditions where an application stops responding to the system.

  • Page 116: About Enterprise Data Reset

    About Enterprise Data Reset You can perform an Enterprise data reset if a Reboot did not improve the condition and all other troubleshooting methods have not resolved the issue. This method provides a clean configuration for troubleshooting by erasing all data from the Internal shared storage location on the computer.

  • Page 117: About Full Factory Reset

    About Full Factory Reset A Full Factory Reset should only be performed if you have exhausted all other troubleshooting options. This method reverts the computer back to the factory state by erasing all data in Internal shared storage and the IPSM Card storage locations on the computer.

  • Page 118: Repairs

    Repairs Repairs and/or upgrades are not to be performed on this product. These services are to be performed only by an authorized service center (see Customer Support). Maintenance Your device provides reliable and efficient operation with a minimum of care. Although specific maintenance is not required, the following sections describe periodic checks to ensure dependable operation.

  • Page 119: Appendix A - Specifications

    APPENDIX SPECIFICATIONS Computer Agency Information CN80G mobile computers meet or exceed the requirements of all applicable standards organizations for safe operation. The best way to ensure safe operation is to use the mobile computer according to the agency guidelines on the product regulatory sheet, quick start guide, and in this user guide.

  • Page 120: Physical And Environmental Specifications

    Physical and Environmental Specifications 1. Go to sps.honeywell.com. 2. Type CN80G in the Search box and then press Enter. 3. Select the Products tab. 4. Click the red arrow under the CN80G Handheld Computer description. 5. Select one of the following: •...

  • Page 121: N6603Er Imager Engine Reading Distances

    1D Symbologies 2D Symbologies Postal Codes Default Default Default UPC/EAN Disabled UPC-A Enabled UPC-E Enabled UPC-E1 Disabled Note: To learn about changing the symbology settings, see Change the Scanner Settings page 50. N6603ER Imager Engine Reading Distances The depth of field measurements were taken using these parameters: •...

  • Page 122: N6603Er Imager Engine Field Of View/Resolution

    N6603ER Imager Engine Field of View/Resolution Focus Horizontal Field Angle (degrees) 17.6 ±3.5° Vertical Field Angle (degrees) 13.5 ±3.5° Note: DPI can be calculated based on the following formula: Horizontal DPI = 832 pixels/width of horizontal field of view (inches) Vertical DPI = 640 pixels/width of vertical field of view (inches) EX20 Near/Far Image Engine Reading Distances The depth of field measurements were taken using these parameters:...
  • Page 124 Honeywell Inc 855 S. Mint Street Charlotte, NC 28202 sps.honeywell.com CN80G-A-EN-UG-01 Rev D 8/22...

This manual is also suitable for:

Cn80g-l0n 1f seriesCn80g-l1n 1f series

Table of Contents
