Specification
Element type
Tin Dioxide film
Cal. accuracy
±5% of reading
Re-calibration
2 years
Material:
Housing
Flame retardant ABS
Probe
PVC
Dimensions:
Housing
55mm x 90mm dia.
Probe
193mm x 25mm dia.
Protection
IP65
Ambient:
Temperature
0 to 50°C,
RH
0 to 100% RH (non-condensing)
Power supply
24Vac/dc (±10%) @ 45mA
Output
0-10Vdc
(0v = lo contamination)
(10Vdc = hi contamination)
Country of origin
UK
UK Sales Tel: 0845 345 7253

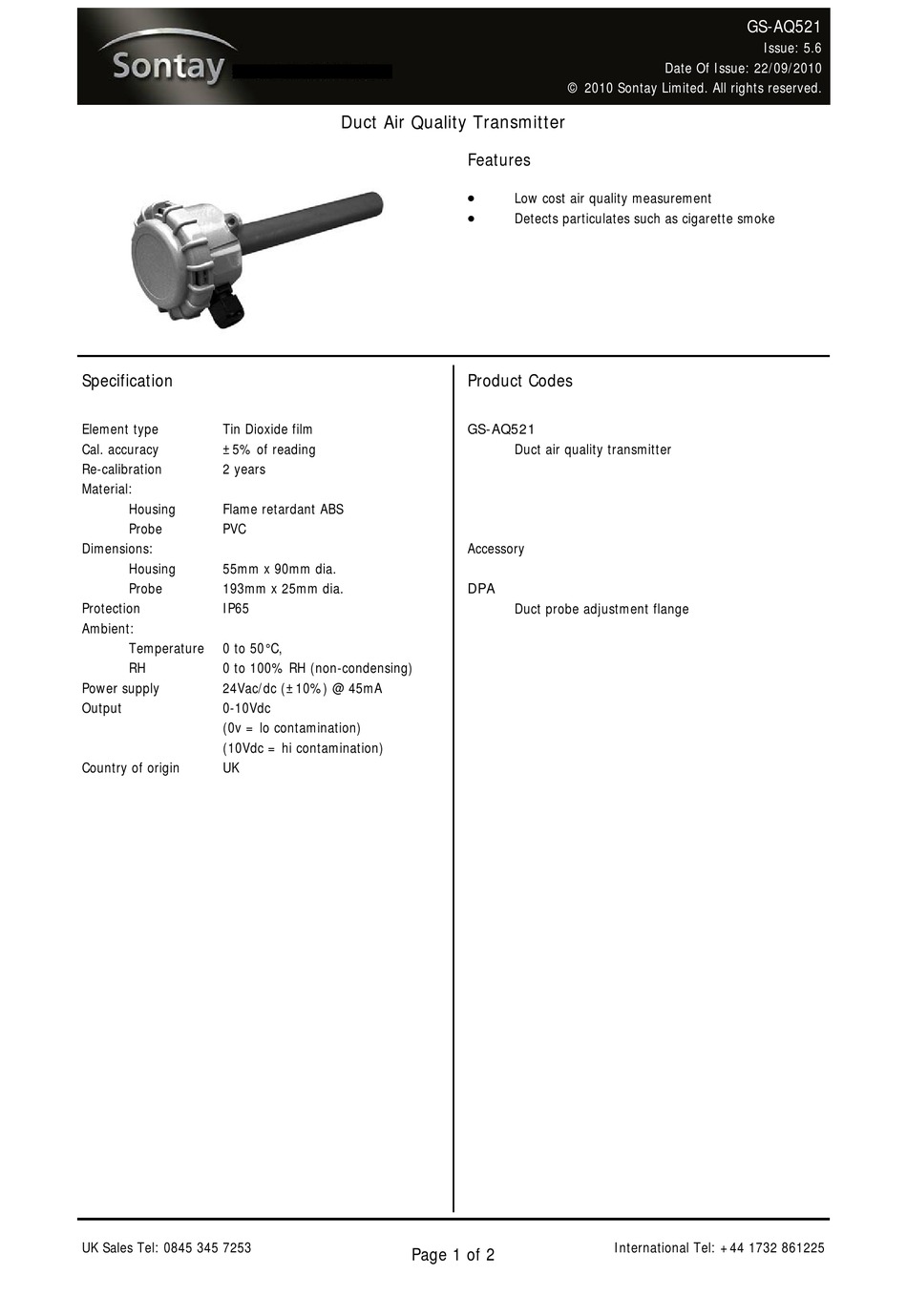

Duct Air Quality Transmitter
Features
Product Codes
GS-AQ521
Accessory
DPA
Page 1 of 2
Date Of Issue: 22/09/2010
© 2010 Sontay Limited. All rights reserved.
Low cost air quality measurement
Detects particulates such as cigarette smoke
Duct air quality transmitter
Duct probe adjustment flange
International Tel: +44 1732 861225
GS-AQ521
Issue: 5.6
Advertisement
Related Manuals for Sontay GS-AQ521
Summary of Contents for Sontay GS-AQ521
- Page 1 GS-AQ521 Issue: 5.6 Date Of Issue: 22/09/2010 © 2010 Sontay Limited. All rights reserved. Duct Air Quality Transmitter Features Low cost air quality measurement Detects particulates such as cigarette smoke Specification Product Codes Element type Tin Dioxide film GS-AQ521 Cal.
- Page 2 For the latest information and product updates, register at www.sontay.com Whilst every effort has been made to ensure the accuracy of this specification, Sontay cannot accept responsibility for damage, injury, loss or expense resulting from errors or omissions. In the interest of technical improvement, this specification may be altered without notice.
