Goudsmit S NF Series Installation And User Manual

Non-ferrous separator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

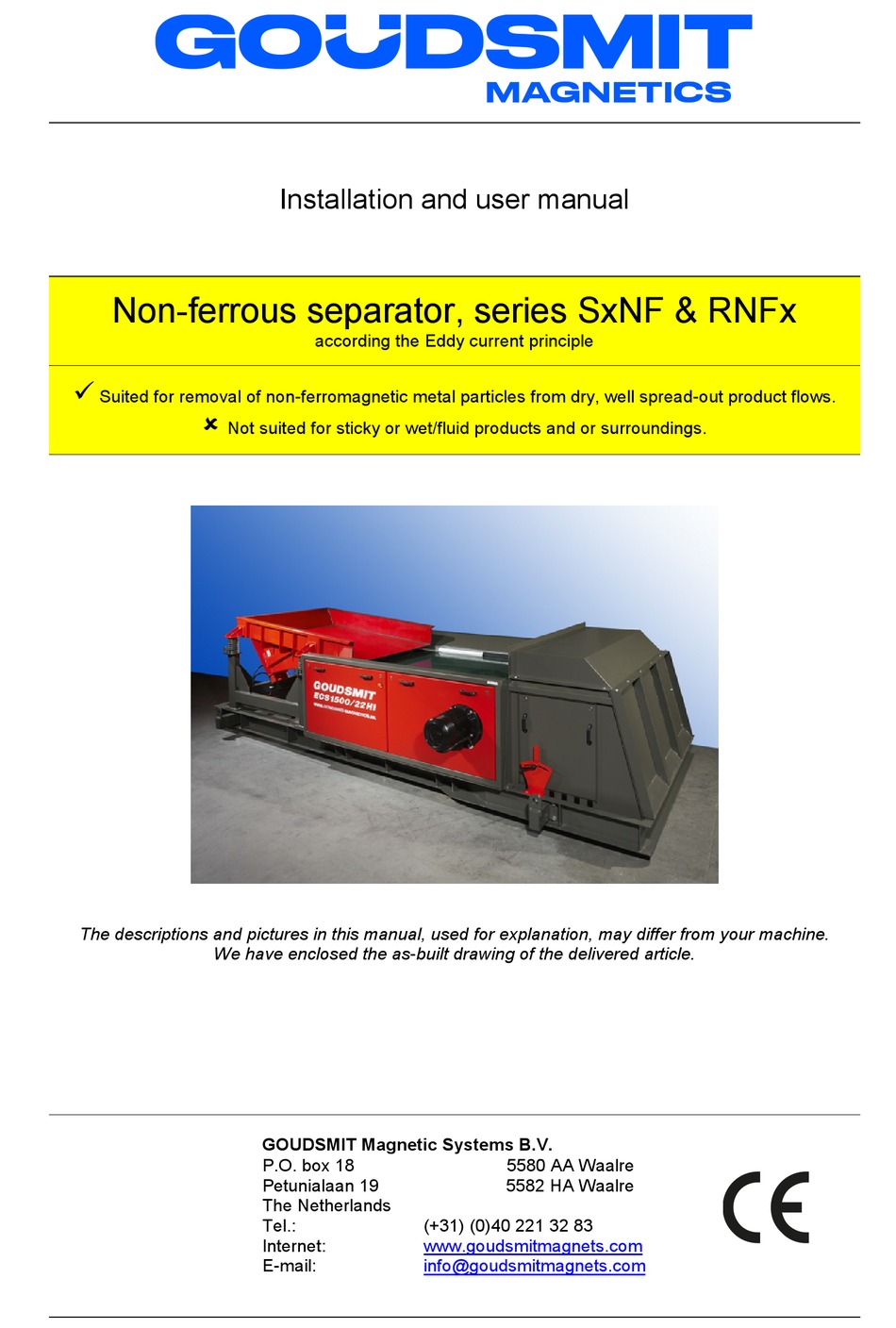

Non-ferrous separator, series SxNF & RNFx
Suited for removal of non-ferromagnetic metal particles from dry, well spread-out product flows.
Not suited for sticky or wet/fluid products and or surroundings.
The descriptions and pictures in this manual, used for explanation, may differ from your machine.
We have enclosed the as-built drawing of the delivered article.
Installation and user manual
according the Eddy current principle
GOUDSMIT Magnetic Systems B.V.
P.O. box 18
Petunialaan 19
The Netherlands
Tel.:
(+31) (0)40 221 32 83
Internet:
www.goudsmitmagnets.com
E-mail:
info@goudsmitmagnets.com
5580 AA Waalre
5582 HA Waalre

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the S NF Series and is the answer not in the manual?

Questions and answers

Related Manuals for Goudsmit S NF Series

Summary of Contents for Goudsmit S NF Series

  • Page 1 Not suited for sticky or wet/fluid products and or surroundings. The descriptions and pictures in this manual, used for explanation, may differ from your machine. We have enclosed the as-built drawing of the delivered article. GOUDSMIT Magnetic Systems B.V. P.O. box 18 5580 AA Waalre...

  • Page 2: Disclaimer

    It is prohibited to copy any content, images or other components it contains. This manual may not be duplicated in any manner whatsoever and may not be transmitted and/or made available on a network, except with the prior written permission of Goudsmit Magnetics Group B.V.. Page 2...

  • Page 3: Version Overview Of Standard Manual

    Version Date Description 02-2006 First version. 06-2007 1. Complete renewed version in general Goudsmit user manual style. 2. Control part rewritten to current situation. 08-2007 Updated after comparison of English, Dutch and German manuals. 05-2008 • Remarks added regarding high speed bearing grease for SNL bearing blocks of the magnet roller.

  • Page 4: Introduction

    If you have any queries or require further explanation regarding any subject related to the machine, please do not hesitate to contact GOUDSMIT Magnetic Systems B.V. All technical information contained in this manual, together with any relevant drawings and technical descriptions we supply, remain our property.

  • Page 5: Table Of Contents

    Table of contents Table of contents Disclaimer ....................................2 Version overview of standard manual ............................. 3 Introduction ....................................4 Table of contents ..................................5 General ...................................... 6 Ferromagnetism ................................... 6 Conditions of supply and warranty ............................7 Delivery ....................................8 General ..................................

  • Page 6: General

    General General This user manual contains information for the correct operation and maintenance of your device. It also contains instructions to avoid possible injuries and serious damages, and to allow a safe and as trouble- free functioning of the product as possible. Read this manual thoroughly before putting the device into operation, familiarise yourself with the operation and control of the device and follow all instructions precisely.

  • Page 7: Conditions Of Supply And Warranty

    The conditions of supply are the “General Conditions for the supply and erection of mechanical, electrical and electronic products” (SE01), published by Orgalime, in Brussels. These conditions can also -if desired- be requested by writing to Goudsmit Magnetic Systems BV, as also mentioned in our written quotation.

  • Page 8: Delivery

    Completeness of the delivery/deliveries, the absence of anything • (additionally) ordered. Contact GOUDSMIT Magnetic Systems B.V. in the event of any damage and/or mistaken delivery. Identification plate On the device an identification plate can be found. The information is necessary for service.

  • Page 9: Safety

    Safety Safety Regularly check that all warning pictograms are still present and legible, and clean if necessary. Make sure that new pictograms are applied at their correct locations if they have been lost or damaged. General The device is provided with safeguards where necessary. Make sure every person who comes in contact with the device, wears adequate personal protection (overalls, safety glasses, hearing protectors, helmet, steel-toed safety shoes etc.).

  • Page 10: Danger Of Magnetic Field

    Safety Danger of magnetic field The magnets generate a powerful magnetic field that strongly attracts ferromagnetic (Fe) materials. Always take into account that these materials may suddenly be drawn towards the magnet, very powerfully. This applies to steel workbenches and steel tools, but also to Ferromagnetic materials carried on your person, such as coins in your wallet or your keys.

  • Page 11: Moving Parts

    Safety Moving parts The conveyor belt and rollers are safeguarded. When however the protections are removed for cleaning, inspection, or maintenance, there is danger of getting jammed between these moving (rotating) parts. Danger getting jammed between moving parts!  Parts pointing out The NF separator has an open and moving system, like the conveyor belt and the vibratory feeder.

  • Page 12: Danger Of High Voltage

    Safety Danger of high voltage When installing and electrically connecting the device, make sure the activities are performed by qualified personnel. Switch off the electrical power supply before performing activities to the device! Danger – Risk of an electric shock! Always use the main power switch (on the control box) to switch off the installation in the event of a dangerous situation.

  • Page 13: Device Description

    Fe parts The NF separator is NOT suited for separating ferromagnetic particles. GOUDSMIT Magnetic Systems B.V. recommends separation of tin and ferromagnetic materials, before feeding it through the NF separator. This improves the results of non-ferro separation. Also, feeding a material flow containing Fe particles over the NF separator, increases wear, especially on the conveyor belt.

  • Page 14: Deliverable Specials

    Device description Deliverable specials Vibratory feeder Most NF separators are delivered with a vibratory feeder, it spreads the product equally over the conveyor belt and it will improve the separation. Drum Magnet A drum magnet may be included to separate ferromagnetic materials from the product flow. If included, regularly check for wear on the drum exterior and the separation flap.

  • Page 15: Drum Magnet - Principle Of Operation

    Device description Drum Magnet – Principle of Operation Product inlet Carrier Magnet Rubber segment slat Product transport around drum Separation splitter Product outlet Fe outlet The drum consists of a stationary magnet segment and a stainless steel non-magnetic shell. • The drum shell is driven by a motor and resolves in the product.

  • Page 16: Drum Magnet (Re-)Adjusting The Magnet Segment

    Device description Drum Magnet (Re-)Adjusting the magnet segment Clamp bush bolts Magnet segment 36 mm Separation segment Splitter for wrench We have already mounted the magnet segment in the correct position. It will therefore probably not be necessary to re-adjust it. If however you have a bad separation because all Fe parts fall down before they are above the Fe outlet, then you will have to rotate the magnet segment to the correct position.

  • Page 17: Eddy Current Principle

    Device description Eddy current principle The separation process of the NF separator is based on the so called “Eddy current principle”. If conductive materials are subjected to a very fast alternating magnetic field, a current will be generated. These currents are called Eddy currents. These currents generate a magnetic field, opposite to the alternating magnetic field of the magnet roller (the source magnet).

  • Page 18: Sensitivity Of Metals For Non-Ferro (Eddy Current) Separation

    5. Angle of the rotor 6. Belt speed Small parts and particles are very difficult to separate, they need higher frequencies / rotational speeds, than large parts. Goudsmit NF separators have rotational speeds of 1500 up to 4000 rpm. Page 18...

  • Page 19: Sigmatek Touchscreen Control

    Device description Sigmatek touchscreen control The NF separator (EC separator) may be delivered with a built-in touchscreen. The main page shows the configured separator. This may be different to the configuration shown here. The vertical column on the left-hand side shows the instructions and the bottom horizontal row generally shows control buttons.
  • Page 20 Device description Login level 0 is only for monitoring and starting or stopping the machine We see on the screen that the machine is on “local” control; the “local” signal lamp is green. The machine has not yet been started, the signal lamps for Magnet rotor, ECS-belt, Drum Magnet and Vibrator are still red.

  • Page 21: Emergency Stop

    Device description Example: “Speed” button To change speed settings, press the “Speed settings” button and login to level 1. Then press the yellow speed display Speed setting button The keypad appears on which you can set the speeds, below in grey, it shows the speed bounds. Simply type in the speed you require (within the speed bounds) and press enter.

  • Page 22: Construction Nf Separator

    Device description Construction NF separator Optional vibratory feeder unit Conveyor belt Optional drum Separator unit magnet Belt tension unit Frame Dirt scraper NF magnet roller Drawing: NF separator incl. vibratory feeder and drum magnet 1. Vibratory feeder (advised). This is spring supported and mounted on a sub frame. It vibrates with an adjustable amplitude.

  • Page 23: Non-Ferro (Nf) Separator

    Device description Non-ferro (NF) separator The NF separator has a double roller construction, around which the conveyor belt runs. • One is the magnet roller, the other the return and / or tensioner roller. • The rotational speed control of the magnet roller is mostly set to about 3000 rpm for a 22 pole magnet roller version.

  • Page 24: Installation

    Installation Installation Construction parts Do not use ferromagnetic materials for rollers and/or construction parts of your system within the magnet field of the NF separator installation. These parts may be magnetised and as a consequence negatively influence the separation result. Placing, transporting or moving the device Installation components are mounted on the base frame.

  • Page 25: Installation Safety

    Installation Installation safety Particles leaving the NF separator need to be captured and transported in a safe manner. Make sure there are sufficient measures, to prevent unqualified personnel from approaching the device. The NF separator is provided with hatches to shield operators from moving parts. Hatches must first be unlocked and can then be lifted off by using the handles.

  • Page 26: Electrical Connections General

    Installation Electrical connections general Make sure that the electrical power supply is switched off while you work on the device. Make sure that all electrical connections are made by qualified personnel and conform to all the applicable standards. Check that the device is suitable for connection. Check all connections regularly! Page 26...

  • Page 27: Conveyor Belt

    Installation Conveyor belt The devices/installations from Goudsmit Magnetic Systems BV are delivered with the conveyor belt aligned and correctly adjusted belt tensions with no product on. Always check them before operating the device with the product on! Why check belt alignment and belt tension? •...

  • Page 28: Start-Up

    Start-up Start-up Checks before and during start-up During start-up, it is essential to follow the safety notes in this user manual! Before start-up, make sure that: The device or the installation has no damages or malfunctions. • All connections (electrical, mechanical, pneumatically) have been made properly. •...

  • Page 29: Maintenance

    Goudsmit Magnetics for advice. Greasing with SKF LGMT2 grease The bearing systems applied by GOUDSMIT all contain grease-lubricated bearings that are protected against dirt and humidity. These use SKF LGMT2 grease. There are two sets of bearings that need to be greased, a large outer tube bearing and a smaller rotor bearing.
  • Page 30 Maintenance Grease nipple small bearing Grease nipple Large bearing Greasing the large bearings (lower nipple position) Grease the nipple once a week or every 100 hours as much as is required. (A dusty environment requires more frequent greasing) Do not grease too much however, as the seals may be pushed out of their seats. If possible, grease when running.

  • Page 31: Motor Reductor

    Maintenance Motor reductor De-energise the motor and make sure it cannot be switched back on without your knowledge. Wait until it has cooled down – DANGER FOR BURNING! Regularly check if the motor produces more noise than normal, or if it generates more heat than normal. If that is the case, find out what the cause is and solve the problem(s) as soon as possible to prevent (further) damage.

  • Page 32: Conveyor Belts

    Conveyor belts Conveyor belts Inspect if the belt(s) and magnet roller are free of metal particles every day. Keep the installation as clean as possible, to prevent contamination between belt and roller. Regularly inspect the side dust flaps. Change the belt if it is damaged. When doing this, also inspect the magnet roller(s) and other accessible areas of the device.

  • Page 33: Replacing Feeder Conveyor Belt

    Conveyor belts Replacing feeder conveyor belt Removing feeder conveyor belt Switch off the main switch and perform Lock Out Tag Out, see LOTO on page Note: Ask for assistance of colleague(s) when removing the feeder conveyor belt. 2. Remove the cover (3) and remove the bolt behind it.
  • Page 34 Conveyor belts 9. Adjust the tensioners on both sides to the lowest setting. 10. Unlock the lock of the feeder belt change beam. 11. Slide out the feeder belt change beam to its maximum position. 12. Attach a hoist crane with a lifting strap to the beam.
  • Page 35 Conveyor belts Installing feeder conveyor belt Note: Ask for assistance of colleague(s) when installing the feeder conveyor belt. Make sure that the feeder belt change beam (2) is extended to its maximum position. Place the feeder conveyor belt around the feeder belt change beam.
  • Page 36 Conveyor belts 12. Place the motor on the drive roller and install both attachment bolts (6). 13. Place the cover (7). 14. Check/correct the tension of the belt, see the chapter “Checking belt tension” on page 43. 15. Check/adjust the alignment of the belt, see the chapter “Checking belt alignment”...

  • Page 37: Replacing Eddy Current Conveyor Belt

    Conveyor belts Replacing Eddy current conveyor belt Removing Eddy current conveyor belt 1. Switch off the main switch and perform Lock Out Tag Out, see LOTO on page 12. Rotate both locks (1) a quarter of a turn to unlock them. Remove the cover (2).
  • Page 38 Conveyor belts Remove the guide roller: - Remove the attachment bolts (7). - Remove the guide roller (8). Repeat step 5 for the other side of the device. Adjust the tensioners (5) on both sides to the lowest setting (arrow). Attach a hoist crane with lifting strap through the cover frame (6).
  • Page 39 Conveyor belts 13. Both supports (3) of the inner frame have to be removed, so extra support is needed. Note: Two different versions have been produced, either the device has a moveable beam in its frame or a special tool needs to be attached to the frame.
  • Page 40 Conveyor belts Installing Eddy current conveyor belt Note: Three types of eddy current conveyor belts are used, only one of those types (rubber) has a marker. If the belt has a marker (arrow), place it with the arrow pointing in the direction of rotation. When applicable, make sure that the marker points in the direction of rotation.

  • Page 41: Adjusting Belt Alignment

    Conveyor belts Place the belt guide rollers on the frame. Install the bolts (6) hand-tight. 10. Align the wheel of the guide roller (5) so the guiding snare of the belt falls in the wheel. 11. Make sure distances C and D are equal and tighten the bolts (6).

  • Page 42: Checking Belt Tension

    Conveyor belts Run the belt, and when distances D and E are approximately the same increase the length (A) again with the counted number of turns. Tighten both locknuts (1). Checking belt tension Check the correct belt tension. If the belt tension is too high, extra stress is placed on the bearings in the magnet roller and return roller. General rule, if the roller rotates continuously, the tension is as it must be.

  • Page 43: Checking Belt Alignment

    Conveyor belts Checking belt alignment Check the alignment of the belt(s) regularly (minimum daily), while the device is in operation. If the alignment of the belt is incorrect, the belt as well as the magnet roller will show more wear than usual.

  • Page 44: Malfunctions/Service

    Improper handling of the magnet device may lead to damages. Potential damage to body and/or property! • Any repairs to GOUDSMIT magnet devices must be performed by qualified personnel only. • Be aware that permanent magnets attract ferromagnetic material with great force when it gets in reach of the magnetic field ...

  • Page 45: Spare Parts

    Spare parts Spare parts As a result of the robustness and quality of GOUDSMIT magnetic systems products the device possesses high operational reliability. WHEN however a specific component requires replacement, the correct component can be ordered by quoting the type number stated on the identification plate or on one of the drawing(s) added to this user manual in the added data sheet.

  • Page 46: Storage And Dismantling

    Storage and Dismantling Storage and Dismantling Storage If the device will not be used for a long period of time, we advise to store the device in a dry, safe place and to conserve fragile and/or sensitive parts. Dismantling / scrapping On scrapping and/or disposal of the device’s parts separately, take into account the different nature and dangers of the components (magnets, iron, aluminium, electrical parts, insulating materials, etc.) and ensure safe disposal.
