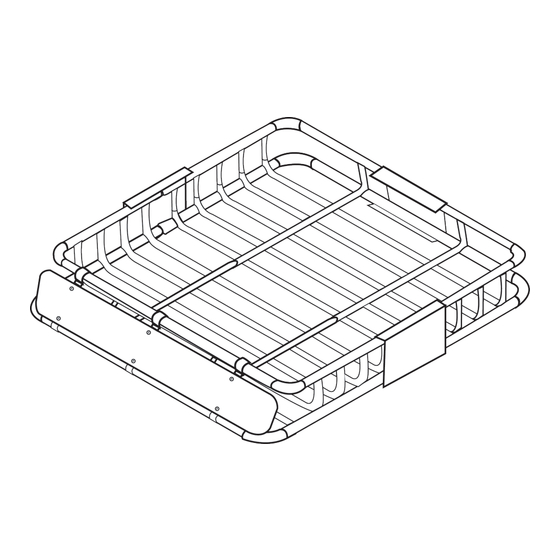

Roof Rack Cargo Carrier
OWNER'S MANUAL
WARNING:
Manufacturer and seller expressly disclaim any and all liability for personal injury, property
damage or loss, whether direct, indirect, or incidental, resulting from the incorrect attachment,
improper use, inadequate maintenance, unapproved modification,or neglect of this product.
Item# 005-TH-50071
Advertisement
Table of Contents
Related Manuals for ARKSEN 005-TH-50071
Summary of Contents for ARKSEN 005-TH-50071
- Page 1 OWNER’S MANUAL WARNING: Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or loss, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, inadequate maintenance, unapproved modification,or neglect of this product. Item# 005-TH-50071...
- Page 2 owner’s manual Thank you for purchasing our product. This manual covers operation and maintenance information about the product. Read carefully and understand all instruction before using the product. All information in this publication is based on the latest product information available at the time of approval for printing.
- Page 3 Do not carry any flammable or combustible items on the rack. • Use the roof rack according to your state, or local vehicle regulation. SAVE THESE INSTRUCTIONS SPECIFICATION Model Number 005-TH-50071 Overall Dimension 43” x 39” x 6” Max. Load Capacity 150 lb U-bolt Spacing...
- Page 4 owner’s manual PACKAGE CONTENT Washer Wing Nut Spacer U-Bolts Bracket Top Plate Foam Padding Nuts 16 mm Screws 35 mm Screws Side Fairing Back Fairing Rear Basket Front Basket Front Fairing Top Clip Bottom Clip Allen Wrench...
- Page 5 owner’s manual ASSEMBLY INSTRUCTION • Slide the basket assembly together with the side fairing covering the joins. • Secure the assembly using the provided screws through the side fairing to the basket frame.
- Page 6 owner’s manual ASSEMBLY INSTRUCTION (BASKET INSTALLATION) Top Clip (smaller) Washer Short Screws Long Screws Spacer Bottom Clip (larger) • Assemble the front fairing to the basket. • Install the clip on the rack. The smaller clips fit on the top and the larger clips fit on the bottom. •...
- Page 7 owner’s manual ASSEMBLY INSTRUCTION • The rack can only be installed on vehicles with mounting rail and cross bar. NOTE: Check with your vehicle dealership for compatible mounting rail if necessary. • Position the saddle away from the center of the rack for even weight distribution. Align them to the crossbar on your vehicle.
