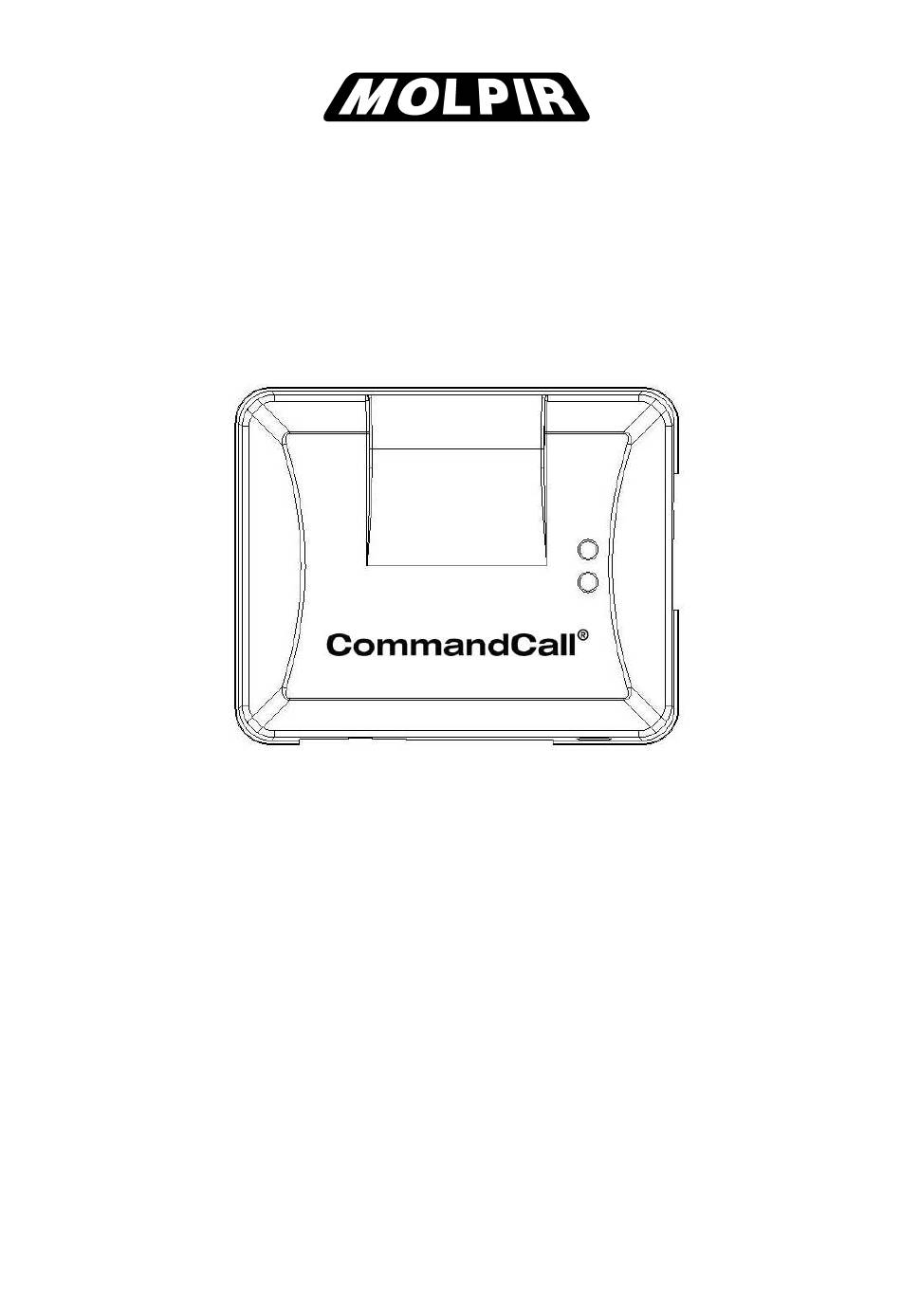

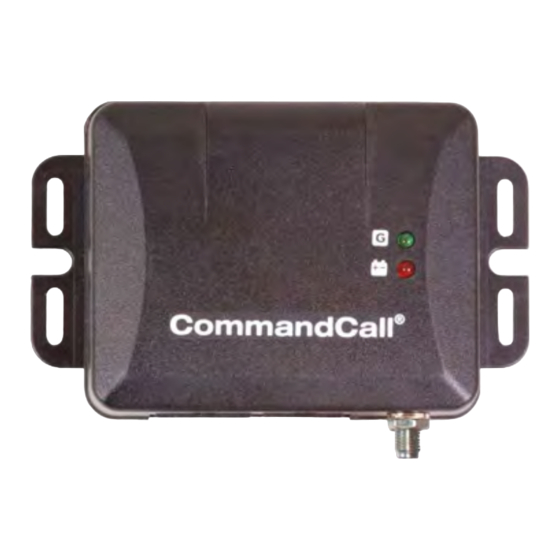

- Page 1 ® CommandCall GSM communication module User Installations Manual & 206300322701 Order Number SW version 3.19 & 3.20...
- Page 3 Dear user, many thanks for choosing CommandCall CC2 unit. We believe this unit will fulfil your needs and expectations. Please leave ComamndCall installation into the vehicle to authorised Installation Centre as it must be connected with other equipment of the vehicle (independent heater, alarm, ...).
-
Page 4: Table Of Contents
Contents 1. General description ............ 2. Unit control ............ 2.1. Switching ON the heater by phone call ringing ............ 2.2. Control via SMS commands - basic functions ............ 2.2.1. switch OFF heater / ventilation ............ 2.2.2. switch ON the heater for preset time ............ -
Page 5: General Description
° C or ° F, ...). CommandCall CC2 memory can store up to 6 so called VIP phone numbers with granted special rights for system control. VIP users can switch heater/ventilation by phone call ringing and they do not need to use password in SMS commands or in tone dial phone call. -
Page 6: Unit Control
All parameters except PIN code of SIM card may be changed / set during standard operation by specific SMS command. Control by phone call is done through 2 way communication, when CommandCall CC2 delivers voice messages to the user and accepts user’s commands given by pressing phone buttons during phone call. -
Page 7: Control Via Sms Commands - Basic Functions
In the case of switching ON the heater (ventilation) by phone call ringing no real phone connection is established and thus no fees are applicable / paid to mobile operator. 2.2. Control via SMS commands - basic functions Format of SMS commands is fixed in form: „password“ „command code“ „command parameter“, while „password“... -
Page 8: Switch On The Ventilation For Preset Time
Confirmation SMS is sent to the user only in the case it is enabled by activating checkbox No. 4. For SMS message construction are valid conditions . The length of heating period is always shown in this message. After HTP minutes expiration heater is automatically switch OFF. In the case HTP=999 then heating is switch ON for unlimited time and confirmation SMS „Heater ON unlimited, ±... -
Page 9: Switch On Heater / Ventilation For Given Time
2.3. Heater control by phone call with tone dial functions Control by phone call with tone dial functions is made as 2 way communication where CommandCall CC2 plays voice messages to user and accepts user commands by pressing phone buttons during phone call. -
Page 10: Heater Control By On/Off Push Button
Pressing any other button than 0, 1 to 5 is evaluated as invalid command and system requests to input command again. If user inputs 3 times invalid command in the sequence then phone call is terminated. In the case checkbox No.24 is activated and during phone call was given command „3“ then immediately after phone call termination Status SMS will be sent to the user (caller phone). -
Page 11: Heater Control By External Clock
For checking (reading) parameters values are used specific SMS commands returning actual value of requested parameters. CommandCall CC2 uses following parameters: P1 to P6 - phone numbers with special rights, so called VIP numbers... -
Page 12: One Parameter / Phone Number / Checkbox Setting Or Modification
- language of voice messages for tone dial phone calls, range: 1 to 14; whole numbers only CommandCall CC2 uses internal format of decimal numbers with decimal point and sent SMS reports also contain decimal point as separator of whole and decimal part of the numbers. -
Page 13: All Single Checkboxes Setting
T5, T6, T7, T9, T10, T11 will not be sent at all and when short circuit appears on CommandCall CC2 outputs then SMS message “Short circuit” will be send only to the first VIP phone number. -
Page 14: Password Setting
Example: xxxx680 shows actual setting of all parameters, xxxx is user password. SMS command xxxx681-HTP=mmm,AP=s.s,APH=sss,CBV=vv.v,VS=sss,PTD=dd,PTH=hh,PTM=mm, UST=±ttt.t,TS=sss,UST1=±ttt.t,UST2=±ttt.t,TS1=sss,LANG=ll, (xxxx is user password) sets all parameters to given values and sends confirmation SMS „681 OK“. Confirmation SMS is sent to the user only in the case it is enabled by activating checkbox No.17. Example: xxxx681-HTP=20,AP=2.0,APH=30,CBV=12.7,VS=5,PTD=14,PTH=00,PTM=00,UST=23.0, TS=30,UST1=5.0,UST2=-5.0,TS1=30,LANG=3 2.6.6. - Page 15 Single checkboxes (S1 to S28) Function of checkbox Send SMS when heater is switched OFF by SMS command Send SMS when heater is switched OFF by external clock Send SMS when heater is switched OFF by ON/OFF push button Send SMS when heater is turned ON by SMS command Send SMS when heater is turned ON by phone call ringing Send SMS when heater is turned ON by external clock Send SMS when heater is turned ON by ON/OFF push button...
-
Page 16: Basic Commands Memo Card
CommandCall CC2 after processing specific event (pressing ON/OFF push button, switching the heater ON or OFF by external clock, signal received from the car alarm, periodical test timeout, ...) sends SMS report relevant to performed activity. SMS reports with “single” checkbox (SMS reports No.: 2, 3, 6, 7, 10 to 13) are sent to the first phone number stored in VIP phone numbers list. -
Page 17: Alarm States Processing
3.3. Paging of alarm states CommandCall CC2 is not car alarm, this device is a GSM communication module transporting commands and reports for control of independent heater in the vehicle. It is possible to connect car alarm outputs and external device alarm output to CommandCall and then CommandCall CC2 takes in consideration also these signals and sends relevant information to the user. - Page 18 External device alarm After triggering alarm of external device installed in the vehicle CommandCall CC2 sends SMS report “External device trigger” to the phone number stored as the first one in triple checkbox T2 and than makes a phone call to this number.
-
Page 19: Indication Of Reaching Limit Temperatures
3.4. Indication of reaching limit temperatures CommandCall enables to measure actual in car temperature and to compare it with 3 stored temperature limit values UST, UST1 and UST2. UST is processed in the system as independent limit temperature value. System monitors actual temperature, reaching limit value UST and the direction of temperature change. -
Page 20: Indication Of Car Battery Voltage Decrease Under Preset Limit
In heating mode: when temperature decreases below UST2 for longer time as TS1 value then heating is switched ON. Indication LED in ON/OFF push button will lit and actual thermostat status is set to "1". This is till actual temperature cross over UST1 for time longer than TS1 value. In this moment thermostat will temporarily switch OFF heating, indication LED will flash slowly (in cycle: 2 seconds ON and 2 seconds OFF) and thermostat status is changed to "0". -
Page 21: Optional Outputs Activation
hours and minutes. These values can be freely combined in allowed ranges, for example SMS report sending can be repeated every 5 days and 14 hours and 23 minutes (of course it is necessary to set up meaningful time period). Note: System RESET will clear the counter of elapsed time from last SMS report sent to the user. -
Page 22: Trouble Shooting
ON (1) OFF (0) D - Temp. interval left downwards CommandCall CC2 answers to the user request by sending SMS report to the phone number from which original request / command was sent to CommandCall. 4.2. Trouble shooting Actual status... -
Page 23: Technical Specification
4.3. Technical specifications: Model: CommandCall CC2 DC power (auto sensing) 12 / 24 V DC power range 9 - 35 V Average current draw (GSM online) ≤ 6 mA Working temperature range - 35 to + 80° C Antenna connector... - Page 24 September 28, 2007 under Approval No. E27*10R-02*1199*00 and EC type-approval No. e27*72/245*2006/96*1011*00. For this product following marks were allotted: Copyright © 2009 - 2010, MOLPIR s.r.o. All rights reserved - it is prohibited to copy, reprint or to circulate any part of this Manual without prior written consent of the author.
