Summary of Contents for F5 Paint Shaker

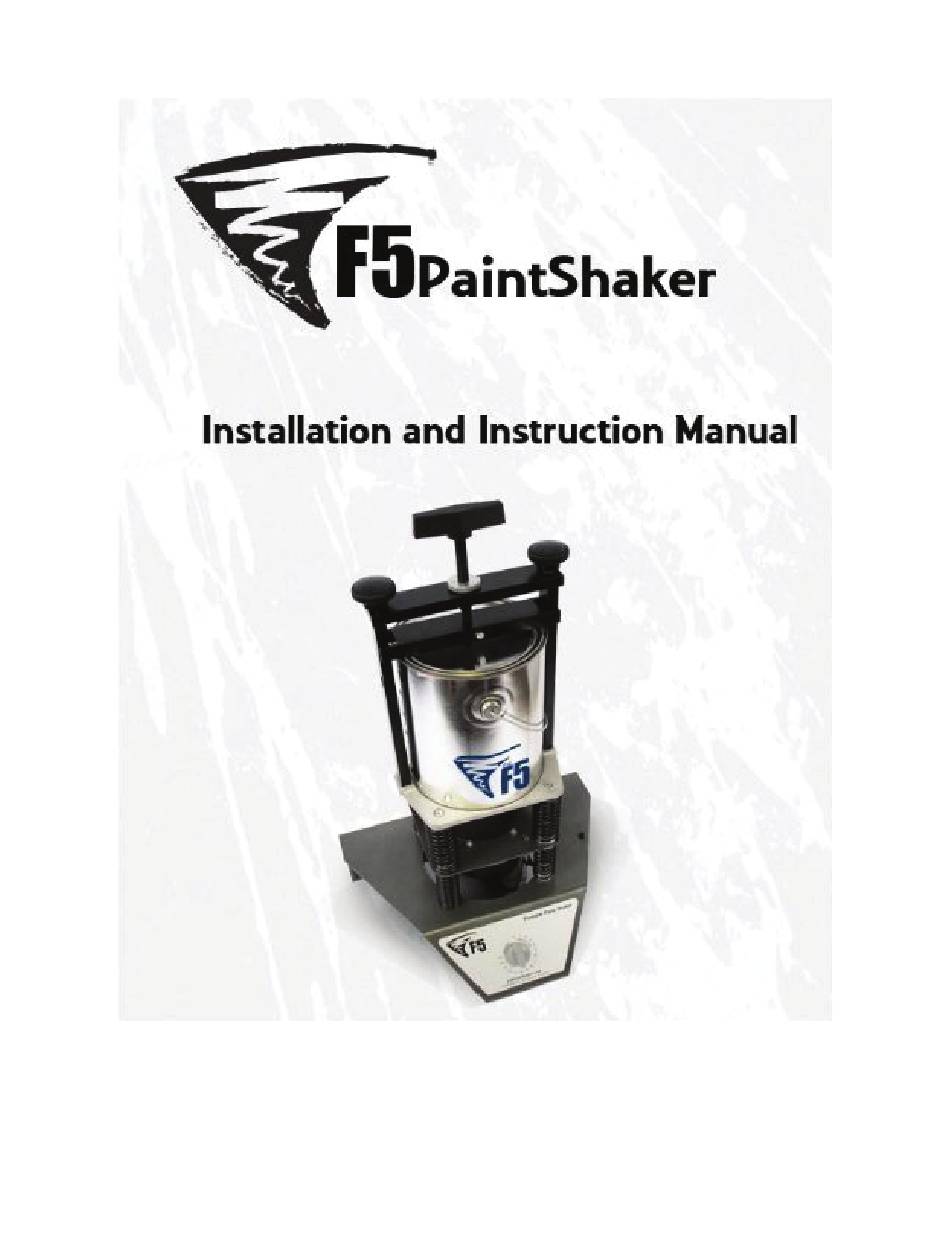

- Page 1 F5 Paint Shaker 877-862-7049 www.F5PaintShaker.com...
- Page 2 F5 Paint Shaker Parts Diagram: Holding Down Bolt Jam Nut Fixing Bolt Adapter Plate Right Side Support Plate Left Side Support Plate Spindle Batten Pull Off Spring Lock Pin Support Plate for Plate Can M8 Inner Hexagon Screw Bonnet Fixed Block for Spring #3...
-
Page 3: Initial Machine Setup
3. Plug in the cord, making sure it is not in the path of any obstructions. 4. Familiarize yourself with the operating instructions, and place them where you can see them while operating the machine. Fig. A: Hole Located on Right Side F5 Paint Shaker 877-862-7049 www.F5PaintShaker.com... - Page 4 Fig. B: F5 Paint Shaker 877-862-7049 www.F5PaintShaker.com...
- Page 5 4. Rotate the timer switch (Part #30) to start the motor. Set the timer for two minutes longer than intended mix time. User trial and error with varying times to find your optimal mixing time. Fig. C: Clamping Screw Lock Nut Hole in Bar Locking Holding F5 Paint Shaker 877-862-7049 www.F5PaintShaker.com...
- Page 6 3. Keeping the top bar between the handle and the spout, slide the can onto the platform of the machine. 4. When the can is centered evenly on the platform, tighten the knobs until the can is securely clamped. F5 Paint Shaker 877-862-7049 www.F5PaintShaker.com...
- Page 7 Fig. E: Slot In Bar Diagram for Pint Cans (Fig. F) and Aerosol Cans (Fig. G): Fig. F: Fig. G: F5 Paint Shaker 877-862-7049 www.F5PaintShaker.com...
- Page 8 2. Adjustment: The springs are threaded onto the top spring mounts to provide for optimal adjustment for shaking. If your springs have already been factory adjusted and they are too stiff to shake, you will need to readjust the springs (back them off) before operating the machine. F5 Paint Shaker 877-862-7049 www.F5PaintShaker.com...
- Page 9 1. To check if the springs need adjustment, place a full can of paint onto the platform, secure it, and turn on the paint shaker. If you hear any clattering, there are loose springs that need adjustment. If not, proceed to the next step (”How to Check the Spring Adjustment”).
-
Page 10: Maintenance
1. Clean paint splatters or spills off of the machine before they dry. 2. Regularly check the fasteners to make sure they are secure. 3. Check cords for damage; replace damaged cords before operating the machine again. F5 Paint Shaker 877-862-7049 www.F5PaintShaker.com...
