- Page 1 Cicada manual version 1.2 manual version 1.2...
-
Page 2: Table Of Contents
BACKLIGHT ADJUSTMENT..................... 9 WEP ENCRYPTION DETECTION..................9 NETWORKING BASICS....................10 CICADA ACCESSORIES....................12 DIRECTION FINDING ANTENNA SETUP................13 CICADA SERIAL INTERFACE (DATA LOGGER)..............14 SYSTEM REQUIREMENTS....................14 GPS SCREEN......................15 SERIAL PORT SCREEN....................15 UNIT SETUP SCREEN....................16 DOLPHIN REAL TIME PLOTTER SCREEN................16 MENU SELECTIONS..................... - Page 3 Cicada’s battery pack uses common AA battery cells found in any conveinence store. Ni-Cad, Alkalines, Ni-MH and Li-Ion cells may all be used. Cicada does require 5 AA cells with at least 1500 mAh per cell. BVS supplies 2 bat- tery packs complete with 10 Ni-MH battery cells to get users working right out of the box.
-
Page 4: Cicada Accessories
Expect over 500 cycles from each Ni-MH pack. CICADA KEYPAD Cicada uses a raised plastic keypad as its only interface. Below are simple descriptions of the buttons and their features: LOGGING - indicates if unit is logging to compact flash... -
Page 5: Ap Measurement Screens
TSF: Timing Synchronization Function indicates the AP’s abso- lute time that counts down to the next channel hop SSID: currently selected AP’s Service Set IDentification PER: Packet ErrorRate percentage for the selected AP Following - Cicada continues to follow AP as it hops Page 4... -
Page 6: Main Menu
This screen allows monitoring of the selected AP’s beacon timing channel. After a few moments of searching, Cicada will “lock on” and follow the AP’s timing parameters.The parameters are listed on page 4 of this manual. Press ESC at any time to return to the AP analysis screen. -
Page 7: Spectrum
SPECTRUM This RSSI screen indicates all received signals at 2.4 GHz in a 1 MHz bandwidth that Cicada continuously scans. The peak power is indicated graphically and numerically on this screen as well as the channel being scanned. PEAK HOLD Peak Hold is only activated and deactivated in the Spectrum Screen. -
Page 8: Info Screen
POWER LED indicator above the keypad will light up indicating the internal GPS is operational. Be sure that the GPS antenna is connected to the Cicada and not blocked from the satellites in the sky. Allow a few minutes for the GPS antenna to acquire a few sat- ellites and lock. -
Page 9: Initialize Card
ESC or ENTER. Upon selecting ENTER, and new message will appear moments later indicating that the compact flash card is now formatted for use in your Cicada. SELECT REGION At anytime, press SETUP on the key pad to access the Select Geographic Region screen. -
Page 10: Contrast Adjustment
BACKLIGHT ADJUSTMENT At anytime, press 1 key to toggle the backlght off and on. Remember that using the Cicada without the backlight on will increase overall battery life. WEP ENCRYPTION DETECTION A “P” next to its associated AP address and signal strength indicates that WEP (Wireless Equivalent Privacy) is enabled and deteced for that particular AP. -
Page 11: Networking Basics
Networking Basics Packets and traffic Information travels across a network in chunks called “packets.” Each packet has a header that tells where the packet is from and where it’s going, similar to what you write on the envelope when you send a letter. The flow of all these packets on the network is called “traffic.”... - Page 12 TCP/IP (Transport Control Protocol/Internet Protocol) TCP/IP is a collection of protocols that underlies almost every form of communication on the Internet. DHCP (Dynamic Host Control Protocol) DHCP is a method of automatically assigning IP addresses. Instead of assigning addresses to individual users, addresses are assigned by the DHCP server when clients need them.
-
Page 13: Cicada Accessories
Ci c ada Accessories for your 2.4 GHz Antenna SMA connector RS-232 Serial Cable Rugged Carrying Case P/N SMA-001 DB-9 Female to RJ-11 ABS Plastic $ 25.00 P/N 00002AB P/N P-CASE $ 25.00 $ 100.00 GPS Antenna GPS magmount active antenna with SMC male connector PCMCIA Card Reader P/N GPS-SMC... -
Page 14: Direction Finding Antenna Setup
Optional Direction Finding Antenna (DFA-000) Setup Remove cap from SMA connector on DF antenna. Tighten both screws on bracket. Hook antenna bracket into slit on top of unit. Loop & screw in antenna cable to unit. Slide bracket plate into other slit. Page 13... -
Page 15: Cicada Serial Interface (Data Logger)
The CICADA Serial Interface software allows complete control of the CICADA IEEE 802 scanner. All data displayed on the CICADA LCD is also displayed on the PC screen. Data received by the PC software can be saved in disk files for later replay and conversion. Each measurement screen of the CICADA is duplicated by the PC software. -
Page 16: Gps Screen
GPS receiver. At least 3 satellites are required for GPS lock. The tool bar GPS Status button indicates lock status with two indicators. These indicators are GREEN if the GPS is locked, RED if not. If the indicators are the same color as the button, the Cicada GPS is off. -
Page 17: Unit Setup Screen
UNIT SETUP SCREEN Clicking the menu View Unit Data button will cause the Cicada connected to the PC serial port to send its unit data which is displayed in a dialog. When using BVS Dolphin plotting software, this information must be available. When making data files that will be replayed for plotting, display this dialog just after turning on Data save. -
Page 18: Menu Selections
3 If connected to the Cicada via PC serial port, get the Cicada Setups by clicking the “View Unit Data ” menu button. If using Dolphin later with replay, make sure to do this just after turning on the data file save so that the Cicada serial number is recorded in the data save file. - Page 19 Pause Replay: Click this button to pause the current disk file replay. The Cicada status bar is used to display current program status using 7 indicators as shown above. 1 -- Displays the current serial connection. It will indicate “Not Connected” if a serial port has not been selected and during file replay.
-
Page 20: Ap Analysis Screen
This measurement displays up to 64 detected AP’s. Scroll bar’s appear when more AP’s are detected than can be displayed in the window. To follow a particular AP displayed in this list, double click it. The Cicada will enter the Follow measurement using the selected AP. -
Page 21: Spectrum Screen
The bottom section of the display indicates information about the AP. SPECTRUM SCREEN The Cicada sweeps across all channels and reports the power (dBm) for each. Page 20... -
Page 22: Chameleon Wlan Data Conversion Application
BVS CHAMELEON DATA CONVERSION UTILTTY Introduction The Chameleon application software is the universal data conversion and filtering tool for BVS Receivers. The Chameleon was designed to greatly simplify the transfer of receiver data to many popular post-pro- cessing applications such as MapInfo and MS Excel. The following sections of this document outline the various features of the Chameleon WLAN software. - Page 23 Output Format By selecting the appropriate post-processing application, the correct fields will be selected and placed in the field selection screen in the appropriate order. The user may also choose “none”. Whether or not the field titles are in the output can be selected. Also, the delimiting character of the fields in the output file is chosen in this section.
-
Page 24: Glossary Of Acronyms
Glossary of Acronyms Alternating Current Analog to Digital converter Automatic Gain Control Access Point Applet a small Application Bit Error Rate BPSK Binary Phase Shift Keying Basic Service Set Band Width CDMA Code Division Multiple Access (spread spectrum modulation) Direct Current Digital to Analog decibel decibels referenced to 1 milliwatt... - Page 25 IMPORTANT SAFETY INSTRUCTIONS When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1)Read and understand all instructions. 2)Follow all warnings and instructions marked on the product. 3)Unplug this product from the wall outlet before cleaning.
- Page 26 2. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 3. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network inter- face. 4. Use caution when installing or modifying telephone lines. INSTRUCTION FOR BATTERIES CAUTION: To Reduce the Risk of Fire or Injury to Persons, Read and Follow these Instructions: Use only the type and size of batteries mentioned in owner’s manual.
- Page 27 Below are Radiation Patterns for the included N2400SMA1G Antenna (left) and BVS’ optional DF corner reflector (right). The Antenna Under Test was measured against a 1/2 Wave Dipole, therefore; The Gain is measured in dBd (0 dBd = 2.14 dBi).

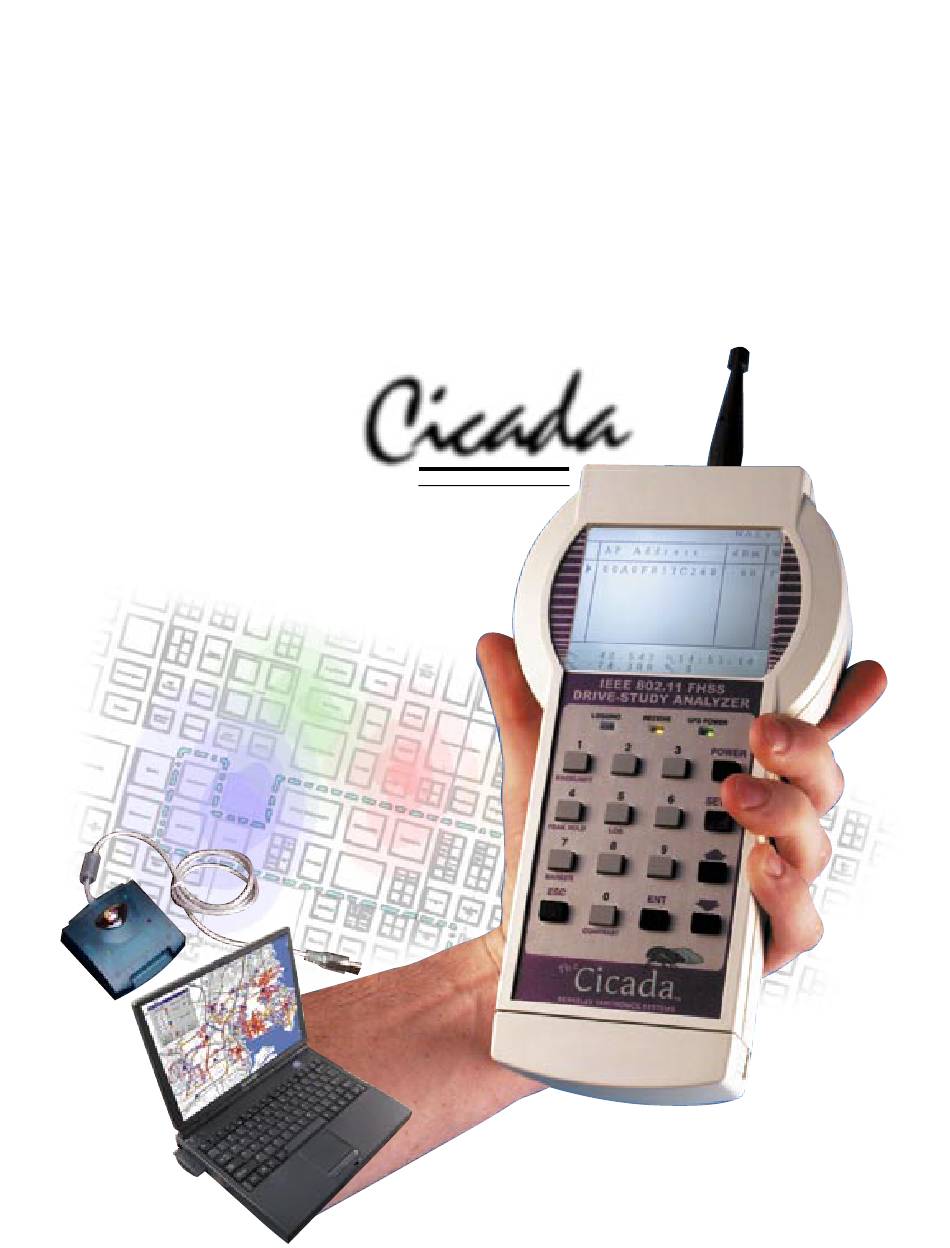

- Page 28 Cic ada 802.11 W-LAN TESTER FHSS DRIVE-STUDY ANALYZER Cicada™ is a wireless receiver designed for sweeping and opti- mizing 2.4 GHz Local Area Networks for analysis in drive-stud- ies. The instrument measures coverage of FHSS (Frequency Hopping Spread Spectrum) CDMA networks which operate on the IEEE 802.11 standard allowing the user to measure...
- Page 29 Microsoft Excel® spreadsheets and MapInfo® post processing applications in Windows® environment. Berkeley Varitronics Systems, Liberty Corporate Park, 255 Liberty Street, Metuchen, NJ 08840 Phone 732-548-3737 • Fax 732-548-3404 • www.bvsystems.com • E-mail: info@bvsystems.com Excel and MapInfo are shown above and are the registered ® trademarks of Microsoft and MapInfo respectively.
- Page 30 PAGE 48 • NOVEMBER 2003 MICROWAVE PRODUCT DIGEST 802.11a Measurement Techniques and Network Issues by Herb Petrat, Senior Software Engineer, Berkeley Varitronics Systems, Inc. n the continuously changing Also, the RF sensitivity for 802.11b 8 0 2 . 11a and 802.11g allow more users...
- Page 31 Figure 2: Yellowjacket™ Figure 3: Yellowjacket™ Figure 4: Yellowjacket™ AP Figure 5: Yellowjacket™ Spectrum Screen AP Screen Search Screen Security Screen B V S , Con’t from pg 48 into their own network. They transfer veys and analyzes coverage issues in imported into the Site Supervisor security of the network.
- Page 32 FEATURE ARTICLE PAGE 60 • NOVEMBER 2003 MICROWAVE PRODUCT DIGEST B V S , Con’t from pg 57 Figure 6: Yellowjacket™ Access Point MAC List ed, the resulting data is transferred off of the iPAQ back onto the desktop or laptop.
- Page 33 ake the W -LAN T est Challenge ake the W -LAN T est Challenge A WLAN system’s RF environment challenges The most basic and readily available test tool is a designers, installers and administrators with planning re-use laptop with an 802.11b card. The measurements vary with patterns, interference detection and system coverage in both manufacturer, but the ability to measure signal strength and installation and maintenance.
- Page 34 tive. A directional antenna can be used to help locate sources of interference, shown in figure 2. As many interfer- ers should be eliminated as possible. Microwave ovens may be moved, and bluetooth devices and cordless phones can be banned from the office. Some interference may be impractical to eliminate.
- Page 35 as corner reflectors can direct more energy to your coverage is a plus), PER, and scanning of multiple channels is a plus. area and reduce the amount of received interference. This is Best used to measure 802.11b interference, coverage of a useful technique for existing with a neighboring WLAN sys- APs, channelization and co-channel interference.
