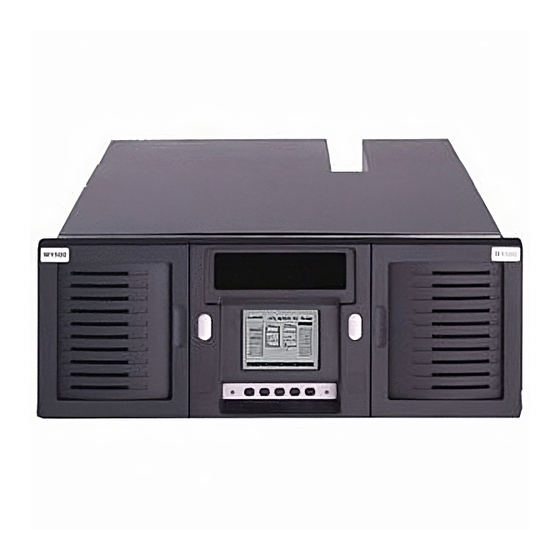

M1500, M2500, L100, L25 - Worm and Guide Rail Lubrication Instructions

Note: The M-Series products are expected to go End of Service Life on 30-June-2011.

The Sun L25 and L100 products are expected to go End of Service Life on 31-March-2011.

At the expiration of any existing contract, Quantum will no longer actively support these products

Use this procedure to properly lubricate both the WORM and the guide rail on

these libraries.

1. Unrack the library chassis and remove power to the chassis.

Remove the rack mount

pointed to by this link.

Remove all magazines from the

and pointed to by this link.

4. Gently move the hand to the front center of the library.

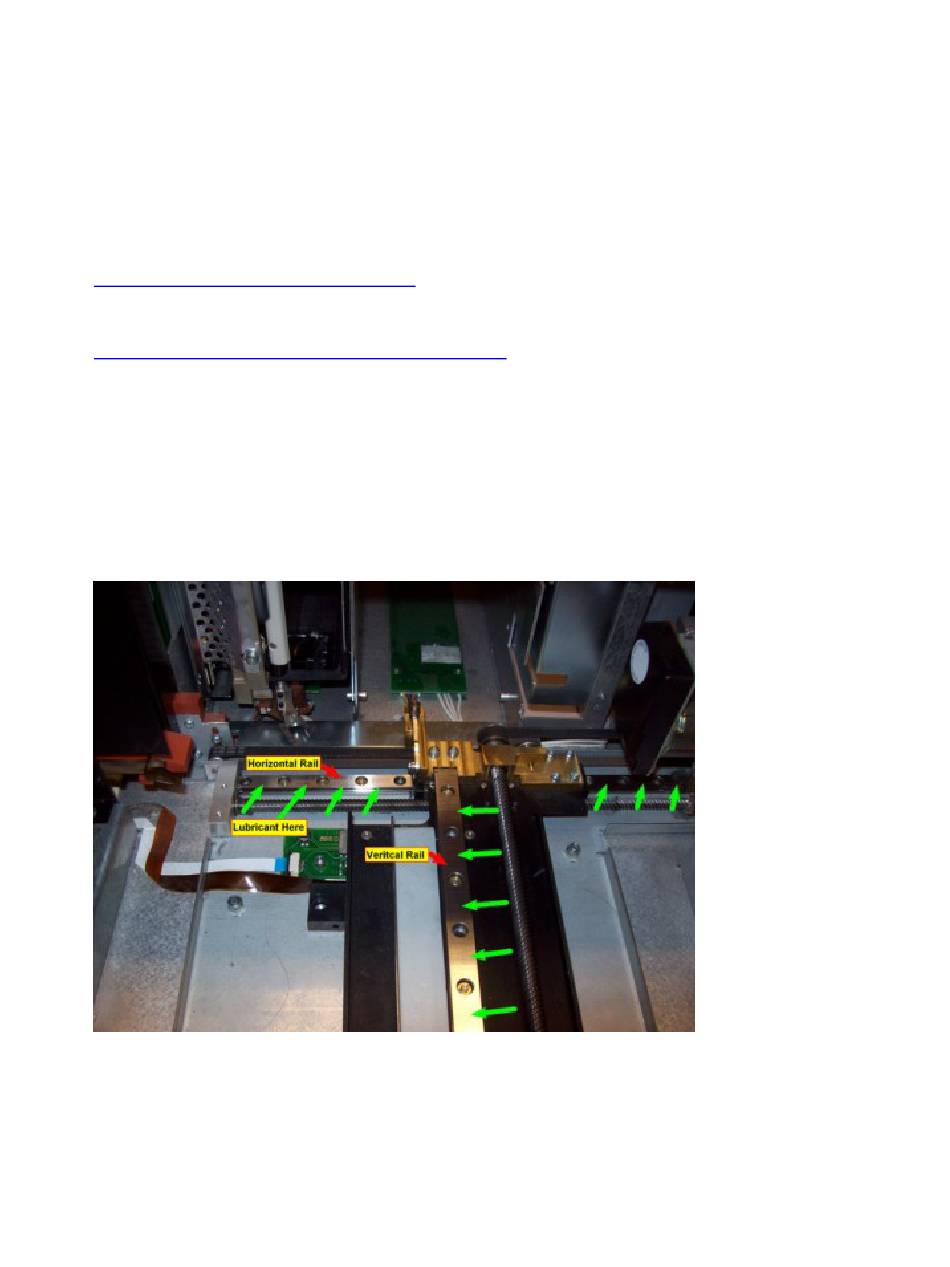

5. Apply lubrication to the vertical and horizontal guide rails in ample dabs,

separated by inch increments.

Make sure to lubricate the sides of the rails, as well.

cover, following the procedure shown below and

library, following the procedure shown below

p.1

Table of Contents

Need help?

Do you have a question about the M1500 and is the answer not in the manual?

Page 1 The Sun L25 and L100 products are expected to go End of Service Life on 31-March-2011. At the expiration of any existing contract, Quantum will no longer actively support these products Use this procedure to properly lubricate both the WORM and the guide rail on these libraries.
Page 2 M1500, M2500, L100, L25 - Worm and Guide Rail Lubrication Instructions 6. Apply lubrication to the vertical and horizontal worm gears in inch increments. 7. Move the library hand vertically and horizontally to distribute lubrication.
Page 3 M1500, M2500, L100, L25 - Worm and Guide Rail Lubrication Instructions Removing the Rack Mount Cover Use this procedure to remove the rackmount cover from the library. 1. Remove the two screws securing the rack mount cover to the library (see below).
Page 4 M1500, M2500, L100, L25 - Worm and Guide Rail Lubrication Instructions Removing All Magazines from the Library Use this procedure to remove all magazines from the library. 1. Make sure the library is powered down. 2. Look through the viewing window and verify that all cartridges are fully seated, either in a magazine slot or in the robotic hand.
