Summary of Contents for Icel Manaus GV-2015
- Page 1 MANUAL DE INSTRUÇÕES DO GERADOR DE ONDAS ARBITRÁRIAS MODELO GV-2015 Outubro/2020 Leia atentamente as instruções contidas neste manual, antes de iniciar o uso do instrumento...
- Page 2 USER’S OPERATION MANUAL Check When you get a new series dual-channel signal generator, it is recommended that you follow the steps below to check the instrument. Check the package If the package is damaged, keep the damaged packaging or shockproof material until the goods have been fully inspected and the instrument has passed electrical and mechanical tests.
-
Page 3: Chapter I Overview
Chapter I Overview Instrument introduction series function generator can generate multiple waveforms such as sine wave, square wave, triangle wave, pulse wave, and arbitrary wave. The frequency range up to 15MHz, with duty cycle adjustment, sweep frequency, frequency signal frequency and counter function, and the output signal, amplitude, and frequency can be displayed simultaneously. -
Page 4: Frequency Characteristics
Technical parameters Frequency characteristics Model 15MHz Sine wave frequency range 0~15MHz Square wave frequency range 0~15MHz Triangle wave frequency range Pulse wave frequency range 0~6MHz TTL digital wave frequency range Arbitrary frequency range Pulse width adjustment range 100nS~4000S Square wave rise time ≤25ns Minimum frequency resolution 0.01uHz（0.00000001Hz）... -
Page 5: Output Characteristics
Sawtooth wave Linearity ≥98%(0.01Hz~10kHz) Output characteristics 10MHz ≤ Frequency ≤ Frequency ≤ 10MHz Sine wave amplitude 15MHz range 2mVpp~20Vpp 2mVpp~10Vpp Frequency ≤ 10MHz 10MHz ≤Frequency ≤15MHz Square wave 、 Triangle wave 2mVpp~20Vpp 2mVpp~5Vpp amplitude range Amplitude resolution Amplitude ±0.5%/5 hours stability Flatness of ±5%(<10MHz);... -
Page 6: Sweep Function
Frequency 1Hz~100MHz Frequency meter measurement range function Measurement accuracy Gate time 0.01S~10s continuous adjustment Counting range 0-4294967295 Counter function Coupling method DC and AC coupling methods Counting method Manually Input signal voltage 2Vpp~20Vpp range Pulse width 0.01us resolution, maximum measurable 20s measurement Period measurement 0.01us resolution, maximum measurable 20s... - Page 7 Voltage Power supply DC5V±0.5V range Manufacturing Surface mount technology, large-scale integrated circuits, high reliability, technology long service life Prompt tone Users can turn on or off by setting program Operating All key operations, knob continuous adjustment characteristics Environmental Temperature: 0~40 oC Humidity: <80% conditions...
-
Page 8: Chapter Ii Instrument Description

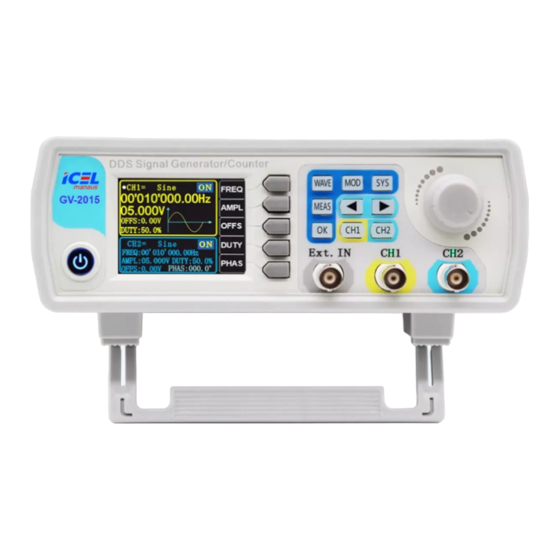

Chapter II Instrument Description 1. The front panel overview... - Page 9 2. The display interface description...
- Page 10 3. The key function description Item Instructions Function soft Function soft-key activates the corresponding function on the screen keys Press button to display main interface or waveform selection and cancel Fast switching between measurement mode interface and main interface Fast switching between modulation mode interface and main interface Fast switching between system setting interface and main interface The main interface is used to control the simultaneous output of channel 1 and channel 2, and in other interface，...
-
Page 11: Chapter Iii Instrument Operation Instructions
Chapter III Instrument Operation Instructions After power on, first enter the welcome interface and then jump to the language selection interface. Press the corresponding soft key to select the language and finally enter the main interface. After you turn on the computer again, you do not need to repeat the language selection and go directly to the main interface. - Page 12 2. MEAS measurement mode interface parameter settings Press and press the soft key in the measurement mode interface to switch between the measurement function and the count function. You can also rotate the encoder to switch. 2.1. Measurement function The input signal frequency, period, positive pulse width, negative pulse width, duty cycle and other parameters can be measured, the measurement frequency range 1Hz- 100MHz, the measurement signal amplitude range is 2mVpp-20Vpp, the input interface is Ext.IN;...
- Page 13 3.1, Sweep function Sweep frequency, you can set any starting point frequency and end point frequency in the signal generator output frequency range, sweep time 0.1s~999.9s, sweep type is linear scan, logarithm scan two scan methods, sweep frequency direction is positive , Reverse and Round Trip Three Sweep Directions; ➢...
- Page 14 ➢ After setting all the items, press the soft key to start the sweep function and press the key to stop. 4. System settings and interface parameter settings Press the key to enter the system setting interface. Press the soft key to select the parameters for the in/out position, sound setting, brightness adjustment, language setting, synchronization function setting, and arbitrary wave display quantity setting.
- Page 15 www.icel-manaus.com.br Outubro/2020...
