Maiwe MT8110 Quick Start Manual

Ethernet to Fiber Optic Converter
Model: MT8110

◆ Brief introduction

MT8110 can reciprocally convert the signals of Ethernet and fiber optic. It
achieves to transfer the Ethernet signal by fiber which can reach to much longer
distance.

◆ Capability and feature

· Standard IEEE802.3 and 802.3u Fast Ethernet.
· 10/100Mbps Ethernet and 100Mbps optic port.
· Full and half duplex communications.
· Surge and lightning influence protection, plus-and-play.
· LED indicator for work state
· Metal shell protects the device.
· External power supply.

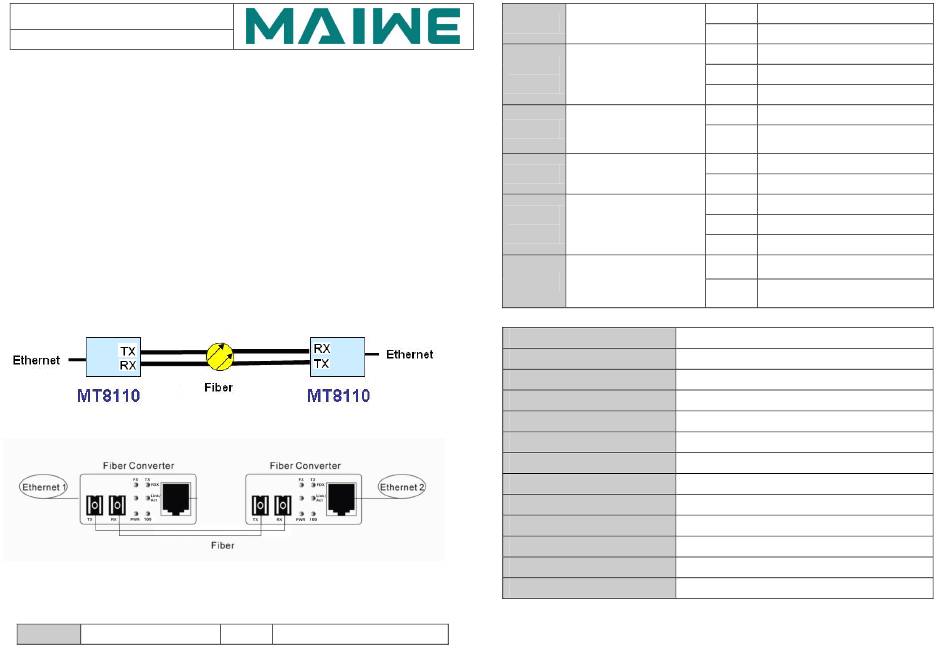

◆ Connection and application

◆ Led indication

LED light Function State Working
PWR Power indication light
FX 100Base-FX port link
LINK/ACT state indication light
100Base-FX port working
FX-FDX
mode indication light
10/100 Base-TX signal
TX-100
indication light
TX 10/100 Base-TX LINK
LINK/ACT state indication light
10/100 Base-TX working
TX-FDX
state indication light

◆ Parameters

Power supply
Work current(mA)
Baud rate(bps)
Port connector
Error rate
Power stabilization
Data cache
EMC
Work temperature（℃）
Stock temperature（℃）
Relative humidity
Dimension(mm)
IEEE standard

◆ Suitable fiber optic line

Multi-mode fiber optic line: 50/125, 62.5/125, 100/140um
On Power supply is being supplied
Off No power
On
100Base-FX is active
Blinking
Data is being transmitted
Off
100Base-FX is inactive
On Full duplex
Off Semi duplex
On 100M signal
Off 10M signal
100Base-TX is active
On
Blinking
Data is being transmitted
100Base-TX is inactive
Off
On Full duplex
Off Semi duplex
2.5w
200mA
Ethernet 10/100M, fiber optic 100M
Ethernet:RJ45,fiber optic: ST/SC/FC
≤10
-9
0.2Mw/℃
1MBits
According to FCC part 15
-20~70
-45~80
0~95%
95mm×70mm×26mm
802.3,802.3u,802.3d
