JR ProPo PDX16 Operation Manual

■By using high capacity batteries, it enables servos to be powered reliably.
■Integrated electric switch for added safety.
■Capable to use for any other radio manufacturer systems, as it
only by-passes the signals.
■For serial bus connection, Separate sold Bus adapter shall ease
the connection to the unit.
Thank you for purchasing this product.
To allow correct and safe use of this product,
please read this operation manual
Failure to follow these instructions can cause
DANGER
serious injury or death to the user or others.
● Do not use this product in the rain as water may cause electronic devices to malfunction.
● This product carries a risk of injury due to heat, fire and electric shock.
● Never disassemble or modify this product.
● Only use the correct input voltage.
● Be sure to check the polarity when you input the battery connector to this product.
● Reversing connection/polarity may damage this product.
● Be sure to check the battery capacity upon operating this product, if the battery capacity
is under the operational voltage, this product may not function properly.
● Please check that all screws are securely tightened on product.
● Do not use this product if there is even slight damage to the wire harness, connectors,
or other assemblies.
● Properly secure excess wires in place to avoid excess movement and damage.

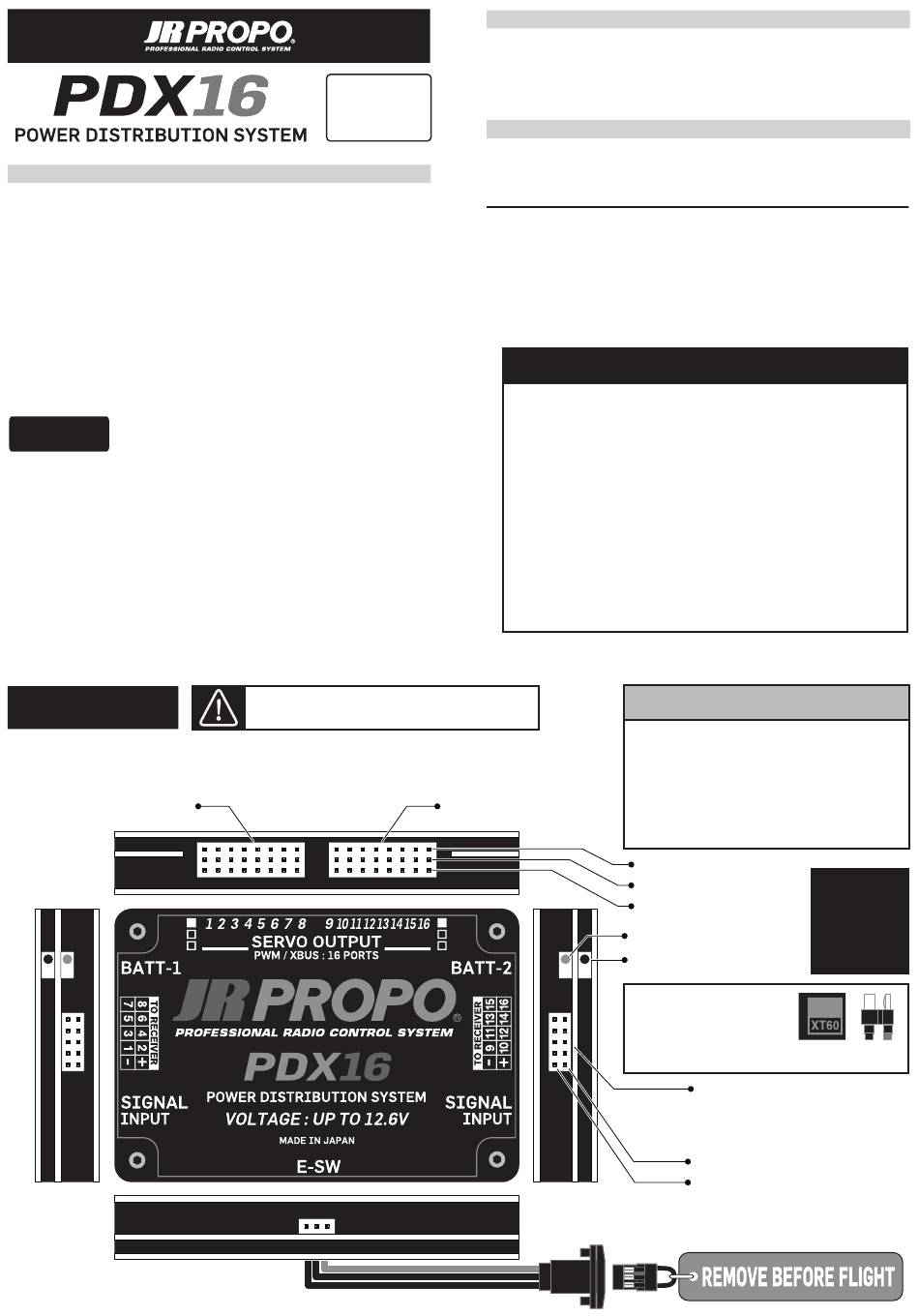

配 置 図
This product shall feed the exact input voltage to the servo operating
voltage. Be sure to use specified voltage on the servo.
Signal Output Ports
＃1−＃8
BOTTOM▶
TOP▶
TOP▶
BOTTOM▶
OPERATION
MANUAL
FEATURES
Be sure to check the polarity before
actual insertion of the connectors.

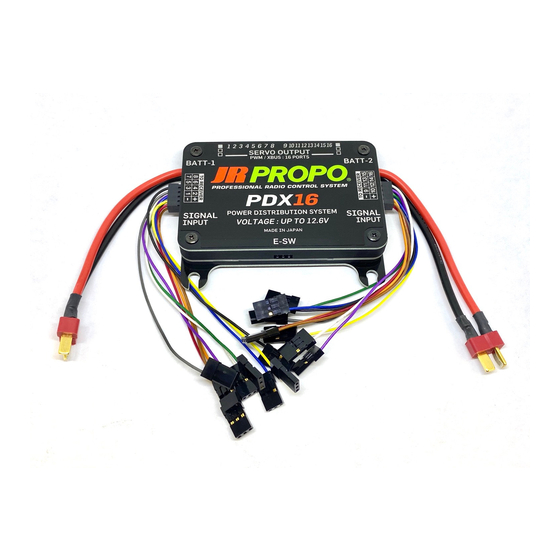

■Product name: PDX 16
■Dimensions: 2.36 x 3.54 x 0.59 inch / 60x90x15 mm
■Weight: 3.44oz/ 97.5 gram
■Operating voltage: under 12.6 V
■Connection Port: 16 ports
■ PDX16(This product)
■E-Switch Adapter
■Accessory
For U.S.A.: service@deeforce.net (Ph: 217-369-2854)
For Australia: info@rcdepot.com.au (Ph:07-3879-6692)
For other overseas Countries: rcdepot.overseas@gmail.com
Konishi Mokei Co., Ltd. (RC DEPOT)
1-3-17 Izumi, Noda-City, Chiba-Pref. 270-0239 JAPAN
Quick feature on this product.
◆Using a high capacity , the PDX16 by-passes the
receiver, delivering maximum reliable power directly
to the servos. The PDX16 safely delivers the correct
voltage requirements to the receiver. The receiver now
delivers only the control signals to the servos through
the PDX16, not the power.
◆ PDX16 works with both PWM and Serial Bus
technology and is compatible with most other radio
manufacturer' s systems.
◆ PDX16 is compatible with super hi voltage servos
(12v)3S Li-Po(12.6v) packs can be used with 12v super
high voltage servos.
Signal Output Ports
＃9−＃16
▲ ▲
T B
※There is no polarity on switch plug.
SPECIFICATION
CONTENTS
■ Serial Bus Adapter (2)
■8chSignal Cables (2)
■Manual
SERVO OUTPUT PORT
Input signal is directly sent unre-
gulated to the output terminals.
■ PWM Input => PWM Output
■ Bus Input => Bus Output
Note: Under the Serial connection
use, never connect PWM servos.
Signal terminal
＋)Positive terminal
−)Negative terminal
＋)Positive line (RED)
−)Negative line (Black)
There are two choice
of the battery conne-
ctor available as
Deans or XT60
XT60 DEANS
Signal input Ports
※Be sure to insert the connector
harness in correct direction
＋)Positive terminal
−)Negative terminal
Electric Switch
man_pdx16_en
Receiver
Battery
such as
Li-Po 3S
