Overview
network. Provide a quick solution for the user's serial devices to transfer data via Ethernet
Features
• 2.4GHz 802.11b/g/n,compatible
• Support IEEE 802.3、IEEE 802.3u
• WiFi Client/AP/Router Mode
• Support wps/wds
• The range of baudrate: 1200~500000bps
• Support transparent transmission mode
• Support multiple security authenti-cation mechanisms:
WEP64/WEP128/ TKIP/ AES
WEP/WPA-PSK/WPA2-PSK
• Support wireless roam
• Support multiple network protocols:
PPPOE/TCP/UDP/DDDNS /DHCP/DNS/HTTP/Firewre
• Support AT+ instruction set
• Support two config methods:Serial/WEB
• Device Dimensions 87*47*26mm

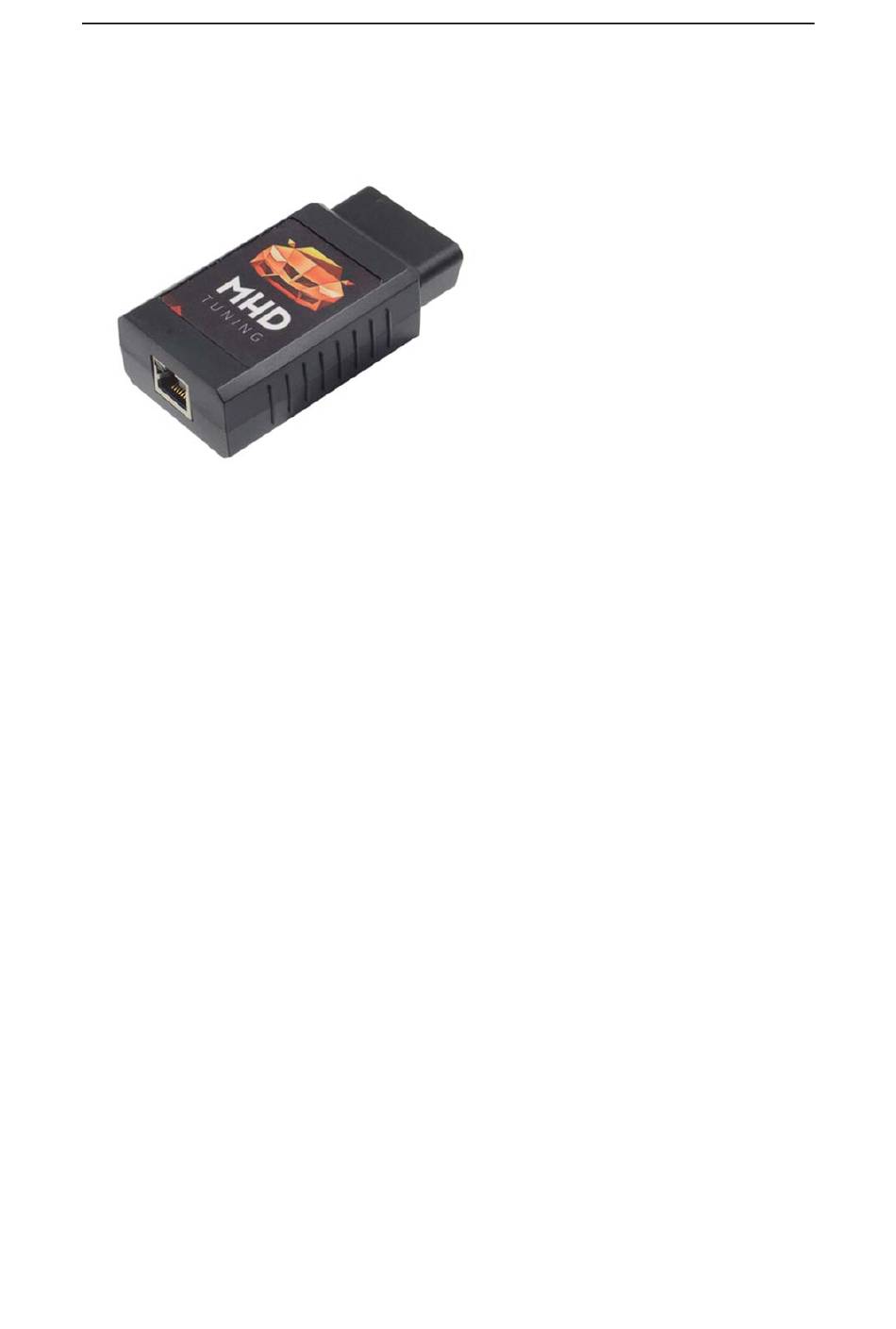

MHD OBD2 Flasher Wifi Enet Module User Manual

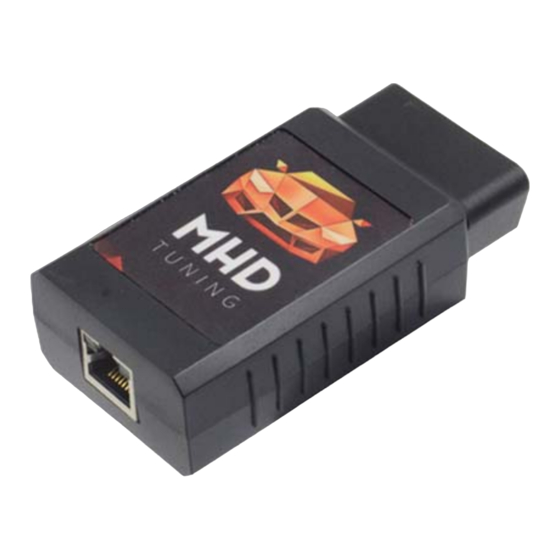

MHD OBD2 Wifi Flasher was specially
developed and designed to operate the
Ethernet OBD2 diagnostic and coding
features via wired J2534 port and
wireless via an embedded module based
on the universal serial interface network
standard,built-in TCP / IP protocol stack,
enabling the user serial port, Ethernet,
wireless
network
between
the
conversions.
traditional serial devices do not demand
to change any configuration, data can be
transmitted
through
(wifi)
interface
the
the
Internet
1
Advertisement
Table of Contents
Summary of Contents for MHD OBD2
- Page 1 MHD OBD2 Flasher Wifi Enet Module User Manual Overview MHD OBD2 Wifi Flasher was specially developed and designed to operate the Ethernet OBD2 diagnostic and coding features via wired J2534 port and wireless via an embedded module based on the universal serial interface network...
- Page 2 MHD OBD2 Flasher Wifi Enet Module User Manual Applications Ethernet OBDII WiFi Diagnose Specifications The parameters are defined here.
- Page 3 MHD OBD2 Flasher Wifi Enet Module User Manual Wi-Fi Module Pin Assignment Electrical Characteristics...
- Page 4 MHD OBD2 Flasher Wifi Enet Module User Manual Operation Guidelines to work with car OBDII Step 1: Ignition ON, plug the MHD OBDII wifi flasher to the OBD2 diagnostic port Step 2: Search the Wifi ISID started with MHD_XXXX from laptop wifi and access with the password which sated at the back side of the module.
- Page 5 MHD OBD2 Flasher Wifi Enet Module User Manual Appendix Disclaimers The contents of this document are subject to change without notice. Autosvs Technology reserves the right to make changes, without notice, in the products, including circuits and/or software, described or contained therein. Information contained in this document regarding device applications and the like is intended through suggestion only and may be superseded by updates.
- Page 6 MHD OBD2 Flasher Wifi Enet Module User Manual FCC Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
