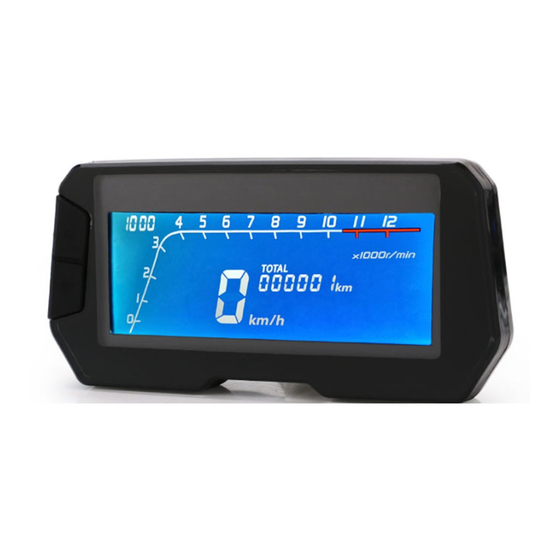

Eling MLS052 Instruction Manual

1.

Speedometer

2.

Tachometer

3.

Fuel gauge

4.

Water temperature meter

5.

Key function

6.

Clock adjustment

7.

Backlight

From the cable side
8.
Terminal

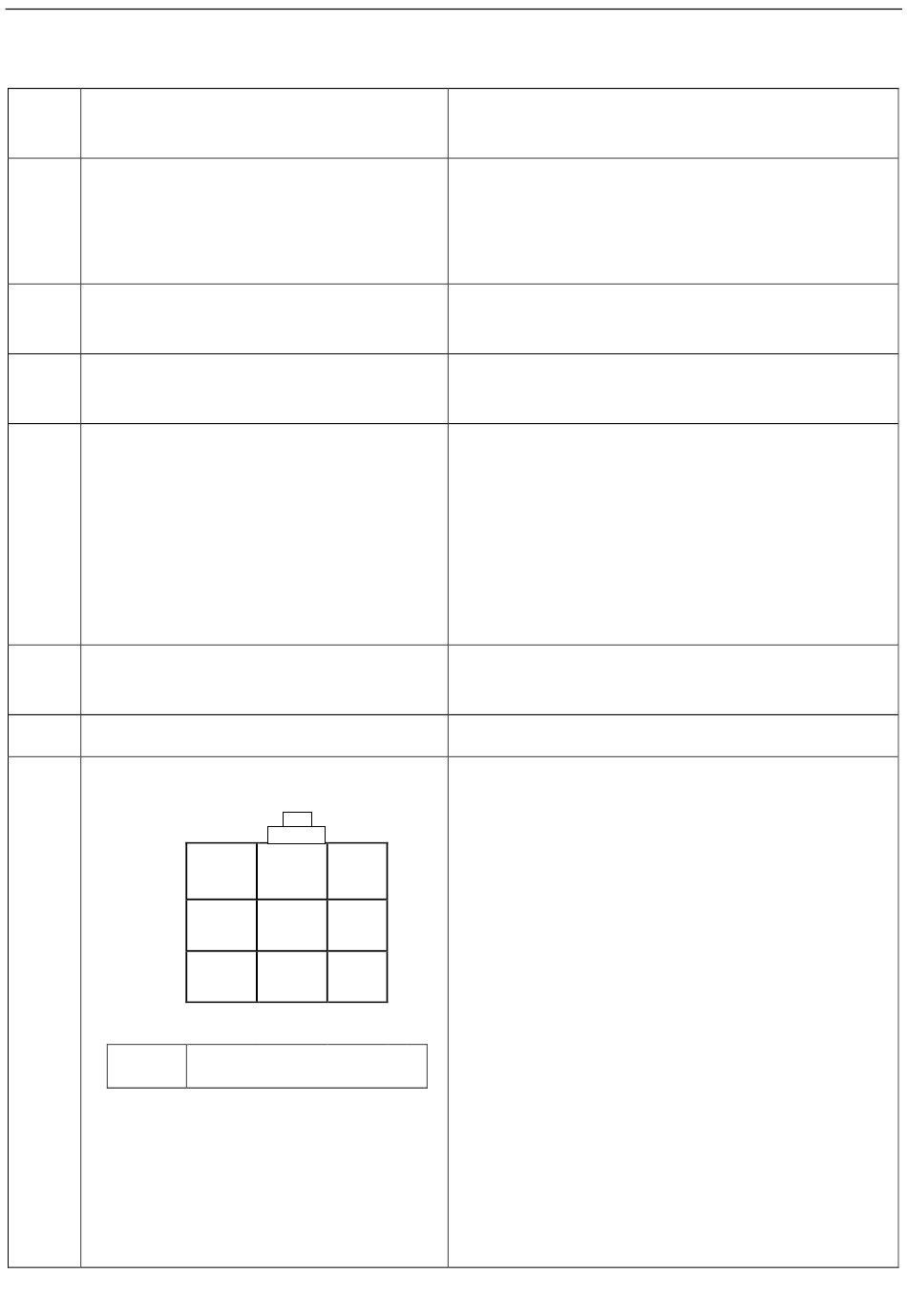

MLS052 Instructions
① ② ③
④ ⑤ ⑥
⑦ ⑧ ⑨
DJ611-2.8*0.5
LCD display, speed up 5%, 18Hz = 63KM/H; maximum display
199KM/H.
166Hz to 10 *1000r/min. When the speed exceeds 4 *1000r/min, the
alarm light flashes. When the speed exceeds 5 *1000r/min, the alarm
lamp will be on for a long time. The maximum display is 12 x
1000r/min.
E point 98, F point 8. The fuel meter with resistance greater than 85
flashes and the alarm lamp flashes.
When the resistance of the water temperature sensor is lower than
165, the water temperature alarm lamp will be on for a long time.
A. Short press the button, total, subtotal A, subtotal B switch.
B. Press the button for 4 seconds to switch between metric and British system. The
default is metric system. After the change, it can be saved even if the power is
completely cut off.
C. In subtotal A interface, press the key for 3 seconds, subtotal A clears.
D. In subtotal B interface, press the key for 3 seconds, subtotal B clears.
If the upper and lower keys are pressed at the same time, it enters the
clock adjustment. Short key presses change the time.
LCD backlight: white.
①
Red: Connect to a constant 12V positive feed or
directly to battery positive (for settings memory)
②
Red and black: Rev counter signal
③
Light blue: Connect to right turn signal positive
(shows a green light)
④
Green: Connect to Battery negative or earth
⑤
Green and white: water temperature signal
⑥
Blue: Connect to high beam signal positive (shows a
light blue light)
⑦
Black: Connect to ignition switch 12V positive output
(to switch unit off and on)
⑧
Blue/White: Fuel level signal
⑨
Orange: Connect to left turn signal positive (shows a
green light)
