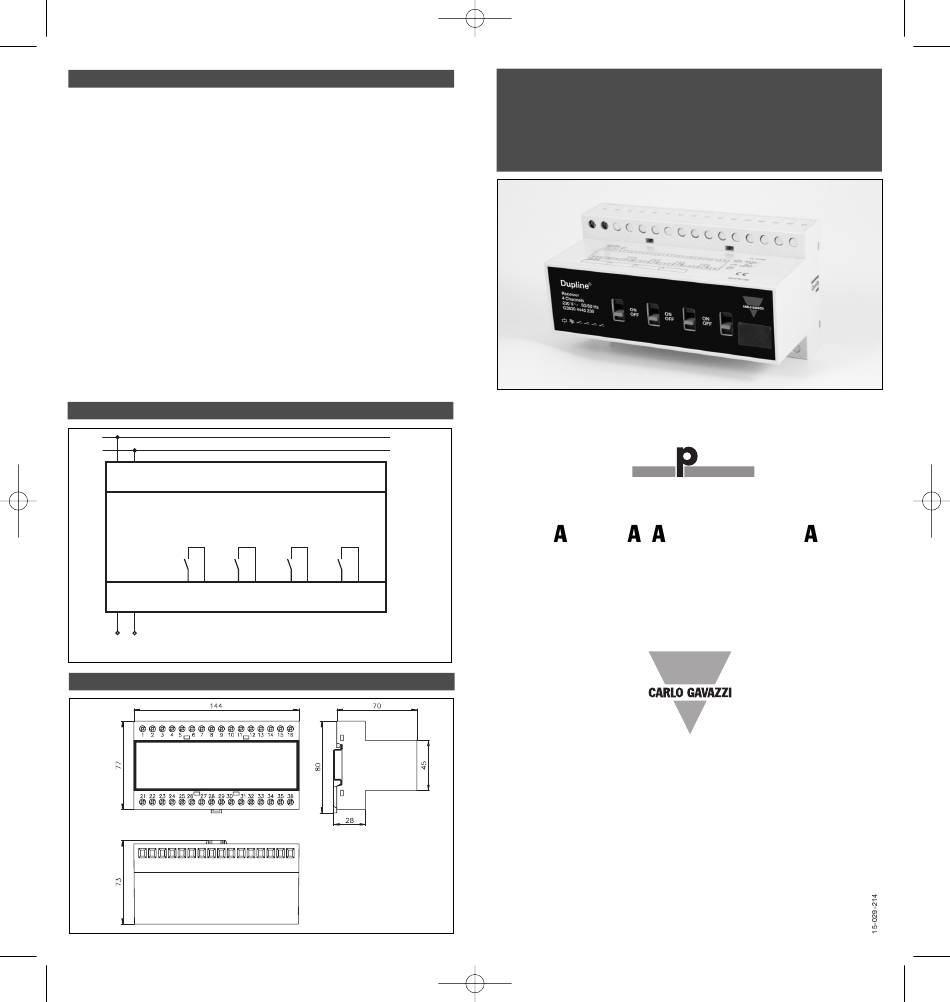

CARLO GAVAZZI Dupline G 3830 4445 User Manual

MAN G38304445.qxd:MAN G34304243 ENG-DA
Mode of Operation
4-channel receiver with 4 normally open contact outputs. Each output is
individually coded by means of the code programmer GAP 1605. For
changing the default setting, please refer to the datasheet on GAP 1605.
The outputs are normally OFF. When a transmitter coded to the selected
channel is activated, the output turns ON and remains ON until the
respective channel becomes deactivated. The default setting is such that
upon loss of Dupline ® carrier all the outputs go OFF. If fail polarity is set
to 1, the relays will go on upon loss of carrier.
On the front of the module, it is possible mechanical to override each
relay. The LED's will
manual override will be reset if Dupline or power is put off and on in min.
10 sec. Each relay is labled so it is possible to see the relays actual
status.
Note: At delivery some of the relays might be ON due to transportation
bumps. To be sure that the relays are OFF, connect the module to power
and Dupline and transmit on channels A1-4 once.
Note: Due to the construction with bistable relays, the module is intend-
ed for heating and light control only.
Wiring Diagram
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
1
21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36
out
1
Power
supply
Dimensions
25/03/08
not follow manual override.
D+
D-
2 3 4
out out out
2 3 4
H8-housing
11:32 Page 1
Output Module 4 x 20 Amp
The
C RLO G V ZZI INDUSTRI /S
Over Hadstenvej 40, DK-8370 Hadsten
Phone/Telefon: +45 89 60 61 00
Certified in accordance with ISO 9001
Kvalificeret i overensstemmelse med ISO 9001
G 3830 4445
User Manual
Brugermanual
Du line
®
Fieldbus Installationbus
Fax: +45 86 98 25 22
www.carlogavazzi.com/ac
MAN G38304445 rev. 10-03.08
