K-PO RS-101 Instruction Manual

INSTRUCTION MANUAL

INTRODUCTION

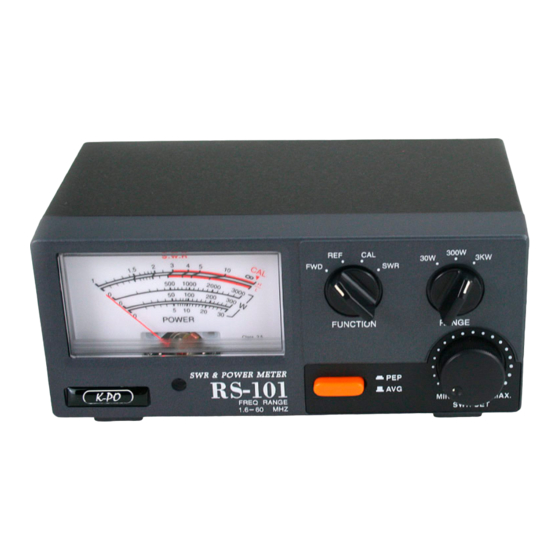

This SWR & POWER meter is a highly accurate RF meter for measuring Forward/Reverse Power, and VSWR

Main Features

1. Large meter display for ease of reading
2. Forward RF power readings (switchable to indicate either average power or Peak Envelope Power [PEP]
for SSB and AM transmitters)
3. Reverse RF power reading
4. VSWR ratio
5. Illuminated meter
6. Convenient control layout for ease operation

SPECIFICATION

MODEL
Frequency Range
Power Range
Power Scale
Maximum Power
Accuracy Low Range
Accuracy High Range
Minimum Power for SWR
Input/Output Impedance
Input/Output Connectors
Insertion Loss
Testing Function
Dimension (W/H/D) mm
Weight (Net)
Accessories
SWR/WATT METER
Model : RS-101, RS-102, RS-402, RS-502
RS-101
1.8 - 60 MHz
0 - 3 KW
30/300/3KW
3 KW
780 g
KBC import / export, Argonstraat 6, 6718 WT Ede, The Netherlands
RS-102
1.8 - 200 MHz
(AVG) +/- 10%
(PEP) +/- 15%
(AVG) +/- 5%
(PEP) +/- 10%
50 OHM
M (N option for RS-502)
Less than 0.1 dB
Fwd/Rev Power, PEP, SWR
190 x 85 x 135 mm
790 g
Operation Manual, 13.8 DC Wire
www.k-po.com
RS-402
125 - 525 MHz
0 - 200 W
5/20/200W
200W
1 W
800 g
RS-502
1.8 - 525 MHz
950 g
