Exercise caution when unscrewing the old innerflap! The spring unit is located
underneath the left side of the flap. If that side is unscrewed and the flap
pulled up, the spring will jump back. This may injure your fingers! Wear safety
glasses during replacement!
Mounting instructions

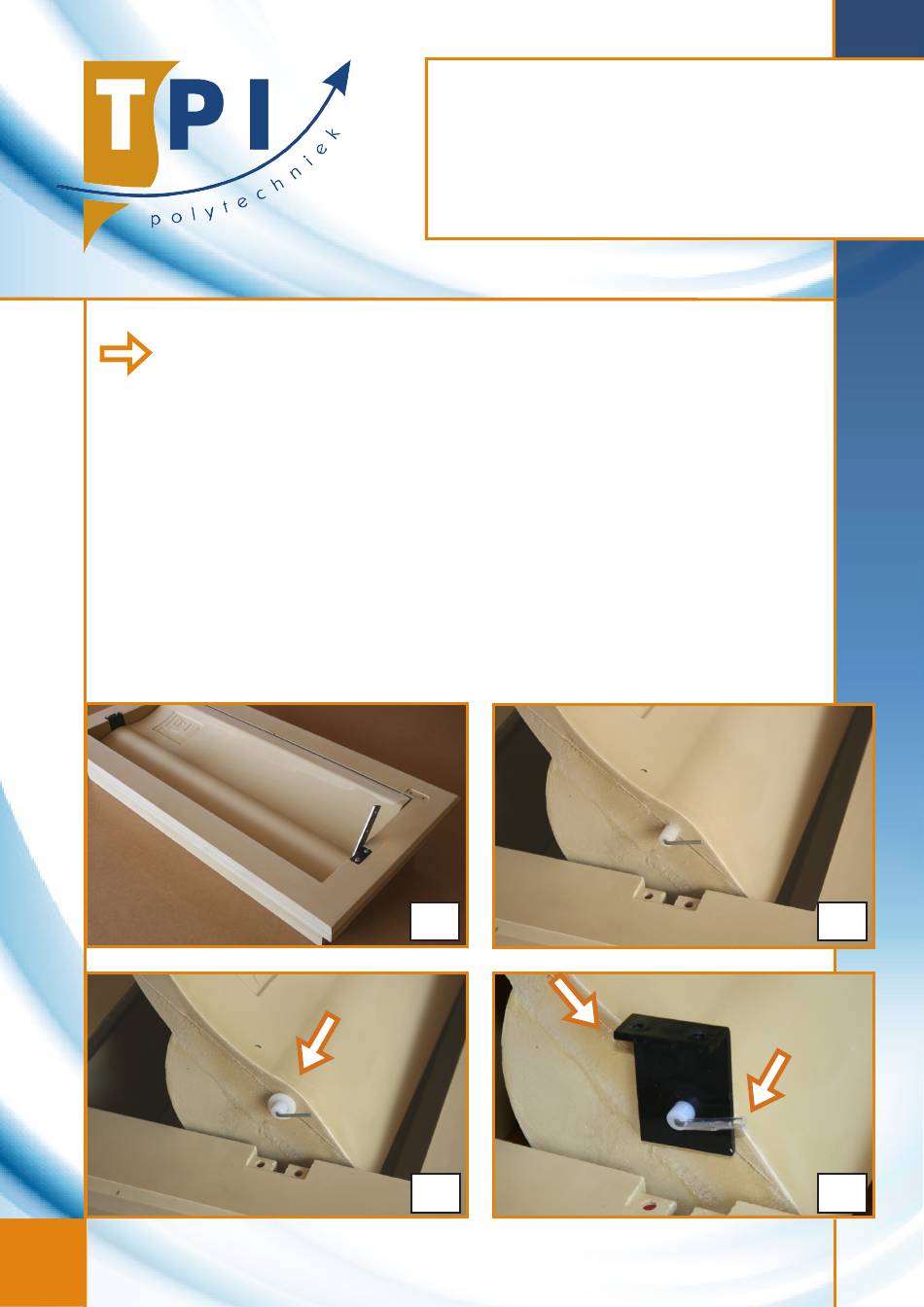

1. Start with the right side of the innerflap. Simply slide the flap into the frame. Do
not forget the plastic washer, also shown in picture 3.
2.
Pull up the flap on the left side. Place the plastic washer as shown in picture 3.
Then replace the black bracket and place the transparent plastic strip over the
spring as shown in picture 4.
Replacement inner flap
TPI air inlet valves
1450-series
1
3
2
4
Advertisement
Table of Contents
Related Manuals for TPI 1450 Series
Summary of Contents for TPI 1450 Series
- Page 1 Replacement inner flap TPI air inlet valves 1450-series Exercise caution when unscrewing the old innerflap! The spring unit is located underneath the left side of the flap. If that side is unscrewed and the flap pulled up, the spring will jump back. This may injure your fingers! Wear safety...
- Page 2 NOTE: Caution!! Use a good pair of tongs and take care not to injure your fingers! Turn the spring counter clockwise in case of self-closing execution. Mount the last two screws as shown in picture 8. TPI-Polytechniek BV De Steenbok 24 Telephone: +31 (0)73-656 91 94 E-mail: info@tpi-polytechniek.com...
