TRANSLATION OF ORIGINAL OPERATING AND
INSTRUCTION MANUAL
NEXT OVEN
08560210

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 08560210 and is the answer not in the manual?

Questions and answers

Related Manuals for Maxima 08560210

Summary of Contents for Maxima 08560210

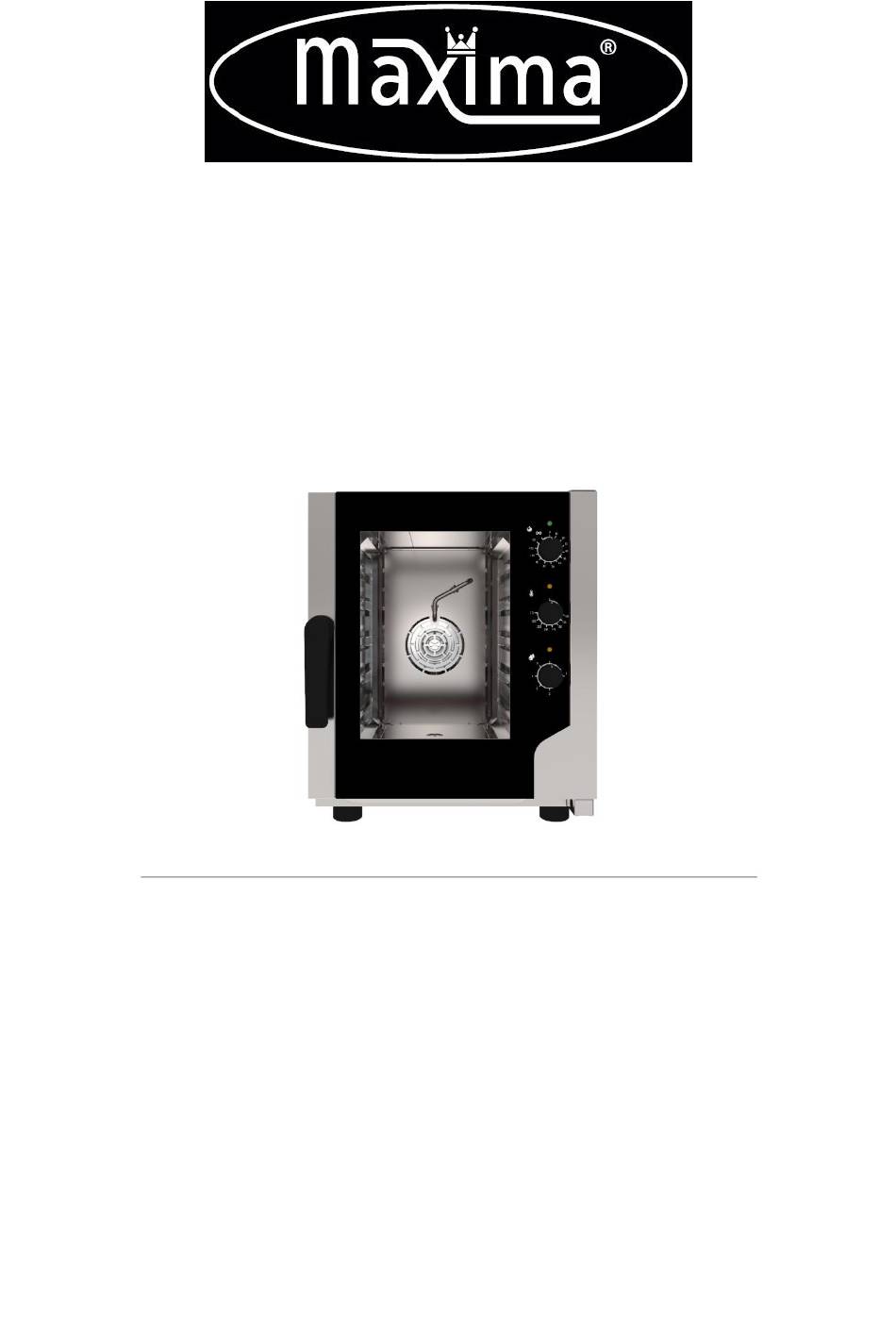

  • Page 1 TRANSLATION OF ORIGINAL OPERATING AND INSTRUCTION MANUAL NEXT OVEN 08560210...

  • Page 2: Table Of Contents

    INDEX 1. TECHNICAL SERVICE______________________________________________________________________ 4 2. INSTRUCTIONS FOR THE INSTALLER _________________________________________________________ 4 2.1 Storage __________________________________________________________________________ 4 2.2 Transportation of the appliance ______________________________________________________ 4 2.3 Unpacking the appliance ____________________________________________________________ 4 2.4 Removal of the protective film _______________________________________________________ 4 2.5 Protective film/package disposal ______________________________________________________ 4 2.6 Placement ________________________________________________________________________ 4 2.6.1 Table top oven placement _________________________________________________________ 5 2.7 Electrical connection ________________________________________________________________ 5...
  • Page 3 Any maintenance operation on the appliance must only be done by highly qualified personnel trained in the operations to be performed. Before performing any maintenance on the appliance, the power supply must be disconnected (act on the safety magnetic circuit breaker located upstream of the appliance) and let it cool down. The components that might require maintenance are all accessible by removing the left side and back of the appliance.
  • Page 4 USER SAFETY  The appliance is intended for professional use in institutional and professional kitchens and must only be used by skilled personnel who have been trained on its proper use. For safety reasons the appliance must be supervised during operation. ...

  • Page 5: Technical Service

    1. TECHNICAL SERVICE  It is essential for this instruction manual to be stored together with the appliance for future referencing; in the event of misplacing it, a copy must be obtained directly from the manufacturer.  This information has been prepared for your safety and that of others; therefore we kindly ask you to read it carefully before installing and using the appliance.

  • Page 6: Electrical Connection

    vents; must be equipped with the proper electrical and hydro systems, built in accordance with the standards related to facilities and workplace safety in the country of installation. The maximum working height, referring to the highest surface level, must be 1.6 metres from the floor. After installing the appliance, if required, apply the suitable adhesive symbol (supplied) at a height of 1.6 metres.

  • Page 7: Power Supply Cable Connection (Replacement)

    when the appliance is running, the power supply voltage does not deviate from the rated voltage value by ±10%. Ensure that the power supply cable does not come into contact with the appliance's hot parts. If the power supply cable is damaged, it must be replaced by the manufacturer or their technical support service, or in any case by a person with similar qualifications, to prevent any risk.

  • Page 8: Water Drain

    Fig.1 Warning Any damage caused by limescale or other chemicals contained in the water are not covered by warranty. 2.10 Water drain A drain pipe comes out of the rear of the appliance (see the attached “Technical Data Sheet”) to drain the cooking chamber.

  • Page 9: Instructions For The User

    No other type of pipe can be connected to this pipe, which protrudes from the back of the casing. Failure to comply with this specific prohibition shall relieve the Manufacturer from any liability concerning the potential malfunction of the appliance and poor cooking quality. Increasing the length of the original drain hose may result in the formation of abnormal "condensation"...

  • Page 10: Baking

    repeated time intervals. (A higher number corresponds to a longer time of humidifier operation, therefore greater steam production). - Turning the knob to position “5” disables the automatic control of the humidifier which works by continuously feeding water into the cooking chamber (continuous humidity/steam production).

  • Page 11: Cleaning The Fans

    Run a cycle with 100% steam (automatic humidifier knob in position "5") for about 15 minutes. Upon completing the cycle switch off the oven, let the cooking chamber cool and rinse it with plenty of water (use the suitable shower if available). Dry by running a heating cycle adjusting the temperature at 180-200°C for about 10 minutes (repeat the cycle if necessary).

  • Page 12: Maintenance Instructions

    5. MAINTENANCE INSTRUCTIONS A periodic check (at least once a year) of the appliance contributes to extending its service life and assures proper operation. Any maintenance operation on the appliance must only be done by highly qualified personnel trained in the operations being performed and authorised.

  • Page 13: Troubleshooting

    6. TROUBLESHOOTING Type of fault Cause of the fault Corrective action - Non-compliant connection to the power - Check the connection to the mains Control panel warning mains lights totally off - No mains voltage - Restore the power supply voltage (The oven does not work) - Safety thermal device triggered - Contact a skilled technician...
