S901 Quick User Guide
Document: S901-3
----------------------------------------------------------------------------------------------------------------------------- ----------------
The absolute opposite of ordinary
S901 Quick User Guide

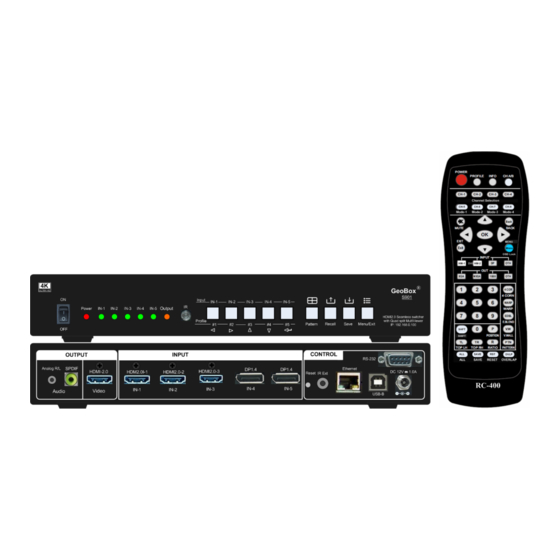

5x1 Seamless UHD switcher with Quad Split Views
Technical support:
E-mail: sales@vnstw.com
Tel: +886-2-2792-2819
Cell: +886-935-678-033
Skype: vns-inc
Version: 1.02
Website:
www.vnstw.com
0
Advertisement
Table of Contents
Related Manuals for VNS S901
Summary of Contents for VNS S901

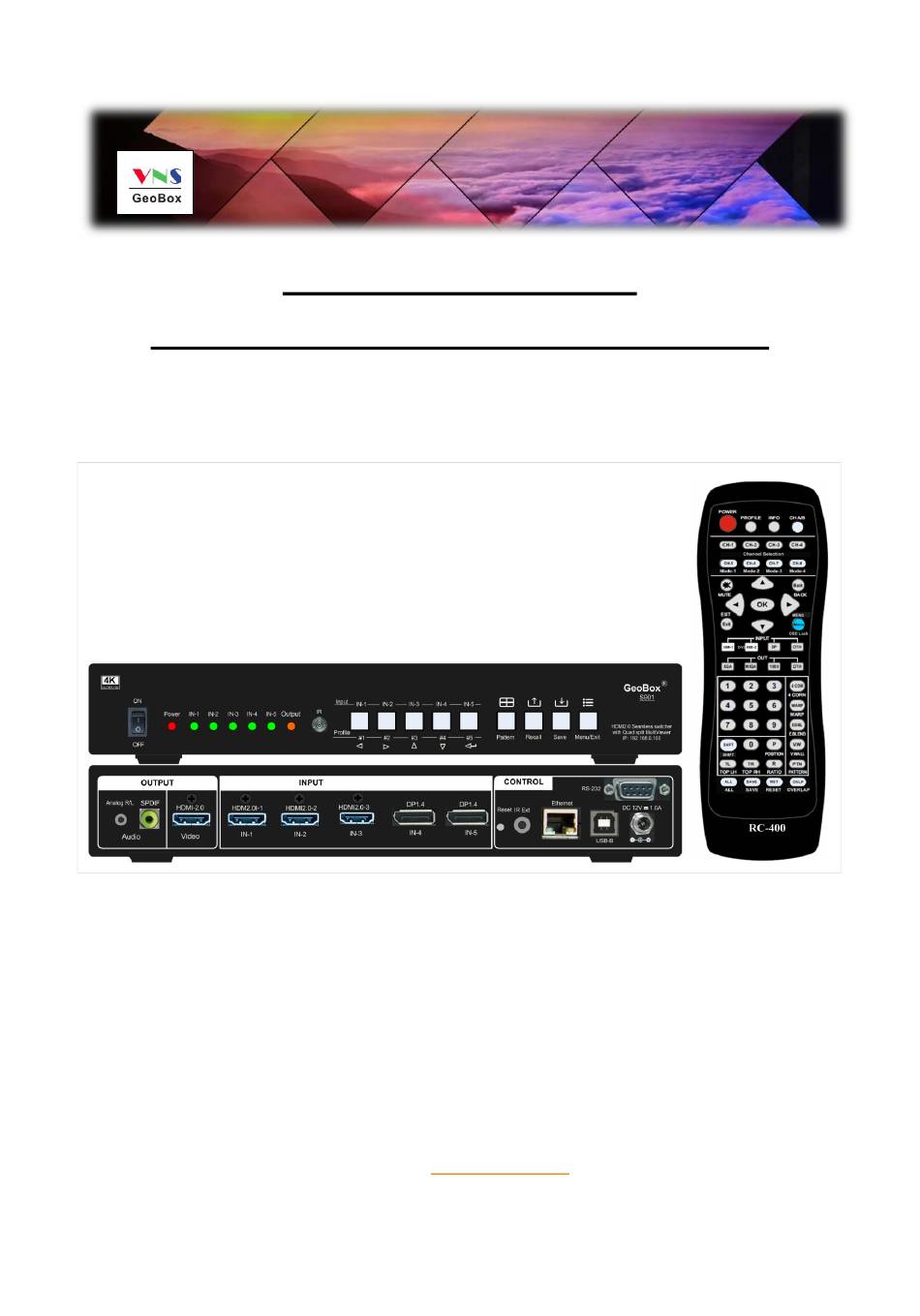

- Page 1 S901 Quick User Guide Document: S901-3 ----------------------------------------------------------------------------------------------------------------------------- ---------------- The absolute opposite of ordinary S901 Quick User Guide 5x1 Seamless UHD switcher with Quad Split Views Technical support: E-mail: sales@vnstw.com Tel: +886-2-2792-2819 Cell: +886-935-678-033 Skype: vns-inc Version: 1.02 Website: www.vnstw.com...
- Page 2 Input LED will turn to green when S901 has detected input signal. ➢ When user selects the input for display, LED will turn to orange. ➢ Output LED will turn to orange when S901 has detected display device in the output.
- Page 3 S901 Quick User Guide Document: S901-3 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Seamless switching for main input ➢ Seamless switching function is only functional for main input with single image display. ➢ Select from green LED port and click input selection button to switch input port. The LED will turn to orange light when the input port has been selected.
- Page 4 ➢ When user selects the input for display, LED will turn to orange. ➢ Output LED will turn to orange when S901 has detected display device in the output. ➢ Power LED: ➢ RED Power LED lighted: Power connected and has been turned off by remote controller. Need to turn on by remote controller again.
- Page 5 S901 Quick User Guide Document: S901-3 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Back panel User can connect signal source to any of the input ports for main display and PIP/POP operation. Analog RL/LH System control Input Ports, HDMI 2.0 & DP 1.4 Audio Output...
- Page 6 S901 Quick User Guide Document: S901-3 ----------------------------------------------------------------------------------------------------------------------------- ---------------- 5.1.2. Save system settings through IR remote controller ➢ Click [Save] hotkey on remote controller, then select # key to save custom settings. ➢ 10 profile Indexes can be saved from remote controller. “0” represents Index #10.
- Page 7 S901 Quick User Guide Document: S901-3 ----------------------------------------------------------------------------------------------------------------------------- ---------------- More display patterns selected from OSD 6.1. Step 1 Click MENU key to open OSD→ [Image Properties]→ [PIP setting]→ [Display] 6.2. Step 2 Select required display pattern→ Select input source→ Save to Profile Index #.
- Page 8 S901 Quick User Guide Document: S901-3 ----------------------------------------------------------------------------------------------------------------------------- ---------------- Main and Sub-window input source selection ➢ One of the display windows is Main-window and the rest are sub-window. Main-window input source can be selected directly from front panel keypads. ➢ Sub-window input signal can only be selected from OSD by remote controller or front panel keypads.
