California Air Tools

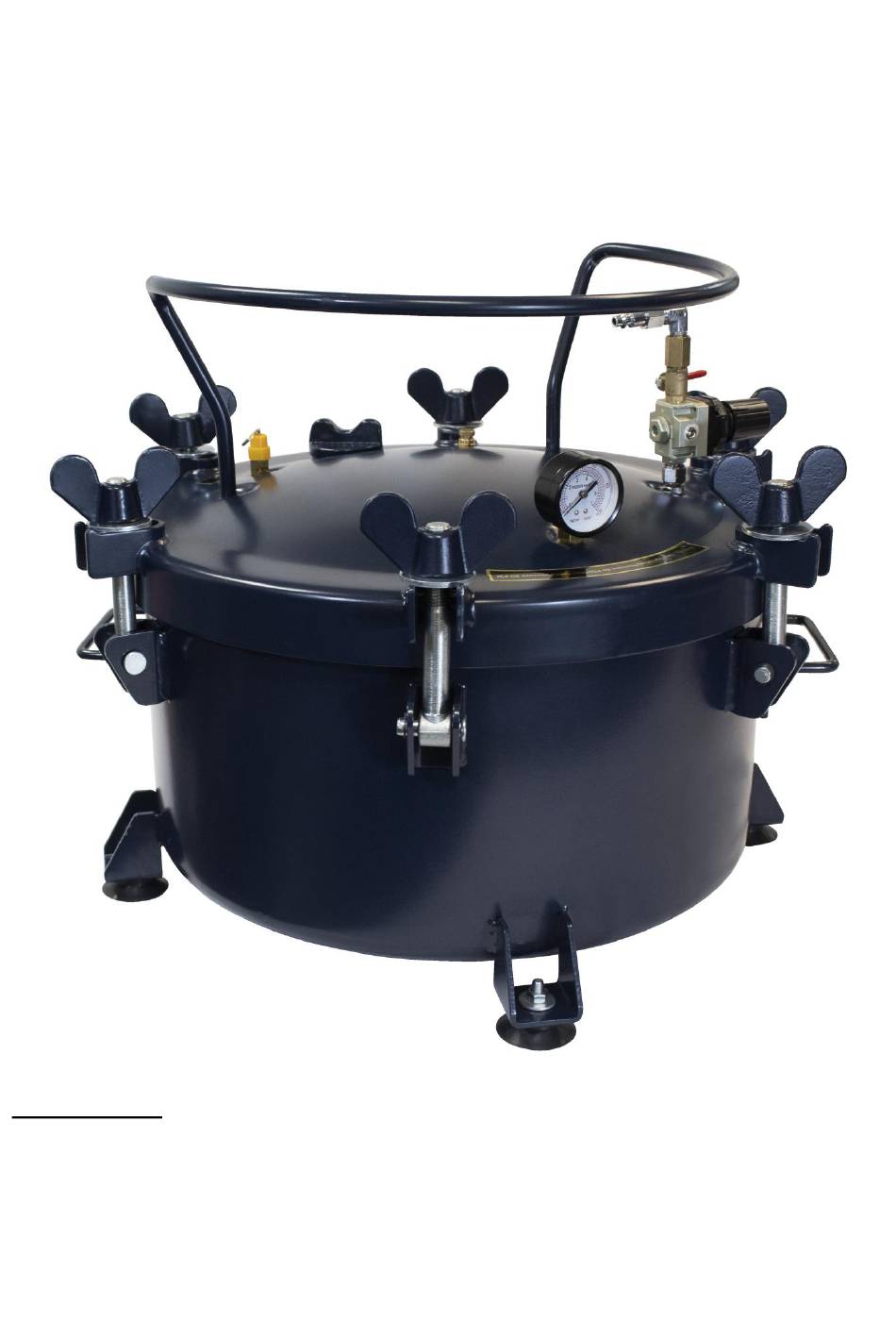

10 Gallon Casting Pressure Pot
Model No. 1810C
Technical Data
Item ................................................................................................................1810C
Maximum pressure in the tank............................................................................80 PSI
Working pressure in the tank..............................................................................60 PSI
Tank capacity..........................................................................................40 I (10.0 gal)
Air Inlet..................................................................................................1/4" Industrial
Interior......................................................................... Diameter 17 3/4" & Depth 9 5/8"
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for California Air Tools 1810C
Summary of Contents for California Air Tools 1810C
- Page 1 California Air Tools 10 Gallon Casting Pressure Pot Model No. 1810C Technical Data Item ……………………………………………………………………………………….…………1810C Maximum pressure in the tank……………………………………………………………...….80 PSI Working pressure in the tank…………………………………………………………………...60 PSI Tank capacity………………………………………………………………………………40 I (10.0 gal) Air Inlet………………………………………………………………………………….….1/4” Industrial Interior………………………………………………………………. Diameter 17 3/4" & Depth 9 5/8"...
-
Page 2: Important Safety Instructions
Safety Guidelines- Definitions NOTE! Information that you should pay special attention to. DANGER! URGENT SAFTEY INFORMATION A HAZARD THAT WILL CAUSE SERIOUS INJURY OR LOSS OF LIFE CAUTION! Information for preventing damage to equipment WARNING! IMPORTANT SAFETY INFORMATION A HAZARD THAT MIGHT CAUSE SERIOUS INJURY OR LOSS OF LIFE Important Safety Instructions Save These Instructions IMPROPER OPERATION OR MAINTENCE OF THIS PRODUCT COULD RESULT IN SERIOUS... - Page 3 Assembly Read the instructions carefully Read instructions carefully before using this product. This equipment can be used to supply up to a maximum of 80 (PSI). Operating PSI is 60 PSI. This equipment has an air regulator, pressure gauge, safety valve and outlet. The tank has been coated to last. Air Compressor Use an air compressor that can produce at less 90 PSI.
- Page 4 WARNING! Risk of tank explosion. 1. Modifications to the tank’s design or construction could weaken it. Assemble tank components in accordance with the service instructions. Do not drill into tank, or weld attachments, or alter its design in any manner. 2.
- Page 5 Maintenance and Storage 1. Close the air flow to the equipment. 2. Release all air pressure in the tank by pulling the safety valve ring until the pressure subsides. 3. Rotate the tank regulator handle “T” counterclockwise until you do not feel any tension in the spring.
-
Page 6: Troubleshooting
Trouble Shooting WARNING! If any of the following symptoms appears during your operating, stop using the tool immediately, or serious personal injury could result. Only a qualified persons or an authorized service center can perform repairs or replacement of tool. Disconnect tool from air supply before attempting repair or adjustment. - Page 7 EXPLOSIVE DRAWING OF CAT-1810C DESCRIPTION DESCRIPTION LID HANDLE BAR M16 WING NUT INLET VALVE M16 WASHER SAFETY VALVE LID SIDE BRACKET ELBOW CONNECTOR M16 BOLT PIN φ12 S14 CONNECTOR G1/4 BALL VALVE TANK SIDE BRACKET PRESSURE REGULATOR KIT TANK SIDE HANDLEBAR...
-
Page 8: Limited Warranty
This warranty does not transfer to subsequent owners. CALIFORNIA AIR TOOLS, Inc. will repair or replace, at its option, any parts that are proven by an authorized service center to be defective in material or workmanship under normal use during the applicable warranty time period as stated above.
