PRODUCT INSTRUCTION

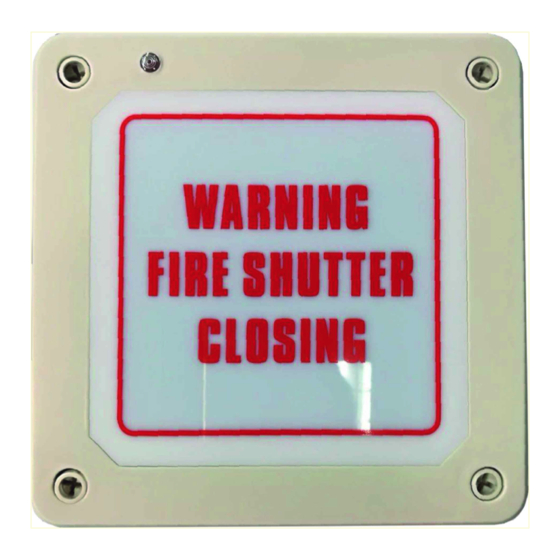

Fire Control Panel FDCP-01
Stock Code
FDCP - 01
Control Panel
Extension Repeater Panel
FDCP - Sounder
Description
Roundthorn Industrial Estate
Floats Road, Wythenshawe
Manchester, M23 9WB
Tel: +44 (0)161 - 945 - 4561
sales@ellard .co.uk
technical @ellard.co.uk
Doc No
PI - FDCP - 01
Iss
1
Date
01-09-2020
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Ellard FDCP-01
- Page 1 PRODUCT INSTRUCTION Roundthorn Industrial Estate Floats Road, Wythenshawe Manchester, M23 9WB Fire Control Panel FDCP-01 Tel: +44 (0)161 - 945 - 4561 sales@ellard .co.uk technical @ellard.co.uk Description Stock Code Doc No PI - FDCP - 01 FDCP - 01 Control Panel...
- Page 2 FDCP 01 (Revised 01/09/2020) Contents General 1) Specification Dimensions and Installation..............2) Board Layout........................ 3) Programming - DIP Switches and Auto Close Timer........... 4) Connections........................4.1 Power Supply ....................4.2 Motor........................4.3 Fire Signal......................4.4 Photocell......................4.5 Single Impulse Button..................4.6 Stop Button and Safety Brake................
- Page 3 General Multi Function Fire Control System for Roller Shutters Features Visual warning 'FIRE SHUTTER CLOSING' and 98 dB sounder Easy to program using internal DIP Switches Selectable fire signal using - Normally Open (N/O) or Normally Closed (N/C) volt free contact Connection for Low Voltage external controls by key-switch or push button operation Door Closing method by - Mains Power only...
- Page 4 Specification Dimensions and Installation General Power Supply 230v - 50Hz 2.4A @ 230v or 500Watts Max Motor Load 150mA @ 24v d.c Max Accessories Load Working Temp Protection Fuses Mains: F1 = T6.3A, Delayed Ext 24v d.c: F2 = T250mA, Delayed 98 dB (Decibels) Sounder Enclosure Rating...
- Page 5 Board Layout Repeater Aux Relay Panel On board button to Connection operate door Sounder Connection Connection Door Run Button Motor Run Timer Timer Status Indication OPEN Table 1 CLOSE 1 2 3 4 5 Setup STATUS 1 2 3 4 5 1 2 3 4 5 1 2 3 4 1 2 3 4...
- Page 6 Programming The Fire Shutter Control Settings To suit most site requirements the FCP-01 control panel can be programmed to close or open a door in the event of fire using a selection of various DIP Switch settings Table 1 - Setup Notes No Function Aux relay pulses 3 times before door movement...
- Page 7 ..(continued) Table 4 - Fire Options Notes Door CLOSES on fire alarm Door OPENS on fire Alarm Panel requires a N.O Fire alarm signal to activate Panel requires a N.C Fire alarm signal to activate Aux relay operates for the same time as the alarm signal **Function Only active in fire **Function only active in (see note)
- Page 8 4.1) Power Supply Connection 4.5) Single Impulse Button Connection Connection from fused spur 230v, 50Hz, 13A FIRE UPS/Battery Back Up Logic Operation The Link must remain fitted OPEN-STOP-CLOSE between STOP and COM -STOP 4.6) Stop Button or Safety Brake Connection 4.2) Motor Connection FIRE...
- Page 9 5.0) Status Indication and trouble shooting Table 4 - Fire Options No Motor Action Motor operating - Open Direction Open RED then Check motor connection - Open Direction drops out or Motor faulty OPEN after 1 sec CLOSE No Motor Action Motor operating - Close Direction STATUS Close...
- Page 11 7.0) Commissioning Connect all required devices e.g motor, key-switch (photocell optional) If no photocell is used ensure link is fitted between 0v and SIG If a key swiitch is used ensure link is fitted between COM and STOP Turn Run Time Dial fully clockwise to give max run time (52 sec's) Apply Power Before setting the travel limits, turn the motor current sensing OFF by Moving DIP SW 5 (Table 1 - SETUP) to ON position...
