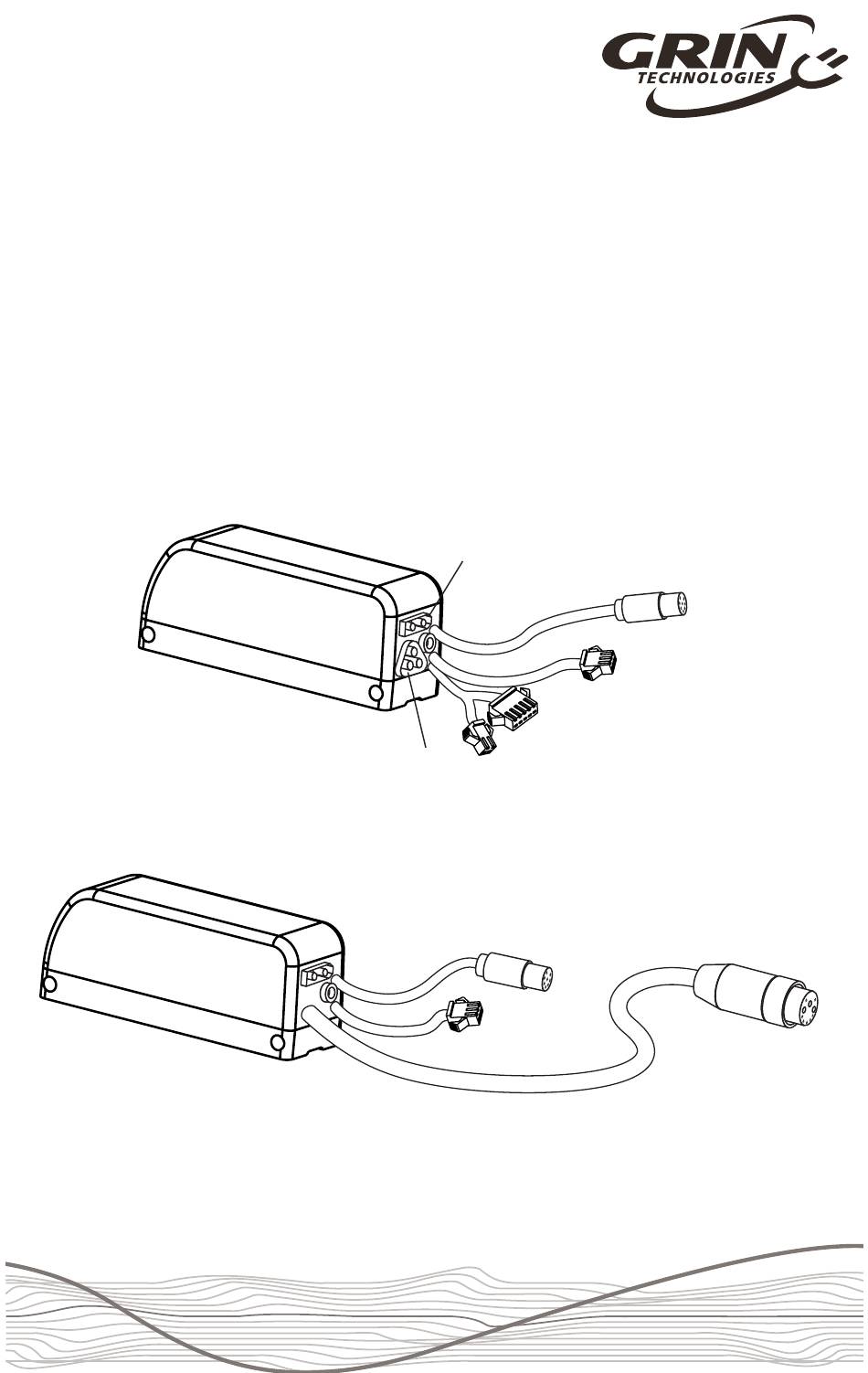

- Page 1 The Phaserunner V3 Updates over V2 Model Phaserunner_MT Battery Input Power (XT60) Throttle Cable CA3-WP Cable Motor Hall Cable Motor Therm and Speed Motor Phase (MT60) Phaserunner_L10 CA3-WP Cable Throttle Cable 52cm Cable to L1019 Motor Plug...
- Page 2 This is the latest V3 model of Grin's Phaserunner motor controller. Although most of the details are similar to the V2 user manual, we have updated several of the connector and wiring specifications as explained here. 1) ) Cycle Analyst Plug WP8 Plug: This controller now uses an 8 pin waterproof plug for the Cycle Analyst instead of the 6 pin JST standard from previous controllers.
- Page 3 3) Motor Signal Pass-Thru: On the L10 model, motor temperature and speed signals travel through the L1019 motor cable directly to the WP8 plug for the Cycle Analyst. On the Phaserunner_MT model, there is an extra 2 pin JST connector available to pass these additional signals to the Cycle Analyst Plug if desired.
- Page 4 MT60 Pinout* L1019 Motor Cable Pinout Blue Phase (3mm ) Speed Signal (White) Green Green Hall 5V (Red) Phase Themistor (Grey) Yellow Phase (3mm ) Gnd (Black) Blue Hall Blue Yellow Yellow Hall Phase Phase Green Phase (3mm ) * Pin-colour combinations are intentionally CA3-WP8 Plug different from Higo pin-colour standard Pinout...
