SURFACE MOUNT BACKBOX
1. DESCRIPTION
The BX-41S is a Surface Mount Backbox for the MW-41BT Audio Interface. It is designed to mount
directly to a wall in indoor or in mild wet environments when sealed correctly. It uses a key lock
mechanism for opening and securing the door.

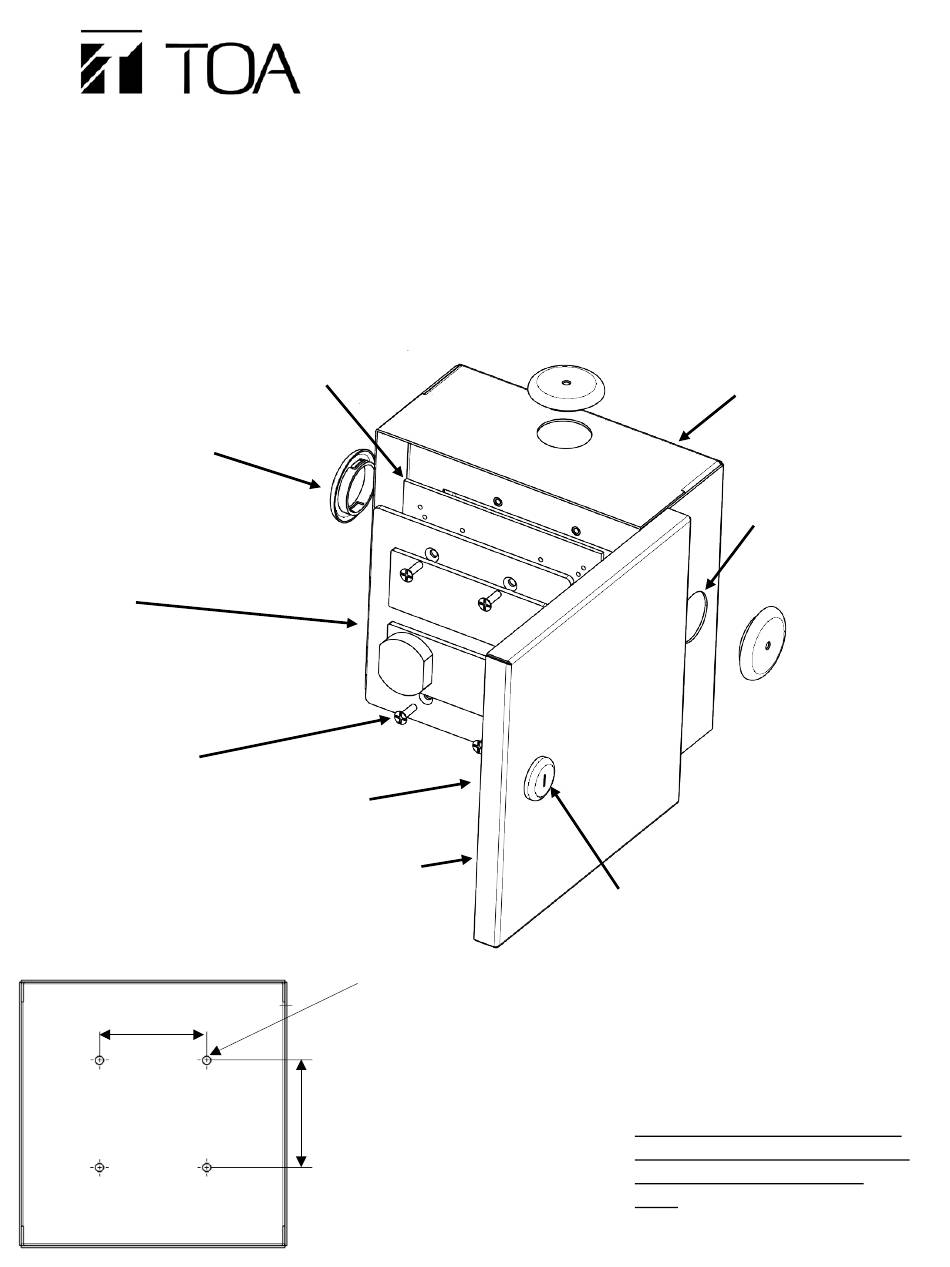

2. INSTALLATION
Sealing Gasket
Sealing Plugs (4)
MW-41BT
(Not Included)
(4) Flat Head Screw
Stainless Steel, Phillips Drive
#6-32 x ½"
Mounting Hole Pattern
(Mounting hardware not included)
2.47"
(62.7mm)
Door
Sealing Gasket (not
shown; inside door
around perimeter)
4x Ø0.19" (Ø4.8mm)
Use customer-supplied
#8 or M4 fasteners
2.47"
(62.7mm)
TOA Canada Corporation
INSTALLATION MANUAL
Surface Mount Backbox
Cable / Conduit Entry
Holes (4 x Ø1.0")
Key Lock, 90-deg Turn
• Key removable in open and closed
positions.
• Press door firmly into Back Box and
engage lock to ensure a tight seal
• 2 keys included (not shown)
Note: When mounting directly to
a wall, please make sure to tightly
seal all edges to avoid water
entry.
www.toacanada.com
BX-41S
Advertisement
Summary of Contents for Toa BX-41S
- Page 1 BX-41S 1. DESCRIPTION The BX-41S is a Surface Mount Backbox for the MW-41BT Audio Interface. It is designed to mount directly to a wall in indoor or in mild wet environments when sealed correctly. It uses a key lock mechanism for opening and securing the door.
- Page 2 Key Removable in Both Positions Shipping: 1.22 kg (3.4 lbs) Weight Product: 1.54 kg (2.7 lbs) Note: this is not the MW-41BT operating temperature, to get the audio interface operating temperature please refer to its specification sheet/operations manual TOA Canada Corporation www.toacanada.com...
