1、产品简介：
1，Product Overview:
AIR-02 型是一款小型高灵敏度的辐射剂量报警仪，主要用来监测 X 射线、γ射线和硬β
射线。该仪器采用能量补偿型 GM 计数管作为探测器，具有灵敏度高，测量准确等特点；选
用了功能强劲的微处理器，配备了点阵 TFT 显示器，使操作简便人性，具有很强的抗干扰能
力。声音报警方式，当达到报警阈值时，发出警报及时提醒工作人员注意安全。仪器的主要
技术指标符合国家标准和国际标准， 是目前国内同类仪器中功能强、 体积小、 功耗低的仪器。

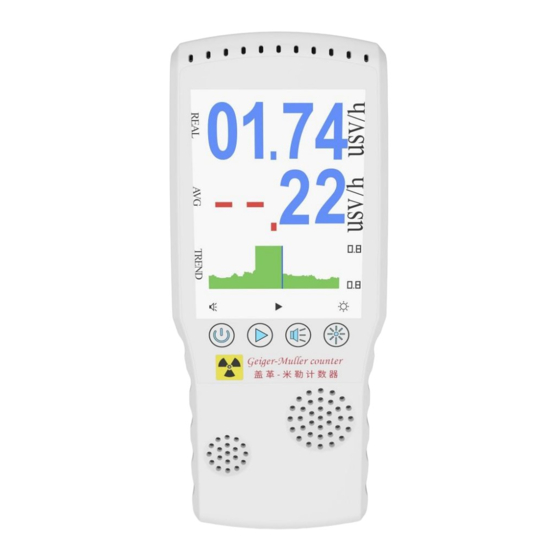

AIR-02 alramer is a small and high sensitive radiation dose detector, which is designed to
monitor X-rays, γrays and hard β rays. The instrument adopts energy compensated GM counter
tube as the detector, which has the characteristics of high sensitivity and accurate
measurement. The microprocessor with powerful function is selected and equipped with dot
matrix TFT display, which makes the operation simple and user-friendly, and has strong
anti-interference ability. Sound alarm mode, when the alarm threshold is reached, the alarm will
be sent out to remind the staff to pay attention to safety in time. The main technical indicators of
使用说明书
Instrution Manual
——AIR-02 辐射剂量报警仪
——AIR-02 Radiation Dose Detector
1
Advertisement
Table of Contents
Summary of Contents for Minix AIR-02
- Page 1 力。声音报警方式，当达到报警阈值时，发出警报及时提醒工作人员注意安全。仪器的主要 技术指标符合国家标准和国际标准， 是目前国内同类仪器中功能强、 体积小、 功耗低的仪器。 AIR-02 alramer is a small and high sensitive radiation dose detector, which is designed to monitor X-rays, γrays and hard β rays. The instrument adopts energy compensated GM counter tube as the detector, which has the characteristics of high sensitivity and accurate measurement.
- Page 2 the instrument meet the national and international standards, and it is the instrument with powerful function, small size and low power consumption in the same kind of instruments in China. 2、应用场合 2, Application 广泛应用于家装辐射、辐照加工企业、卫生防疫、放射性治疗、核实验室、核电站、进 出口商检、建材、石油化工、地质普查、废钢铁、工业无损探伤等存在电离辐射环境下。 It is widely used in home improvement radiation, irradiation processing enterprises, health and epidemic prevention, radiotherapy, nuclear laboratories, nuclear power plants, import and export commodity inspection, building materials, petrochemicals, geological censuses, scrap iron and steel, industrial non-destructive testing and other environments where ionizing radiation...
- Page 3 50mSv 四肢（手和足）或皮肤的年当量剂量 Yearly equivalent dose for limbs (hands and legs) 公众成员所受的辐射源的照射， 包括获准的源和实践所产生的照射和在干预情况下收到的照 射，但不包括职业照射、医疗照射和当地正常天然本底辐射的照射。 Exposure to radiation sources by members of the public, including exposure from authorized sources and practices and exposure received in intervention situations, but excluding occupational exposure, medical exposure and exposure to normal local natural background radiation.
- Page 4 Power consumption: 0.25W h.温度特性：-10℃～+50℃≤±10% Working Temperature：-10℃～+50℃≤±10% i. 重量：266g Product Weight:266g 5、显示屏内容 5.Display contents a.电池电量指示（低电量状态时，指示标志闪烁，提醒用户用 USB 线充电） Battery Level Indicator (When the battery is in low state, the indicator flashes to remind the user to recharge battery by USB cable.) b.R，剂量率报警指示（仅在剂量率报警时声音报警） R, Dose Rate Alarm Indicator (Only sound alarm when the dose rate is on lower level.) c.开机...
- Page 5 When the instrument is turned off, long press the button for 3 seconds to power on.Press the button to enter the statistical measurement interface. On this interface, turn on (or off) the statistical measurement function by pressing the button; b.报警方式:仪器可通过按 来启动或关闭，在开机状态下，本机默认发声模式，...
- Page 6 instrument will go off and shut down; otherwise press the button to return to the menu settings interface；Long press 1s to turn on or off the backlight and enter the power saving mode. 7、安全提示： Safety Tips: 仪器意外跌落 请确认辐射剂量示值是否正常，是否会更新。若发 When the instrument falls 现异常，请勿将仪器应用于高强度辐射的场所。...
