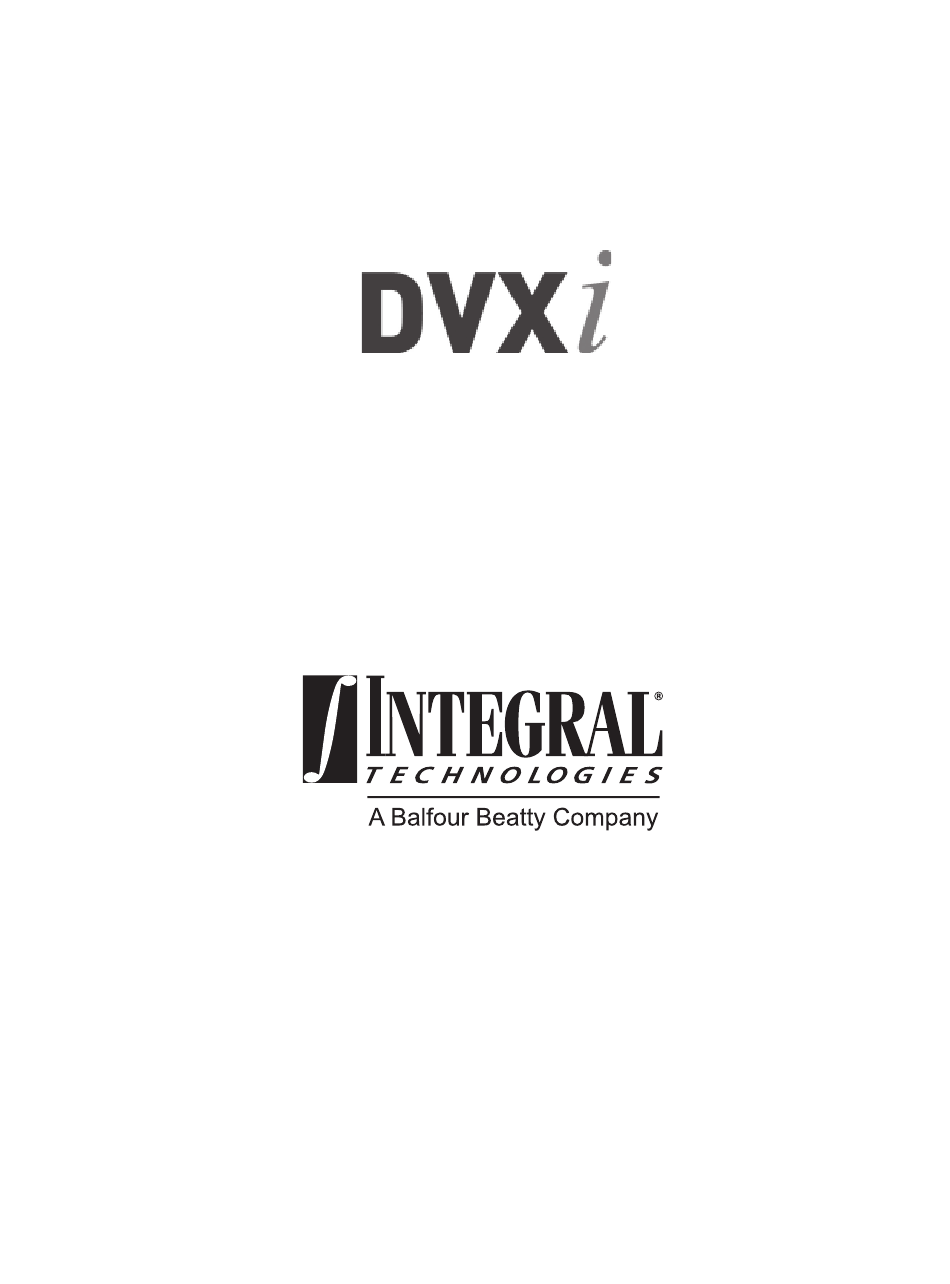

User Manual
DVXi 4.0
April 2003
Information in this document is subject to change without notice.
© Copyright 2003, Integral Technologies. All rights reserved.
MasterControl and Integral Technologies are trademarks of Integral Technologies. Other trademarks
and trade names may be used in this document to refer to either the entities claiming the marks or
names or their products. Integral Technologies disclaims any proprietary interest in trademarks and
trade names other than its own.
Integral Technologies makes no warranty of any kind with regard to this material, including, but not
limited to, the implied warranties of merchantability and fitness for a particular purpose. Integral
Technologies shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this manual.
Integral Technologies
9855 Crosspoint Blvd., Suite 126
Indianapolis, Indiana 46256 U.S.A.
#3000-40060 Rev. 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Integral Technologies DVXi TS4
Summary of Contents for Integral Technologies DVXi TS4
- Page 1 Integral Technologies disclaims any proprietary interest in trademarks and trade names other than its own. Integral Technologies makes no warranty of any kind with regard to this material, including, but not limited to, the implied warranties of merchantability and fitness for a particular purpose. Integral Technologies shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this manual.
-
Page 2: Table Of Contents
What This Manual Covers ..................3 Precautions......................4 Installation................... 5 Installing DVXi TS4 and DVXi TBC4..............6 Installing DVXi TS9 D and DVXi TBC9 D............... 8 Installing DVXi TS9 RM/TS16 and DVXi TBC9 RM/TBC16........10 Installing DVXi XM16 and DVXi XM32..............12 Installing XMUX .................... - Page 3 MasterControl Operation ..............59 Viewing Live Video on the Monitor Page ............. 60 Selecting Recording Modes................. 66 Setting a Recording Schedule ................67 Searching for Recorded Video ................78 Viewing Recorded Video ..................83 Exporting Captured Images and Video ..............84 Viewing Disk Usage ....................
-
Page 4: Introduction
Introduction Thank you for purchasing a DVXi digital event recorder, a high-tech moni- toring and recording solution to cover all your security needs. This chapter introduces you to your DVXi system and the structure of this manual. Included in this chapter are the following: •... -
Page 5: About The Dvxi Series
ABOUT THE DVXi SERIES The DVXi digital event recorder is a high-tech monitoring and recording solution that covers all your security needs. The following products are the heart of the DVXi package: • The DVXi box captures and compresses video for digital display from up to 16 cameras for safe storage and easy access. -
Page 6: What This Manual Covers
WHAT THIS MANUAL COVERS This manual takes you through the following topics, complete with illustrations, step-by-step instructions, and detailed descriptions: • Installation—includes instructions for installing the DVXi system and running MasterControl for the first time. • Getting Familiar with MasterControl—describes the basic setup of the MasterControl screen. -
Page 7: Precautions
PRECAUTIONS RISK OF ELECTRIC SHOCK—DO NOT OPEN Caution To reduce risk of electric shock, do not remove the cover or back of the DVXi system. There are no user-serviceable parts inside. Refer servicing to qualified personnel only. LITHIUM BATTERY—DANGER The battery should be replaced only by a service technician. The Caution battery is a non-operator-replaceable cell. -
Page 8: Installation
(monitor, mouse, and so on) and XMUX (DVXi XM16 and DVXi XM32 only). This chapter contains specific instructions for the following: • Installing DVXi TS4 and DVXi TBC4 • Installing DVXi TS9 D and DVXi TBC9 D •... -
Page 9: Installing Dvxi Ts4 And Dvxi Tbc4
INSTALLING DVXi TS4 and DVXi TBC4 Use Figure 1 to complete the following installation instructions. Plug the power cord into the power connector (A). Plug the mouse into the mouse connector (B). Plug the keyboard into the keyboard connector (C). - Page 10 R E A R P A N E L O F D V X i T S 4 a n d D V X i T B C 4 Figure 1 The rear panel of DVXi 4-camera systems. The placement of system components may vary depending on which options are installed.
-
Page 11: Installing Dvxi Ts9 D And Dvxi Tbc9 D
INSTALLING DVXi TS9 D and DVXi TBC9 D Use Figure 2 to complete the following installation instructions. Plug the power cord into the power connector (A). Plug the mouse into the mouse connector (B). Plug the keyboard into the keyboard connector (C). To provide a network or dial-up connection, connect a network cable to the network connector (D) or a phone line to the optional modem (J). - Page 12 R E A R P A N E L O F D V X i T S 9 D a n d D V X i TB C 9 D Figure 2 The rear panel of DVXi 9-camera systems (desktop chassis). The placement of system components may vary depending on which options are installed.
-
Page 13: Installing Dvxi Ts9 Rm/Ts16 And Dvxi Tbc9 Rm/Tbc16
INSTALLING DVXi TS9 RM/TS16 and DVXi TBC9 RM/TBC16 Use Figure 3 to complete the following installation instructions. Plug the power cord into the power connector (A). Plug the mouse into the mouse connector (B). Plug the keyboard into the keyboard connector (C). To provide a network or dial-up connection, connect a network cable to the network connector (D) or a phone line to the optional modem (H). - Page 14 R E A R P A N E L O F D V X i TS 9 R M an d D V X i TB C 9 R M INPU T 1 INPU T 2 INPU T 3 INPU T 4 INPU T 5 INPU T 6 INPU T 7...
-
Page 15: Installing Dvxi Xm16 And Dvxi Xm32
INSTALLING DVXi XM16 and DVXi XM32 Use Figure 4 to complete the following installation instructions. Plug the power cord into the power connector (A). Plug the mouse into the mouse connector (B). Plug the keyboard into the keyboard connector (C). To provide a network or dial-up connection, connect a network cable to the network connector (D) or a phone line to the optional modem (G). - Page 16 R E A R P A N E L O F D V X i X M 16 an d D V X i X M 32 Figure 4 The rear panel of DVXi XM 16- and 32-camera systems. The placement of system components may vary depending on which options are installed.
-
Page 17: Installing Xmux
INSTALLING XMUX (DVXi XM16 and DVXi XM32 ONLY) XMUX is a 16- or 32-input digital video multiplexer. When used with DVXi XM16 or DVXi XM32, XMUX delivers 60 unique images of video every second to the DVXi system, which digitizes and stores the images. To install XMUX, complete the following steps using Figure 5 as a guide: Make sure the 25-pin connector of the XMUX Cable (F) is connected to the DB-25 connector on the DVXi box, as described in the DVXi XM16... - Page 18 X M U X C a ble R E AR P AN E L O F X M U X -1 6 A ux1 A ux3 O u tp u ts A lar m In pu ts I/O P or t 10 11 12 13 14 15 16 O u t A ux2...
-
Page 19: Running The Mastercontrol Application
RUNNING THE MASTERCONTROL APPLICATION When you turn on the DVXi system for the first time, MasterControl automati- cally runs (you can also manually run the application from Start, Programs, and MasterControl). When you see the Enter Password window, enter “administrator” for User and “letmein”... -
Page 20: Accessing The Mastercontrol Database
ACCESSING THE MASTERCONTROL DATABASE Only Windows users with Administrator permissions can operate MasterControl initially; all other users see an error when they try to start the application. How- ever, Windows users without Administrator permissions can be added manually to the list of valid MasterControl users. To grant a non-Administrator Windows user access to the MasterControl database, complete the following steps while logged on to Windows with Administrator permissions: From the C:\Program Files\Integral\MasterControl directory, run...
