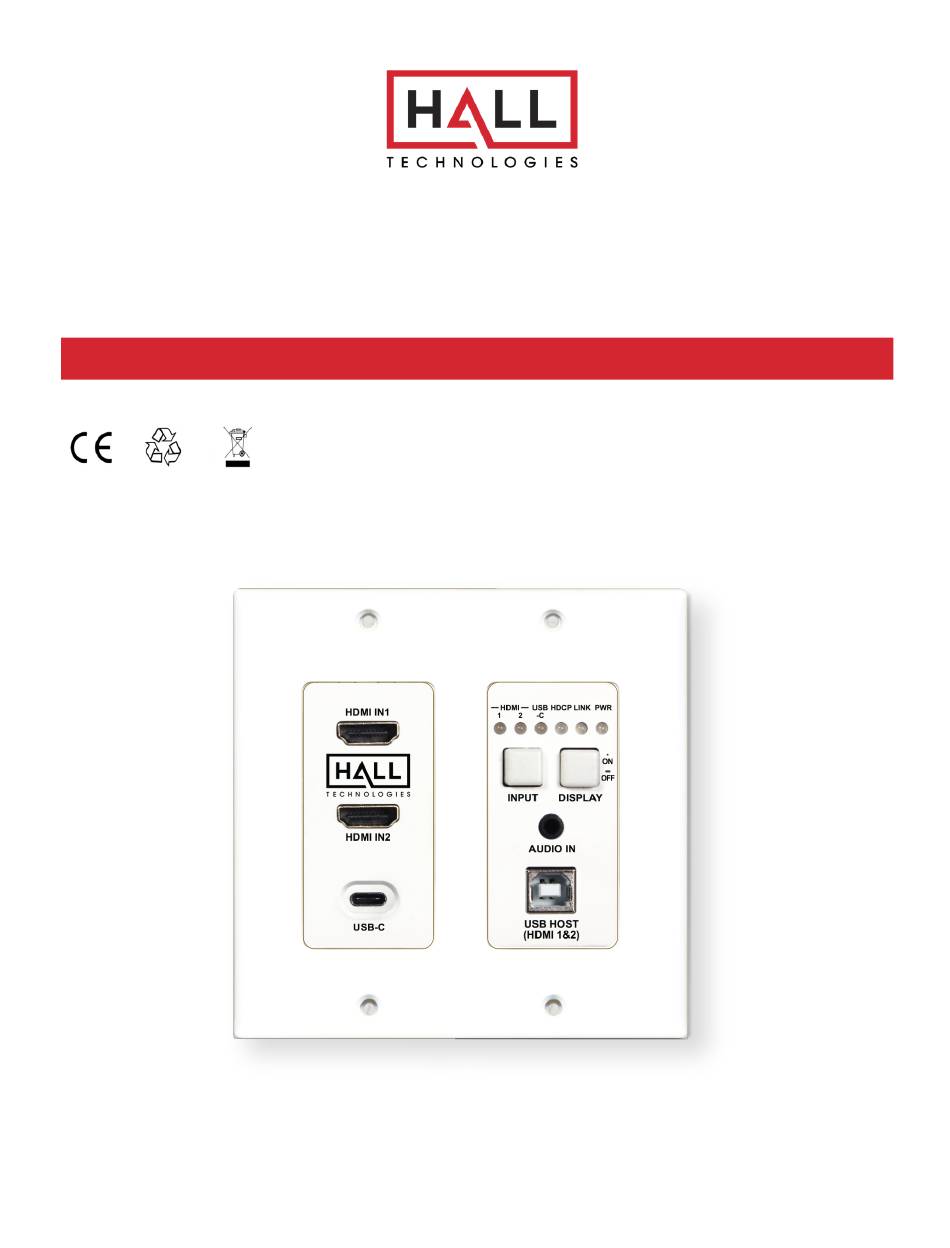

- Page 1 Hall Technologies • 1234 Lakeshore Dr Suite #150 Coppell, TX 75019 • halltechav.com DSCV2-70-TX-US 4K UHD In-Wall Transmitter with USB host and CEC Triggering User Manual Version: V1.0.0 Hall Technologies June 3, 2022 Page 1 of 13...
- Page 2 8. Protect the power cord from being walked on or pinched particularly at plugs. 9. Only use attachments / accessories specified by the manufacturer. 10. Refer all servicing to qualified service personnel. Hall Technologies June 3, 2022 Page 2 of 13...
-
Page 3: Table Of Contents
Features .......................... 4 Package Contents ......................5 Specifications ......................... 6 Panel Description ......................8 Front Panel ......................8 Rear Panel ......................9 Wiring ............................10 Automatic Switching ....................... 11 Device Control ......................... 12 Hall Technologies June 3, 2022 Page 3 of 13... -
Page 4: Introduction
Ÿ High-speed USB 2.0 pass-through over HDBT up to 70m Ÿ PoH capable – can be powered by connected receiver with PSE module Ÿ Firmware upgrade through Micro USB port Hall Technologies June 3, 2022 Page 4 of 13... -
Page 5: Package Contents
Ÿ 1 x Wall Plate Plastic Panel (2‐Gang US, with Screws) Ÿ 1 x USB B to A Cable Ÿ 1 x Phoenix Male Connector (3.5mm, 4 Pins) Ÿ 4 x Mounting Screws Ÿ 1 x User Manual Hall Technologies June 3, 2022 Page 5 of 13... -
Page 6: Specifications
Operating Temperature 0°C to 45°C (32°F to 113°F) Storage Temperature -20°C to 70°C (-4°F to 158°F) Humidity 10% to 90%, non-condensing Human-body Model: ESD Protection ±8kV (Air-gap discharge)/ ±4kV (Contact discharge) Hall Technologies June 3, 2022 Page 6 of 13... - Page 7 Note: T568B straight-through Category cable is recommended. Cable Type Range Supported Video Cat 5e/6 60m/197ft 1080P@60 36bpp Cat 6a/7 70m/230ft Cat 5e/6 35m/115ft 4K@30Hz 4:4:4 24bpp 4K@60 4:2:0 24bpp Cat 6a/7 40m/131ft Hall Technologies June 3, 2022 Page 7 of 13...
-
Page 8: Panel Description
Ÿ On: Corresponding USB-C input signal is being transmitted. USB-C LED Ÿ Off: No USB-C signal is being transmitted or signal is unstable. HDCP LED Ÿ On: Video signal is being transmitted. Hall Technologies June 3, 2022 Page 8 of 13... -
Page 9: Rear Panel
Ÿ Display Off: Hold press for at least 3 seconds to turn off the display device. AUDIO IN Pass-through audio input. Connect to an audio source. USB HOST USB-B input. Connect to a USB host device. (HDMI 1&2) Rear Panel Hall Technologies June 3, 2022 Page 9 of 13... -
Page 10: Wiring
4. Connect an HDMI display and USB devices to the receiver. 5. Power on the receiver. 6. Connect the video sources and USB host device to the transmitter. 7. Select a desired video source through automatic or manual switching function. Hall Technologies June 3, 2022 Page 10 of 13... -
Page 11: Automatic Switching
Disconnect the cable from your desired video source, and then connect it again. Use the Input Selection button on the front panel or API commands to select your desired video source. Hall Technologies June 3, 2022 Page 11 of 13... -
Page 12: Device Control
Before sending the API command to control the transmitter, ensure the transmitter and control PC are configured correctly. Parameters Value Baud Rate 115200 bps Data bits 8 bits Parity None Stop bits 1 bit Flow control None Transmitter Hall Technologies June 3, 2022 Page 12 of 13... - Page 13 © Copyright 2022. Hall Technologies All rights reserved. 1234 Lakeshore Drive Suite 150, Coppell, TX 75019 halltechav.com / support@halltechav.com (714)641-6607 Hall Technologies June 3, 2022 Page 13 of 13...
