- Page 1 INSTRUCTION MANUAL SD P UMP S M A R C H 2 0 2 0...

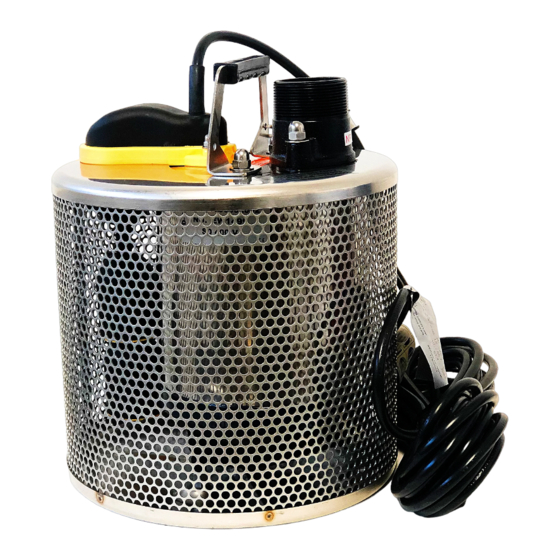

- Page 2 WHAT IS THE SITE DRAINER 400V? Site Drainer 400V is a 304 stainless steel, electric, submersible dewatering pump system using patented technology to remove water without clogging. ü It continues to perform when other pumps clog and fail ü It has virtually limitless applications ü...
-
Page 3: How It Works
HOW IT WORKS Canister surrounding the pump diffuses Integrated Internal Vertical float § § water suction pressure over a large area guarantees operation despite debris § Fine mesh openings allow particles § Optional burlap sack accessory <6.35mm (.25 inch) to pass eliminates erosion concerns Patented, free-flow design technology Uses standard electric current –... -
Page 4: Specifications
SPECIFICATIONS Model SD 400V Type Submersible Pump Impeller Polyurethane Discharge Size 2” Maximum 3685 gallons/hr Pumping 61 gallons/min Capacity Discharge Height 5’, 3685 gal/hr Above Pumping 10’, 3340 gal/hr Level 15’, 2988 gal/hr 20’, 2505 gal/hr 25’, 1943 gal/hr 30’, 1267 gal/hr 36’, 0 gal/hr... - Page 5 SPECIFICATIONS Model SD 400V Power 0.5 HP (.400 kW) Voltage 110 v Power cable length 33’ one-piece molded rubber Running Amps 5.6 amps (capacitor start) Thermal Overload Protection Dimensions 13.5”H, 11” D Dry Net Weight 34.05 lbs. Temperature 34 - 104 F Intermittent usage to 140 F (max.
-
Page 6: Things To Know
THINGS TO KNOW Internal integrated vertical float prevents debris from interfering with smooth § operation § 2” male discharge port – at top of pump, accepts 2” NPT female hose For greater versatility, can come with quick connect coupling § §... - Page 7 THINGS TO KNOW Pump and motor section form a pressure-tight encapsulated unit § § Motor housing constructed from stainless steel § Shaft is made of stainless steel § Impeller made of Polyurethane (a very tough and corrosion resistant plastic) Watertight cable inlet connection chamber with wick-free cover and and built-in §...
-
Page 8: Safety Information
SAFETY INFORMATION Pump water only § § Never use worn or damaged cables. Inspect for cuts in the insulation. § Never attempt to use the power cord as a lifting or lowering device for the pump § Always lift the pump by it’s carrying handle or attached rope to carrying handle §... - Page 9 WARNING Do not operate near potentially explosive environment § § Do not use in presence of flammable liquids or gases Make sure product is properly grounded and provided with leakage breaker § to prevent users from serious electric shock § Always turn off the power before inspection, maintenance, and adjustment §...
- Page 10 WARNING Always protect the electric plug or end of power cable from invasive § moisture § Never touch the piping or electrical connections while the pump is running Never touch the water while the pump is connected to electricity § §...
-
Page 11: Product Warranty
PRODUCT WARRANTY Site Drainer’s sole obligation under this warranty shall be limited to the repair or replacement of any parts that the Seller determines, at its discretion, to be defective. The warranty is void if the damage is caused by the following factors: §... -
Page 12: Pump Installation
Should there be any problems that occur during installation, please contact a Site Drainer representative DO NOT dismantle the product before/during installation without any authorized instructions from Site Drainer T H E N O N - C L O G G I N G S O L U T I O N... -
Page 13: Maintenance And Inspection
MAINTENANCE AND INSPECTION Regular checkups and preventive maintenance will ensure a more reliable and safe operation. An initial inspection of the pump within 3 to 4 months after installation is recommended. Subsequent inspections/maintenance can be carried out every 6 months Always disconnect the pump from the power supply before inspecting the pump Make sure that the pump cannot roll or fall over to injure people and damage property... - Page 14 EU REGULATORY NOTICE AND UL LISTING The product complies with the following EU directives: 2006/42/EC Machinery Directive § 2014/35/EU Low Voltage Directive § § 2014/30/EU Electromagnetic Compatibility Directive UL 778 listing by May 1, 2020 T H E N O N - C L O G G I N G S O L U T I O N...
-
Page 15: Troubleshooting
TROUBLESHOOTING Problems Possible Causes Solutions Pump fails to start No electricity > Check power source Open circuit or poor connection > Check if there is an open circuit Impeller is clogged > Inspect the impeller Pump starts but stops Impeller is clogged > Inspect the impeller immediately Motor abnormal >... -
Page 16: Optional Accessories
OPTIONAL ACCESSORIES Check Valve with Quick Connect Burlap Sack Commercial Grade Discharge Hoses 1-1/2” Double Male Threaded 1-1/2” to 2” Threaded 1-1/2” PVC Fittings 1-1/2” Quick Disconnect Fittings Aluminum Fittings Plastic Fittings T H E N O N - C L O G G I N G S O L U T I O N...
