Summary of Contents for Wassermann WSM-2/ 500 W

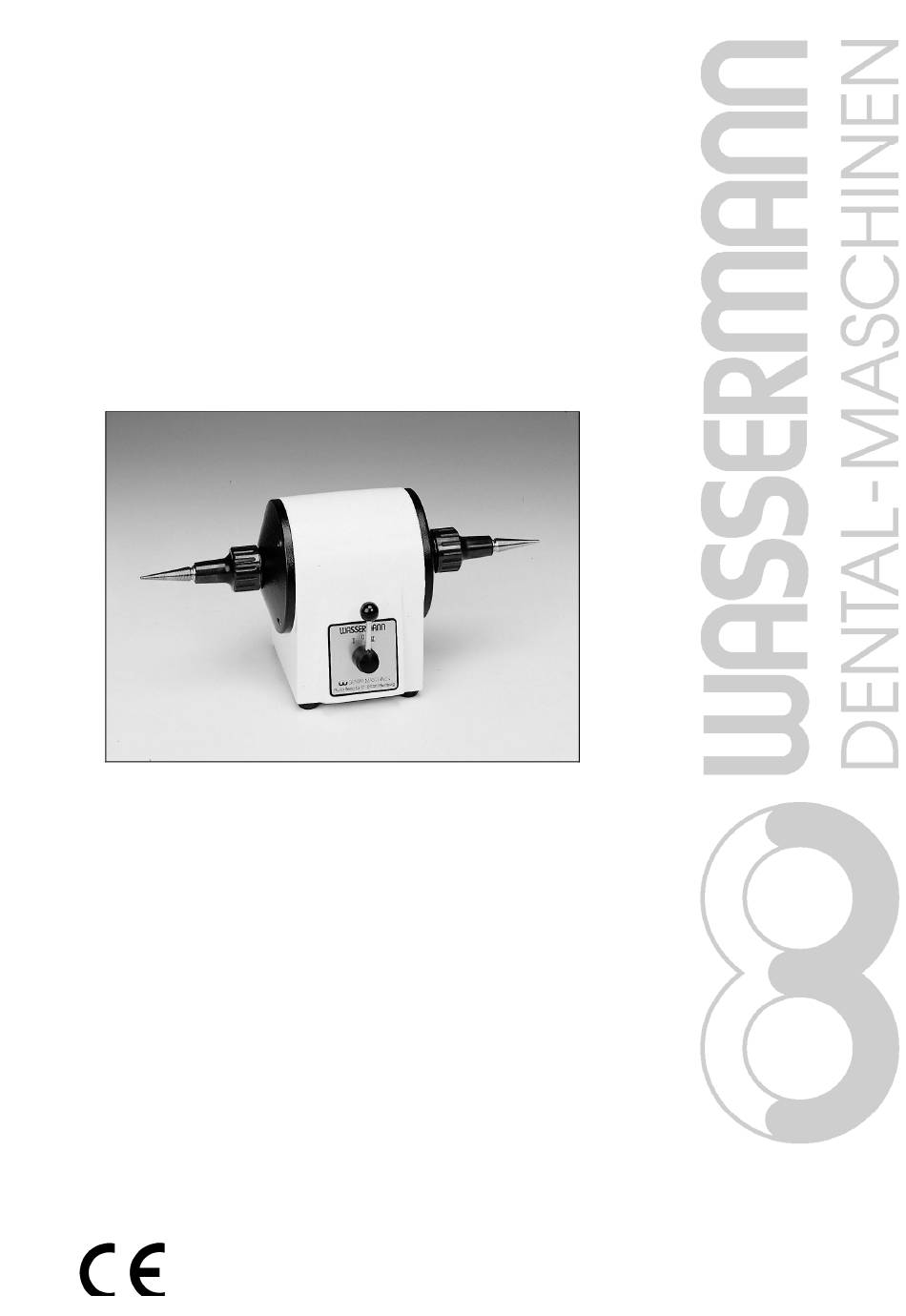

- Page 1 User manual WSM-2 / 500 W polisher motor Fig.: WSM-2 WASSERMANN DENTAL-MASCHINEN GMBH...
- Page 2 - 1 - Dear customer, Thank you for choosing a product from the Wassermann range. Wassermann dental equipment incorporates the highest standards of quality and the latest technology. In order to enjoy maximum performance and years of trouble-free operation from the equipment, please read this user manual carefully before you start work, and operate the unit according to the recommended guidelines.
-
Page 3: Table Of Contents
- 2 - Contents Contents ........................2 For your safety....................... 3 ................3 ORRECT USE OF THIS PRODUCT ..............3 AFETY SYMBOLS USED IN THIS MANUAL .................... 3 AFETY GUIDELINES ............4 ESPONSIBILITY FOR OPERATION AND DAMAGE .................... 4 UTHORIZED USERS Care and maintenance................... -
Page 4: For Your Safety
- 3 - 1 For your safety 1.1 Correct use of this product Your polisher motor is designed for polishing dental products. The nuts on each side are used for undoing the polishing spindle and as a form of shaft protection. 1.2 Safety symbols used in this manual Warning! This is a warning of risk situations and dangers. -
Page 5: Responsibility For Operation And Damage
The unit must be maintained and operated in accordance with this user manual. Wassermann Dental-Maschinen GmbH is not responsible for damage arising from the non-observance of these instructions. -
Page 6: Care And Maintenance
- 5 - 2 Care and maintenance 2.1 Maintenance Always disconnect the power cable before undertaking cleaning or maintenance. The model plate must always be legible and should not be removed. The equipment should be cleaned at regular intervals to ensure trouble-free operation. It requires only normal cleaning (sponge, damp cloth, mild detergent). -
Page 7: Use/ Application
- 6 - 3 Use/ Application The WSM-2 polisher motor is a well-proven, efficient and maintenance-free single- phase AC motor (induction motor) with 2 speed options: 1500 rpm and 3000 rpm. It is fitted with low-noise, completely maintenance-free ball bearings. Shaft ends have 9 mm standard tapers for mounting the brush spindles. -
Page 8: Set-Up And Storage
- 7 - 4.3 Set-up and storage The location of your polisher motor is very important for its operational reliability, even if it is only to be stored there for a short time. The room should be dry, well ventilated and vibration-free. An even temperature and wooden base are desirable. -
Page 9: Troubleshooting / Correcting Errors
- 8 - 7 Troubleshooting / Correcting errors Fault Likely cause Likely solution Ball bearing noise Faulty bearings Change bearings Spindles slip Spindles too Tap spindles lightly with a hammer loose Spindles can be Spindles too tight Contact Service undone on taper If the above recommendations do not solve the problem, contact your dental depot or our Service department. -
Page 10: Accessories And Spare Parts
- 9 - 7.2 Accessories and spare parts Accessories Item number Description 155022 Brush spindle, right 155025 Brush spindle, left Spare parts Item number Description 152022 Brush spindle, right 152025 Brush spindle, left 152043 Brush spindle, long version, 125 mm, right 152044 Brush spindle, long version, 125 mm, left 152056... -
Page 11: Ec Conformity Certificate
Hiermee wordt bevestigd dat bovengenoemde machine voldoet aan de voorgeschreven EU normen. Deze verklaring verliest geldigheid als er zonder onze uitdrukkelijke toestemming wijzigen aan de machine worden aangebracht. Place, date: Hamburg, 10 April 2003 Company stamp: Signed: ________________________ Wilfried Wassermann (Managing Director) - Page 12 - 11 - Notice:...
- Page 13 - 12 - Notice:...
- Page 14 - 13 - Notice:...
- Page 15 - 14 - Notice:...
- Page 16 WASSERMANN Dental-Maschinen GmbH Rudorffweg 15 – 17, D-21031 Hamburg / Germany Tel.: + 49 (0)40 / 730 926 – 0 Fax: +49 (0)40 / 730 37 24 e-mail: info@wassermann-dental.com Internet: http://www.wassermann-dental.com...
