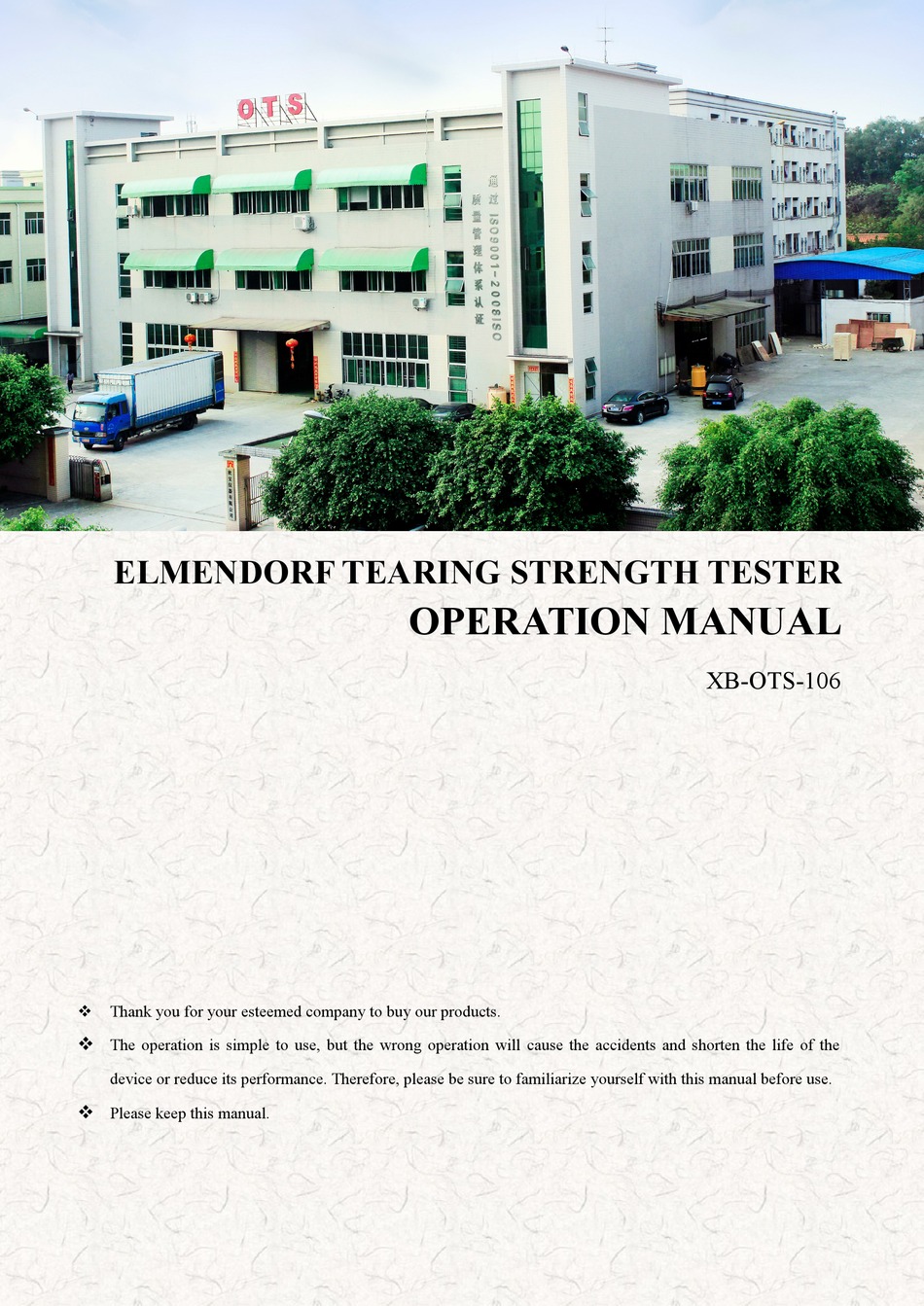

ELMENDORF TEARING STRENGTH TESTER
Thank you for your esteemed company to buy our products.
The operation is simple to use, but the wrong operation will cause the accidents and shorten the life of the
device or reduce its performance. Therefore, please be sure to familiarize yourself with this manual before use.
Please keep this manual.
Operation MANUAL
XB-OTS-106
Advertisement
Table of Contents
Related Manuals for Dongguan Xin Bao Instrument XB-OTS-106
Summary of Contents for Dongguan Xin Bao Instrument XB-OTS-106
- Page 1 ELMENDORF TEARING STRENGTH TESTER OPERATION MANUAL XB-OTS-106 Thank you for your esteemed company to buy our products. The operation is simple to use, but the wrong operation will cause the accidents and shorten the life of the device or reduce its performance. Therefore, please be sure to familiarize yourself with this manual before use.
- Page 2 Security Marks In this manual, there are following marks for security in operation. To avoid accidents and hazard, please obey the following precautions, warnings and notes: Danger This mark means workers may be hurt if he does not comply it. Warning This mark indicates the machine is possible to be damaged if it is not used by the right instructions.
- Page 3 Dongguan Xin Bao Instrument Co., Ltd I. Introduction The instrument consists of base, bearing base and fan-shaped hammer and other major component parts. A rectangular sample clamps between the dynamic clip 6 and fixed clip 7. Use the tearing knife 9 to cut a notch at the middle of the sample.
- Page 4 Dongguan Xin Bao Instrument Co., Ltd II. Specification Range of tearing strength: 0~16N A：0~32N (Small hammer A) B：0~64N (Big hammer B) Tearing length: 43mm Line length of cutting: 20mm±0.2mm Specimen size: 100（L）mm×63（W）mm Accuracy of measuring strength: ≤±1(scale mark) ...
- Page 5 Dongguan Xin Bao Instrument Co., Ltd fan-shaped hammer 4 lightly when it swings. Do not make the pointer affected and the pointer should be on the poison of zero. It there is deviation, please adjust the adjustment screw 5. Then repeat the above operations till the pointer is on the zero position.
- Page 6 Dongguan Xin Bao Instrument Co., Ltd VII. Maintenance The instrument should be cleaned regularly and also the spindle pointer should be oiled regularly. But there must be no oil between the pointer and the baffle or it will affect the force value.
