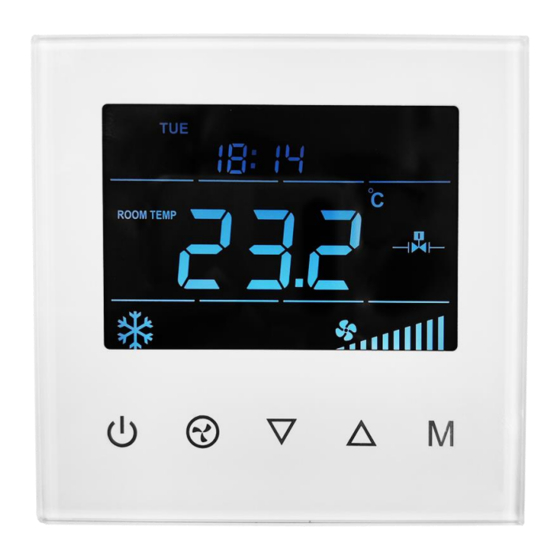

Zone thermostat for 2-pipe fancoil with 0-10 Vdc fan regulation and
valve management
User manual
Thank you for choosing the zone thermostat for 2-pipe fan coils with 0-10 Vdc fan regulation
and valve management. Z-Wave certified, the device is compatible with the gateways of the
MyVirtuoso Home home automation system.
www.myvirtuosohome.com
www.smartdhome.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MyVirtuoso Home Zone Thermostat and is the answer not in the manual?

Questions and answers

Summary of Contents for SmartDHOME MyVirtuoso Home Zone Thermostat

  • Page 1 User manual Thank you for choosing the zone thermostat for 2-pipe fan coils with 0-10 Vdc fan regulation and valve management. Z-Wave certified, the device is compatible with the gateways of the MyVirtuoso Home home automation system. www.myvirtuosohome.com www.smartdhome.com...
  • Page 2 Zone thermostat for 2-pipe fancoil with 0-10 Vdc fan regulation and valve management User manual Description and Technical features The zone thermostat for fan coils is a Z-Wave device for controlling the internal temperature. This device is designed to be applied to a 2-pipe fan coil system. It can detect the ambient temperature, the local time and automatically controls the fan speed based on the temperature difference.
  • Page 3 Zone thermostat for 2-pipe fancoil with 0-10 Vdc fan regulation and valve management User manual Remove the steel frame from the device and fix it to the junction box with two screws. Insert all wires into the appropriate terminals and tighten the screws. The wiring diagram is shown below.
  • Page 4 Zone thermostat for 2-pipe fancoil with 0-10 Vdc fan regulation and valve management User manual Operations ON/OFF To turn the device on and off, simply press the ON / OFF button Local time setting Press and hold the M button to access the settings menu. Select the local time and press M to move from Week to Hour to Minute, then press to set the parameters of the flashing item.
  • Page 5 Zone thermostat for 2-pipe fancoil with 0-10 Vdc fan regulation and valve management User manual 4. Room temperature ≤ set temperature -3 ° C, the fan turns on in fast speed. Note: the thermostat will operate on, off and speed of the fans only if they are open. Inclusion Before starting the procedure for including the device in a Z-Wave network, check that it is turned on, then make sure that the MyVirtuoso Home gateway is in inclusion mode (refer to...
  • Page 6 If you encounter technical problems or malfunctions, visit the site: http://helpdesk.smartdhome.com/users/register.aspx After a short registration you can open a ticket online, also attaching images. One of our technicians will answer you as soon as possible. SmartDHOME Srl V.le Longarone 35, 20058 Zibido San Giacomo (MI) info@smartdhome.com Product Code: 01335-1864-00...

This manual is also suitable for:

01335-1864-00
