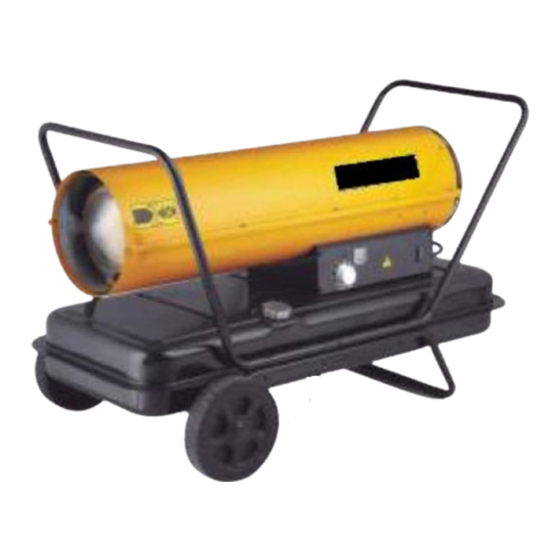

DIESEL/KEROSENE FORCED AIR HEATER Instruction for use...
Page 2
YOU SHOULD READ THE MANUAL CAREFULLY BEFORE USING, AND KEEP THE MANUAL WELL Contents Precautions-safety guide Page1 …………………………………………… Overview of heater design and Installation Page2 ……………………… Dimension t Page3 echnical parameters…………………………………… Technical parameters Page4 ……………………………………………… Prepare before using Page5 ………………………………………………… Operation Page6 ………………………………………………………………...
Page 3
【Precautions-safety guide】 page1 For your own and other’s safety please read this USER’S MANUAL and follow its instructions carefully. Danger ▲ 1、The use of gasoline is strictly prohibited, it is high volatile fuel that can cause an explosion or uncontrolled flames. 2、Never use the heater where flammable vapors may be present, there is danger of explosion, fire and burning。...
Page 4
overheating may cause fire. 3、Do not fill fuel tank while heater is in operation, make sure the heater stops and the flame is out. Filling while in operation may result causing fire。 4、Before use the appliance, make sure that the voltage and frequency on site is in accordance with the ones shown on rating plate.
Page 6
400mm 460mm 500mm 【Technical parameters】 page4 OUTPUT MOTOR POWE W Btu/h 69000 PRESS Kcal/h 17200 Continous using time hr OUTPUT AIR m3/h TANK CONTENT L Voltage,frequency,currency, AC230V 50Hz 1.2A FUEL Diesel oil, BURNING OIL L/hr kerosene SIZE 740x400x540mm OUTPUT MOTOR POWE W Btu/h 102500 PRESS...
Page 7
【preparation before the operation】 page5 1、 Never use high volatile fuel such as gasoline etc; 2、 Only fill the fuel tank when the heater stops running and the flame goes out; 3、 Please use No JIS1 kerosene or frostbite-prevent light diesel,never use degenerative, impure kerosene or diesel;...
Page 8
Attention 1、 Only check the appliance after flameout and removal of the power plug from power source; 2、 Before the ignition make sure there is no oil leakage, when oil leaks please don’t use the appliance and contact your dealer; 3、please check the fuel tank interior, clean the tank if there is water and waste in the tank.
Page 9
Flameout ◆ Pay attention 1、when you shut off the heater, make sure the flame is out before you left the appliance. 2、Put the power switch to position“0” waitting fan stop working and the indicator extinguishes, then remove the plug from the socket 3, DH-50 , has time-delay function , when heater off, fan will keep running 90s to make heater cold , then stop .
Page 10
Open the fuel cap to add kerosene/diesel in the tank. put on the fuel cap and plug the power cord in the socket. Turn the power switch on to position “1”, motor start working and the digital temperature display light up at this time. The left display window is setting temperature and right one is room temperature.
Page 11
【Introduction of the construction】 page8 ◆ burner head A. Burner assembly B.Air inlet pipe C.oil inlet pipe D.flame steady plate E.high voltage line F.spark plug ◆ spark plug the distance between the electrode should be in scope of 4-5 mm, to get the best ignition result.
Page 13
◆ Air pump page9 By maintenance the air pump must be proper assembled, to prevent low air pressure or air leakage. A. Pump blade B. Pump cover C. Air intake filter D. Pressure cover E. Air inlet guard F. Air outlet filter G.
Page 14
Trouble analysis page10 【 】 Before you send out the heater for repair please check the following points first, they are not faults: Problem reason It is normal. Because at the beginning Odor, smoke or spark omitted by the there are air and dust mixed in the first use burning.
Page 15
The heater do 1. Fuel exhausted 1. Fill the fuel tank not work, or 2. Pressure not correct 2. Adjust the pump pressure motor stop 3. Spark plug or the air lock is 3. Clean or exchange the spark working after corroded plug a short time,...
