FMI OUTLAND LIVING FM2BS-210 Owner's Manual

Princeton 2 burner gas stove
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

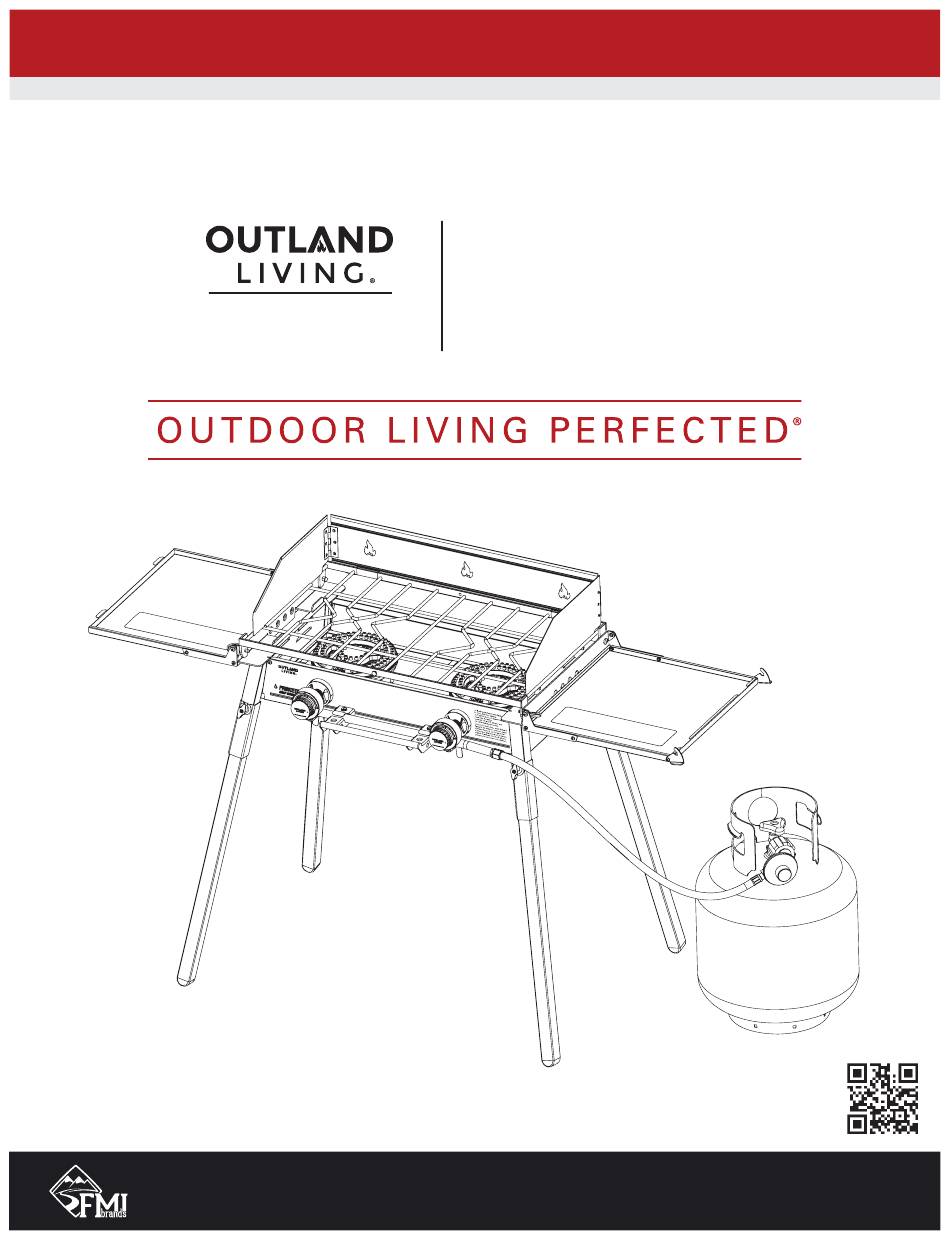

PRINCETON
2 BURNER GAS STOVE
Model number FM2BS-210
® is a registered trademark of FMI Brands Inc.
The OUTLAND flame is a registered trademark of FMI Brands Inc.
FMI BRANDS INC.
101 - 3570 194 Street | Surrey, B.C. Canada V3Z 1A5 | Toll Free 1-888-514-1663 | Fax 1-888-797-9931
Owner's
Manual
LP Cylinder
not included
D.210.000.V1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OUTLAND LIVING FM2BS-210 and is the answer not in the manual?

Questions and answers

Related Manuals for FMI OUTLAND LIVING FM2BS-210

Summary of Contents for FMI OUTLAND LIVING FM2BS-210

  • Page 1 Model number FM2BS-210 ® is a registered trademark of FMI Brands Inc. The OUTLAND flame is a registered trademark of FMI Brands Inc. D.210.000.V1 FMI BRANDS INC. 101 - 3570 194 Street | Surrey, B.C. Canada V3Z 1A5 | Toll Free 1-888-514-1663 | Fax 1-888-797-9931...
  • Page 2 Owner & Safety Manual PRINCETON 2 BURNER GAS STOVE SUMMERLAND Model number FM2BS-210 - Tested by CSA International ANS Z21.89-2017/CSA 1.18-2017 Outdoor Cooking Specialty Gas Appliances This instruction manual contains important information necessary for the proper assembly and safe use of this product. Read and follow all warnings and instructions before assembling and using the appliance.
  • Page 3 CARBON MONOXIDE HAZARD This appliance can produce carbon monoxide which has no odor. Using it in an enclosed space can kill you. Never use this appliance in an enclosed space such as a camper, tent, car, or home. WARNING: WARNING: Do not store or use gasoline or other For outdoor use only.
  • Page 4 Owner & Safety Manual PRINCETON 2 BURNER GAS STOVE SUMMERLAND SECTION 1: ASSEMBLY (continued) d) Close the grill and set the 2x grill locking pins. Ensure both 2x pin ball bearings are fully through the holes and the ball bearing engagement should be visible on the other side.
  • Page 5 SECTION 1: ASSEMBLY (continued) STEP 4 : ENSURE THE STOVE IS LEVEL AND STABLE Most ground terrain is uneven. The stove should be level and stable STEP 3: STANDING DEPLOYMENT prior to operation. If the stove is not level, or does not make solid a) Place appliance on a level, stable, non-combustible surface.
  • Page 6 Owner & Safety Manual PRINCETON 2 BURNER GAS STOVE SUMMERLAND SECTION 1: ASSEMBLY (continued) 4. Store the legs safely away from appliance. SETUP: TABLE TOP DEPLOYMENT 1. Place appliance on a level, stable, non-combustible surface. 5. Close the grill and set the 2x grill locking pins. Ensure both 2x pin ball bearings are fully through the holes and the ball bearing engagement should be visible on the other side.

  • Page 7: Extinguishing The Appliance

    SECTION 2: IGNITION (continued) STEP 6 Using a lighter or match, ignite lighter and hold flame slightly above the burner, then open the valve on the appliance slowly by turning (counter-clockwise) until the unit ignites. Should the appliance fail to ignite on the first try, promptly repeat the ignition attempt within 5 seconds. If a third attempt fails to ignite the appliance then rotate the knob to the “off”...

  • Page 8: Ignition Troubleshooting

    Owner & Safety Manual PRINCETON 2 BURNER GAS STOVE SUMMERLAND SECTION 5: IGNITION TROUBLESHOOTING APPLIANCE WON’T LIGHT? IGNITION PROBLEM? CORRECTIVE ACTION: a. Confirm your gas cylinder is NOT empty. IGNITION TROUBLESHOOTING b. Close the propane cylinder valve. 1. Ensure all appliance valve(s) are OFF and the cylinder valve is c.

  • Page 9: Appliance Dimensions

    SECTION 6: STOVE WIDTH (LIDS DEPLOYED) 1290 mm [50.8”] APPLIANCE DIMENSIONS (Approximate) Front LP Cylinder not included APPLIANCE DIMENSIONS GRILL AREA LENGTH (COMPACT TRANSPORT/STORAGE) 624 mm [24.5”] 660 mm [26”] LENGTH TABLE TOP DEPLOYMENT - Top TABLE TOP DEPLOYMENT - Front LP Cylinder not included En-8...

  • Page 10: Operational Safety

    Owner & Safety Manual PRINCETON 2 BURNER GAS STOVE SUMMERLAND SECTION 7: OPERATIONAL SAFETY Keep the appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. DANGER: Keep the fuel supply hose away from any heated surface(s). 1) Never leave the appliance unattended while in use.
  • Page 11 Spheres and Tubes for the Transportation of Dangerous xiii. Replacement parts and a list of such parts are available from Goods. FMI Brands Inc. through the contact information provided on b. Provided with a UL listed Overfill Protection Device (OPD). the last page of this Manual.

  • Page 12: Lp Cylinder Removal, Transport And Storage

    Owner & Safety Manual PRINCETON 2 BURNER GAS STOVE SUMMERLAND SECTION 7: OPERATIONAL SAFETY (continued) WARNING: CAUTION: The LP Hose is a trip hazard! Ensure that gas hose is placed in When making the connection, hold the regulator in a straight an area where it is unlikely to be tripped over (such as pathways line with the cylinder valve, so as not to cross thread the or trails) or subject to other accidental damage.
  • Page 13 SECTION 7: OPERATIONAL SAFETY (continued) 1. Ensure the LP cylinder valve is CLOSED and the appliance gas d) If no adverse reaction is observed and the connections all valves are “OFF”. seem fine then move to the ignition sequence. 2. Ensure all gas system coupling joints are tight and properly 6.

  • Page 14: Appliance Maintenance

    Owner & Safety Manual PRINCETON 2 BURNER GAS STOVE SUMMERLAND SECTION 8: APPLIANCE MAINTENANCE Your Outland appliance requires periodic maintenance to keep it in good running order. Follow the steps below to ensure your appliance will provide you with the best possible performance: 1.
  • Page 15 SECTION 8: APPLIANCE MAINTENANCE (continued) BURNER VENTURI INSPECTION Inspect and clean the cast aluminum burner venturi tubes often and especially if the stove has been sitting unused for a period of time. To inspect and clean the burner venturi you must remove each cast aluminum burner separately.

  • Page 16: Warning Notes

    WWW.OUTLANDLIVING.COM The owner’s manual is available as a free download from www.outlandliving.com Should you have any questions or comments regarding this appliance, please do not hesitate to contact FMI Brands Inc. at (888) 514-1663 or E-Mail to info@outlandliving.com. En-15 OUTLAND LIVING - PRINCETON 2-BURNER STOVE OWNER & SAFETY MANUAL...
