Installation Manual
F
loormount Vanity

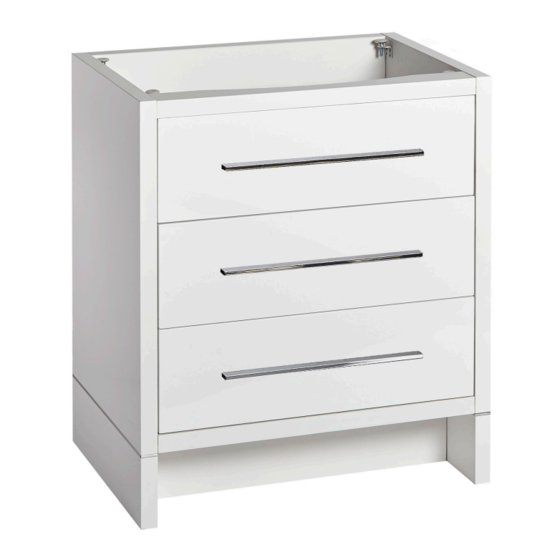

Plato Floormount Vanity
Installation Manual
TWO PERSONS
REQUIRED
Please read notices on following page
PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.
Dimensions of fixtures are approximate and may vary ± 6mm (1/4"). Structure measurements must be verified against the unit to ensure proper fit.
Advertisement
Table of Contents
Summary of Contents for Aura Plato Floormount Vanity
- Page 1 Installation Manual loormount Vanity Plato Floormount Vanity Installation Manual TWO PERSONS REQUIRED Please read notices on following page PRODUCT SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. Dimensions of fixtures are approximate and may vary ± 6mm (1/4”). Structure measurements must be verified against the unit to ensure proper fit.
- Page 2 Do not disassemble the main body, as it has been installed & commissioned correctly & precisely before leaving the factory. • Keep receipts (proof of purchase and place of purchase) for this product. The receipt is required should it be necessary to request warranty parts. MAINTENANCE & CARE FOR YOUR AURA PRODUCTS • •...
- Page 3 Installation Manual Parts List ITEM DESCRIPTION ITEM DESCRIPTION Right Plate - D1 Back Plate - D2 Inside Plate - D3 Front Plate - D4 Left Plate - D5 Wooden Peg Chrome Trim Fasten Screw Screw Cap Floor Protector Vanity Base Pegged Connector Wall Bracket Product images and specifications are for illustrative purposes only, product design may vary.
- Page 4 Installation Manual Kickplate Installation Arrange the kickplate pieces in order with Back Plate (2) towards the wall the Right Plate (1) to the right of the Back Plate (2) and the Left Plate (5) adjacent on the other side. Place the Front Plate (4) and the Inside Plate (3) as showin the Diagram 1.
- Page 5 Installation Manual Wall Bracket Installation Line the Vanity Base (11) after the kickplate has been installed up to the wall and draw a horizontal line from end to end. Remove the Vanity Base (11) from the wall and place the Wall Bracket (13) Screw Position Horizontal Line...
