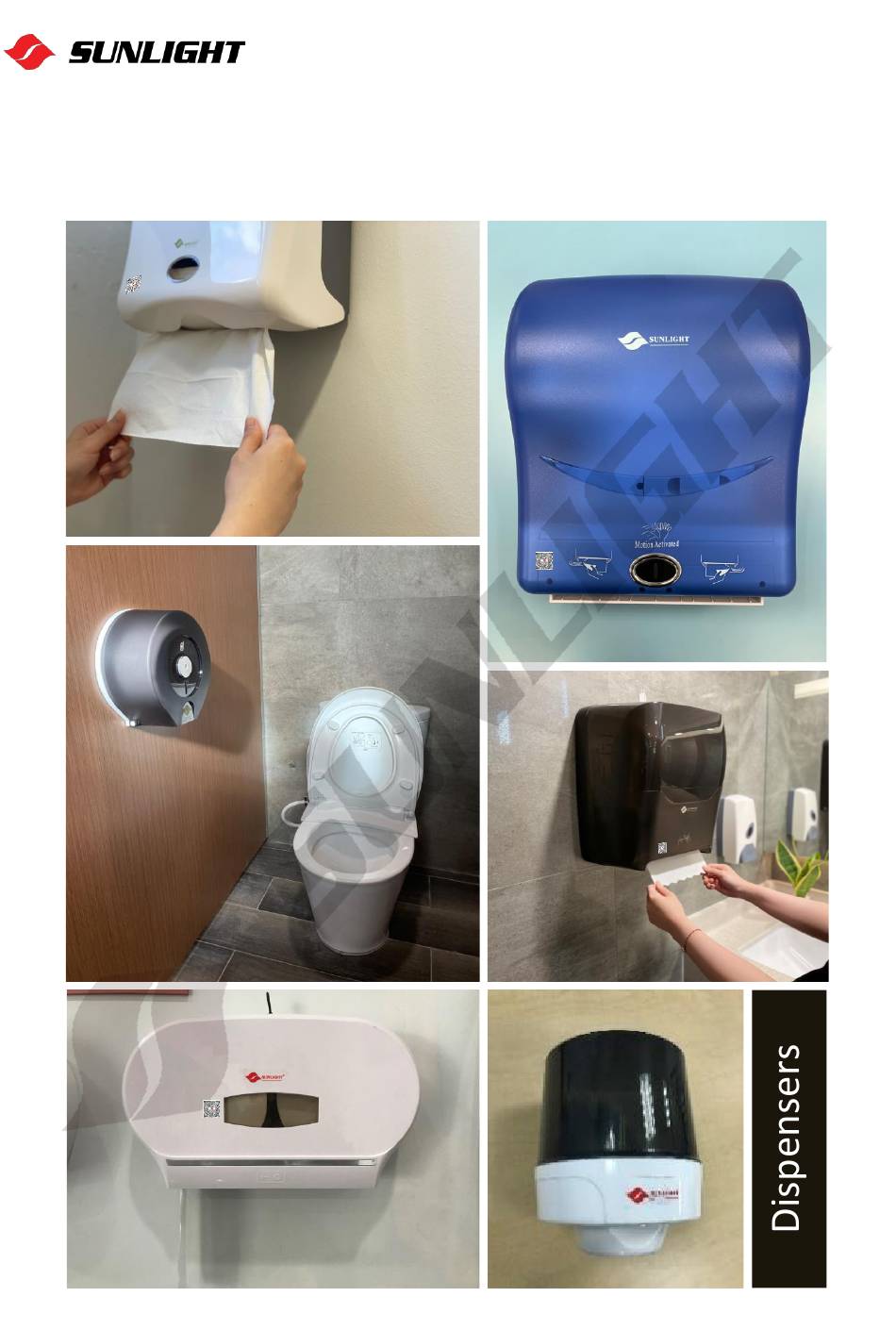

- Page 1 Dispenser Installation Guide...
- Page 2 This installation guide caters to the following dispensers e-CUT (SZ 0401) SENSOR PAPER DISPENSER ART-394 CENTREPULL DISPENSER ART-SL810 AUTO CUT PAPER TOWEL ART-396 TWIN ROLL DISPENSER DISPENSER ART-512 JUMBO ROLL DISPENSER ART-SL2008 TWIN ROLL DISPENSER...
- Page 3 You may use the 3M heavy duty / mounting tape for the following dispensers ART-518 INTERLEAVED DISPENSER ART-812 PAPER HAND TOWEL DISPENSER DC 800 SOAP DISPENSER...
- Page 4 Always wear appropriate protective gear Follow safety regulations and procedures Safety Goggles Ear Plugs Respiratory Mask You will need the following tools: 4 screws & 4 wall anchors (electric) Screwdriver Tape measure Electric drill Hammer Marker or pencil...
- Page 5 How high should you mount paper dispensers? Reach limits for soap and hand towel dispensers do not differ in locations for instance, bathrooms, kitchens and pantry. Recommended height to install a dispenser is between 1300- 1520mm above the floor. Following NEA regulations for amenities to be provided in public toilet, paper towel dispenser shall be provided for every two count of wash hand basins, subject to a minimum of one.
- Page 6 How high should you mount JRT dispensers? From side view, mount within 180-220mm in front of toilet from centerline and 760-890mm above the floor. 180-220mm 890mm 760mm Centerline Following Regulations, from top view, mount within 350-400mm from centerline of toilet bowl to cubicle wall.
- Page 7 How high should you mount JRT dispensers in ambulant disabled toilets? Following Regulations, jumbo toilet roll dispenser is allowed provided it is reachable & does not interfere with the use of grab bars. • 150 mm ≤ Ht ≤ 200 mm above the horizontal grab bar •...
- Page 8 Measure the desired height of the Tools required Step 1: dispenser from the floor 760mm-890mm from the floor Mark your hanging points using a Step 2: marker or pencil...
- Page 9 Drill into the hanging points using the Tools required Step 3: electric drill Do not make the hole wider than the wall anchors Use a hammer to tap the wall anchors Step 4: into the wall...
- Page 10 Place the dispenser on the wall and Tools required Step 5: insert the screws into the wall anchors Use a screwdriver or electric Step 6: screwdriver to tighten the screws Step 7: Installation complete!
