Summary of Contents for STC SC-1001A

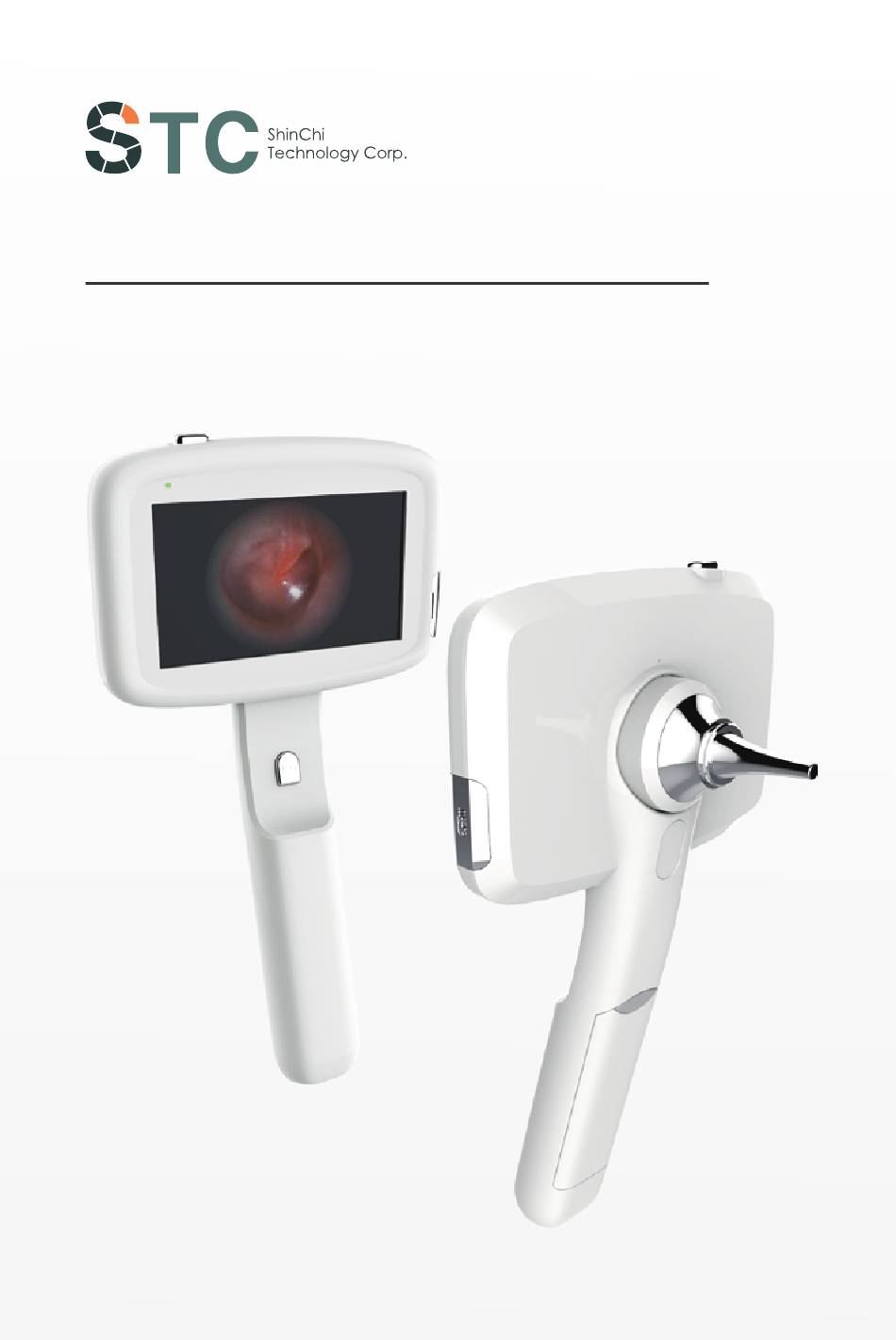

- Page 1 SC-1001A/AR Quick Guide World First handheld 4.3 inch Touch Screen Display Portable Otoscope...
- Page 3 1. Safety and Declaration of Conformity ....02 1-1. Safety Considerations 1-2. Declaration of Conformity 2. Instruction ............03 2-1. Intended Use 2-2. Intended User Profile 2-3. Intended Patient 2-4. Environments 2-5. Warnings and Precautions 3. Name and Function of Each Part ....... 04 4.
-
Page 4: Safety Considerations
1. Safety and Declaration of Conformity 1-1. Safety Considerations This symbol reminds the user should read instruction/manual carefully before operating this device. This symbol cautions the user that important information regarding the operation and / or maintenance of this equipment has been included. Information preceded by this symbol should be read carefully to avoid damage to the equipment or miss operation. - Page 5 2. Instruction 2-1. Intended Use The Portable 4.3” TP ENT Endoscope is primary designed for ease of use and portability, enabling ENT (ear, nose, throat) medical inspection operations to be possible to be carried out in areas where no fixed power source is available. This device is internally powered equipment to be used alone.
-
Page 6: Name And Function Of Each Part
3. Name and Function of Each Part Snap/ Record Probe Charger (Type C connector) Battery Cover SD card slot/ Reset key Reset key Power on/ off SD card slot Only compatible with the enclose type C cable. The rechargeable battery is embedded and can only be replaced in authorized service center or dealer or distributor. - Page 7 Power on ・ Press the Power button on the left side of top to turn on the device one time to turn on the device. ・ LED will be pop up after Power on. Power on/ off Preview 1. Preview mode 2.
- Page 8 4. Operation and Maintenance Playback ・ Touch on the home page. ・ Select folder by touching screen. ・ Touch to enter the folder to review the pictures or video. ・ Touch for page up and down. Playback Preview ・ Touch can preview the last 9 pictures, and for next 9 pictures.
- Page 9 Set up 1. Saturation adjustment 2. Contrast adjustment 3. Sharpness adjustment 4. Language/ Date/ Time/ Battery Power Saving/ Reset 5. White Balance correction. Saturation 1. Select to up or down level. 2. Enter SATURATION Sharpness 1. Select to up or down level. 2.
- Page 10 4. Operation and Maintenance Time Set Up 1. Select to set up Year/ Month/ Date/ Hour/ Minute 2. Enter 3. Select to return. Language Set Up Press to select language, 简 English or Simplified Chinese. Setting Reset Press to reset Saturation, Contrast, Brightness and Battery Saving to default.
-
Page 11: Battery Charge
4-3. Battery Charge When low battery shows on the LCD screen, get USB type C/A cable and AC adaptor plug in power outlet. An orange LED on the left top of the LCD screen will be lighted up after the USB type C/A cable inserts to the device. The battery has reached full capacity once the LED light turned off automatically. -
Page 12: Troubleshooting Section
5. Troubleshooting Section Problem Solution Micro SD card is not inserted into the No Snap and record functions. Preview device properly. function only. It is NOT allowed to remove the SD Improper Operation. card during snapping or recording Cause: Micro SD card might be damaged Solution: ・... -
Page 13: Specifications
6. Specifications ITEM DESCRIPTION Camera resolution 720P CMOS sensor, default 960 x 720 Frame Rate 30fps Light Source LED x 4pcs Lens Fixed Focus Field of View (FoV) 85° Lens F/No F 4.0± 5% Depth of Field (DoF) 5mm~50mm Control system Function Buttons Power / Snap / Record / Reset Output Interface... -
Page 14: Electromagnetic Compatibility (Emc) Tables
7. Electromagnetic Compatibility (EMC) Tables All medical electronic devices must conform to the requirements of IEC 60601-1-2. Precautions, adherences to the EMC guideline information provided in this manual and verification of all medical devices in simultaneous operation are required to ensure the electromagnetic compatibility and co-existence of all other medical devices. - Page 15 3. Except in case of misuse, negligence, obvious abuse or accidental damage, if a material or manufacturing defect is discovered during the warranty period, repairs will be made without charge upon the return of the instrument to our distributor. Model No. SC-1001A/AR Name: _______________________ Address: __________________________________ Dealer’s Name: _______________________...
- Page 16 SHINCHI TECHNOLOGY CORP. 11F., No.37, Sec.3, Minquan E. Rd., Chungshan Dist., Taipei City 104, Taiwan TEL : +886-2-7702-7077 FAX : +886-2-8712-1978 E-mail : kent@shinchitech.com www.shinchitech.com...
