C A L H O U N
SHOWER SYSTEM
SKU: 927746
BEFORE YOU BEGIN
We recommend consulting a professional if you are
unfamiliar with installing plumbing �xtures. Signature
Hardware accepts no liability for any damage to the
faucet, plumbing, sink, counter top, or for personal
injury during installation.
Observe all local plumbing and building codes.
Unpack and inspect the product for shipping damage.
If any damage is found, contact our Customer
Relations team via live chat at www.signaturehard-
ware.com or by emailing support@siganturehard-
ware.com.
GETTING STARTED
Ensure that you have gathered all the required
materials that are needed for the installation.
ADDITIONAL QUESTIONS?
Still need help? Check out our Help Center at
www.signaturehardware.com for product and
warranty information, or contact us through live
chat or by emailing support@signaturehard-
ware.com.

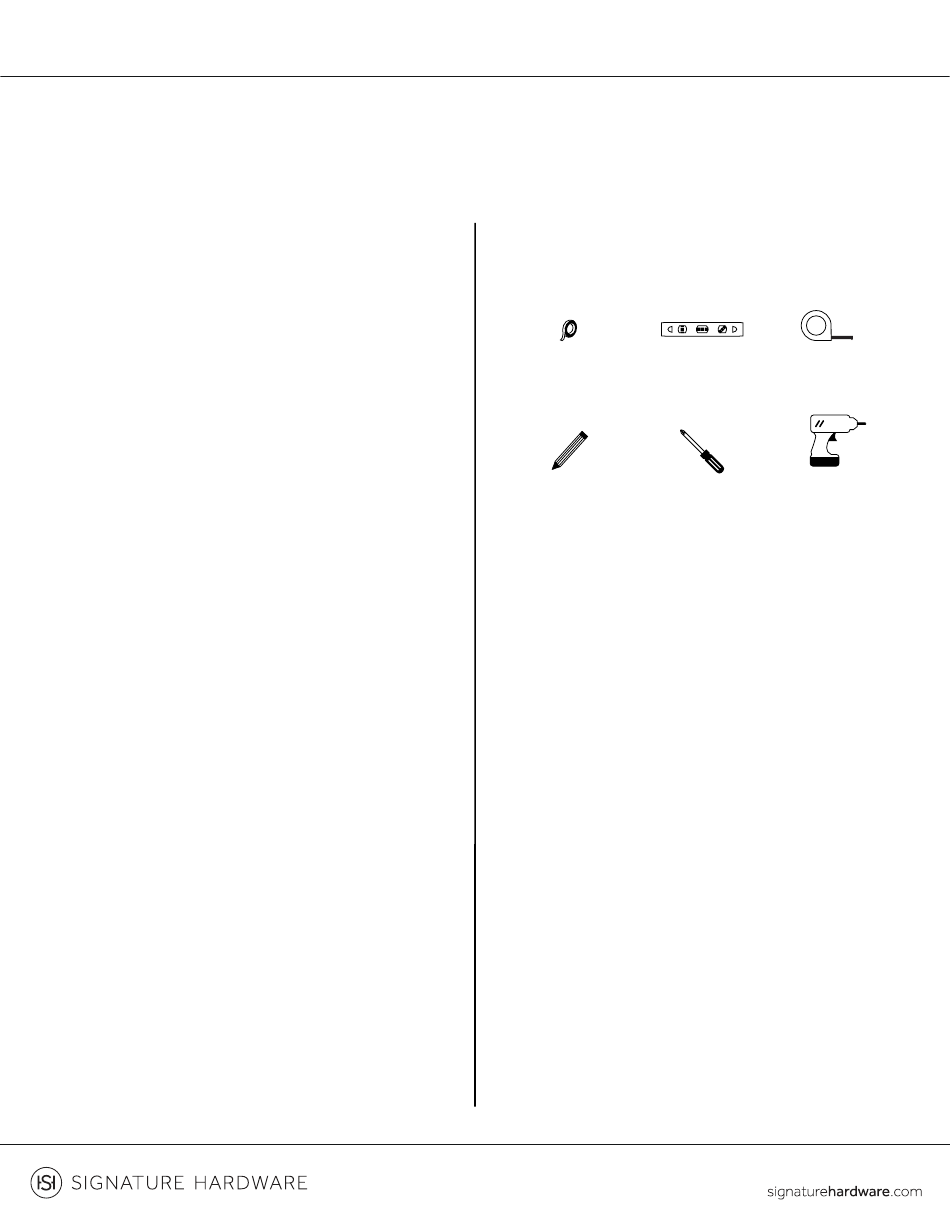

TOOLS AND MATERIALS:
Plumbers Tape
Pencil
Phillips Screwdriver
1
Level
Tape Measure
Drill
REVISED 02/02/2021
CODES: 405441, 414750, 414751
1.800.855.2284
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Signature Hardware CALHOUN 927746
Summary of Contents for Signature Hardware CALHOUN 927746
- Page 1 C A L H O U N SHOWER SYSTEM SKU: 927746 BEFORE YOU BEGIN TOOLS AND MATERIALS: We recommend consulting a professional if you are unfamiliar with installing plumbing �xtures. Signature Hardware accepts no liability for any damage to the faucet, plumbing, sink, counter top, or for personal injury during installation.
-
Page 2: Installation
C A L H O U N SHOWER SYSTEM SKU: 927746 INSTALLATION 1. Select the appropriate installation type for your application. G½" For stud walls, install the valve For masonry walls, create a body between the studs behind channel for valve body and pipe G½"... - Page 3 C A L H O U N SHOWER SYSTEM SKU: 927746 2. For stud wall installation, wrap plumbers tape around 4. Determine the locations of the valve body and the threaded connections and attach to the valve shower head. Connect the inlet pipe to the inlet joint. body.
- Page 4 C A L H O U N SHOWER SYSTEM SKU: 927746 5.Mark the location of the mounting holes on the 7. instert wall anchors into the holes drilled in the shower holder in the installation location. Use a level to previous step.
- Page 5 C A L H O U N SHOWER SYSTEM SKU: 927746 9. Tighten the self-tapping screws after making 11. Drill mounting holes with the appropriate drill bit adjustments. and insert the wall anchors. Level 4-ø 8 Holes 12. Loosely attach the valve body. 10.
- Page 6 C A L H O U N SHOWER SYSTEM SKU: 927746 13. Tighten the screws after making adjustments. 15. Connect the inlet pipes. Wrap plumblers tape around the threaded portion of the plug. Insert the plug into the 90° female elbow. Plug Water Inlet...
- Page 7 C A L H O U N SHOWER SYSTEM SKU: 927746 17. Place the protective sheath back on the valve body 18. Place the u-shaped bracket on the reinforcing rod and shower holder. and mark the location of the mounting holes. U-shaped Bracket Reinforcing Rod Protective Sheath...
- Page 8 C A L H O U N SHOWER SYSTEM SKU: 927746 20. Insert anchors into the holes drilled in the previous 22. Install the �nished wall material. step. 21. Attach the bracket to the wall with self-tapping screws. 1.800.855.2284...
- Page 9 C A L H O U N SHOWER SYSTEM SKU: 927746 23. Remove the protective sheath and unscrew the 24. For masonry wall installation, wrap plumbers tape plugs. Move on to step 44 (page 14) around the threaded connections and attach to the valve body.
- Page 10 C A L H O U N SHOWER SYSTEM SKU: 927746 26. Determine the locations of the valve body and 27. Place the locating plate on the shower holder. shower head. Connect the inlet pipe to the inlet joint. Install the plugs and protective sheath. Install the 90°...
- Page 11 C A L H O U N SHOWER SYSTEM SKU: 927746 29. Drill mounting holes with the appropriate drill bit 31. Tighten the screws after making adjustments. and install wall anchors. Level 8-ø 8 Holes Anchor 32. Mark the location of the mounting holes on the 30.
- Page 12 C A L H O U N SHOWER SYSTEM SKU: 927746 33. Drill mounting holes and install wall anchors. 35. Tighten the screws after making adjustments. 4-ø 8 Holes 34. Loosely attach the valve body. 36. Turn the water on to �ow water through the pipes clear out any dirt and debris.
- Page 13 C A L H O U N SHOWER SYSTEM SKU: 927746 37. Connect the inlet pipes. Wrap plumbers tape 39. Place the u-shaped bracket on the reinforcing rod around the threaded portion of the plug. Insert the and mark the location of the mounting holes. plug into the 90°...
- Page 14 C A L H O U N SHOWER SYSTEM SKU: 927746 41. Insert screws to install bracket 43. Remove the protective sheath and unscrew the plugs. 42. Place the protective sheaths over the pipe inlets and install the �nished wall material. 44.
- Page 15 C A L H O U N SHOWER SYSTEM SKU: 927746 45. Wrap plumbers tape around the pipe couplings and 47. Tighten the set screw to secure screw them into the shower holder �ttings Coupling Filter Net 48. Install the escutcheon and diverter handle. 46.
- Page 16 C A L H O U N SHOWER SYSTEM SKU: 927746 49. Install the hand shower 50. When installation is complete turn the faucet on, check to make sure that the hot and cold supplies are working correctly. Diver the water to each shower head output and hand shower and allow the water to �ow for approximately 60 seconds.
-
Page 17: Maintenance
C A L H O U N SHOWER SYSTEM SKU: 927746 MAINTENANCE Debris in the �lter net may result in decreased water pressure. To clean the �lter, remove the shower head and couplings. Rinse the �lter net thoroughly and run water through the pipes to clean out any remaining dirt and debris. Filter Coupling Set Screw...
