Summary of Contents for Hinton Equipment Flametech Lite

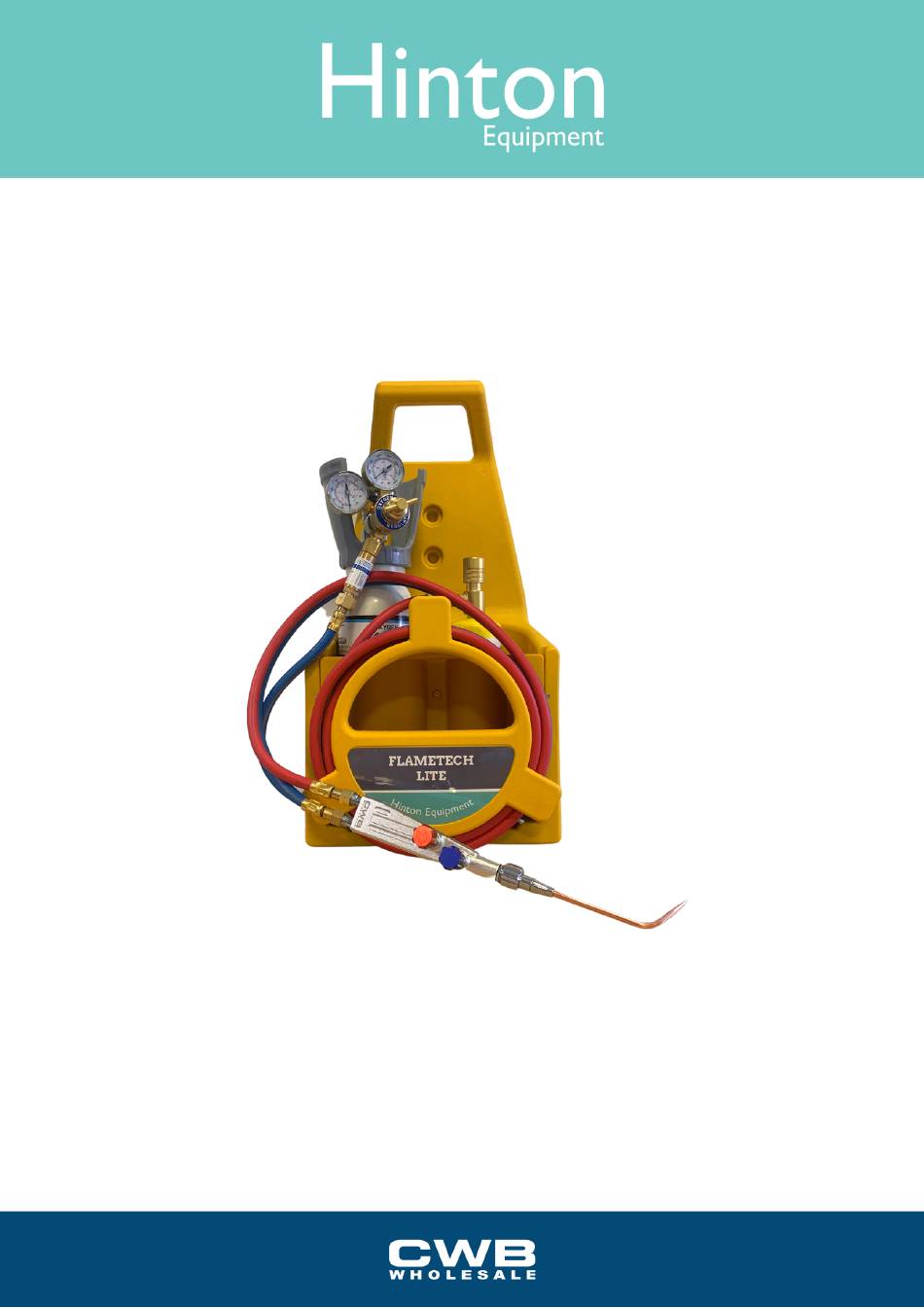

- Page 1 Flametech Lite Assembly and operating instructions...
- Page 2 Brazing Equipment Warning Do not attempt to use this equipment unless you are trained in its proper use or are under competent supervision. For your safety follow the operating procedures described below every time you use the equipment. Deviating from these procedures may result in fire, explosion, property damage and operator injury.
- Page 3 Flametech Lite Assembly & Safety Instructions Attaching Regulators 1. Regulators must be used only with the gas or gases and pressure for which they are designed. 2. Check the regulator for any damage. Threads must be in good condition and the seating connection must be free of contamination.
-
Page 4: Attaching The Hoses
• Regulator-mounted. HOSES Brazing hoses are colour coded blue for oxygen and red for fuel gas. All flametech Lite equipment have flashback arrestors and non return valves fitted. The Map gas has a built in F/B arrestor and the oxygen F/B arrestor is fitted at the regulator end. The hoses at the torch end have non return valves fitted for additional safety. -
Page 5: Leak Test Procedure
Flametech Lite Assembly & Safety Instructions LEAK TEST PROCEDURE 1. Ensure that all equipment connections are tightened. 2. Ensure that the pressure-adjusting knobs on both regulators are fully open. (Turn anti-clockwise) 3. Close both the fuel gas and oxygen torch valves. -
Page 6: Lighting And Shut Down Procedures
Flametech Lite Assembly & Safety Instructions 7. Close the oxygen torch valve. 8. Repeat the same procedure with the fuel gas. LIGHTING AND SHUT DOWN PROCEDURES Before lighting the torch always, follow all personal and equipment safety regulations. Wear safety glasses and filtered protective eyewear to protect the eyes from heat, sparks and hazardous rays of light produced by the flame. -
Page 7: Shutting Down The System
Flametech Lite Assembly & Safety Instructions EXTINGUISHING THE TORCH FLAME 1. Turn the fuel gas torch valve to the closed position. 2. Turn the oxygen torch valve to the closed position. SHUT DOWN THE SYSTEM FOR A SHORT TIME Having closed the fuel and oxygen torch valves, the equipment is safe to leave if the operator remains in the vicinity. - Page 8 Flametech Lite Assembly & Safety Instructions COMMON BRAZING FAULTS JOINT FRACTURE Joint fractures are more commonly found on larger joints and joints manufactured from dissimilar materials. When metals are heated they expand and when cooling they contract. If the two metals being brazed are manufactured from different compositions they will have different expansion and contraction rates.
- Page 9 Flametech Lite Assembly & Safety Instructions JOINTS CLOSE TO EACH OTHER When brazing joints that are close to each other you run the risk of when applying heat to the joint being brazed, the joint adjacent to it re-melts. This can be avoided by using alloys with different melting temperatures.
- Page 10 Flametech Lite Assembly & Safety Instructions Suggested brazing alloys Below are listed the most common brazing alloys used in the refrigeration and air conditioning industry. Other alloys are available on request. Page 10...
- Page 11 Page 11...
- Page 12 CWB Wholesale Ltd. Oak House, Priory Rd, Langstone Business Village, Newport NP18 2LH Tel: 01291 431373 Email: sales@cwbwholesale.com www.cwbwholesale.com...
