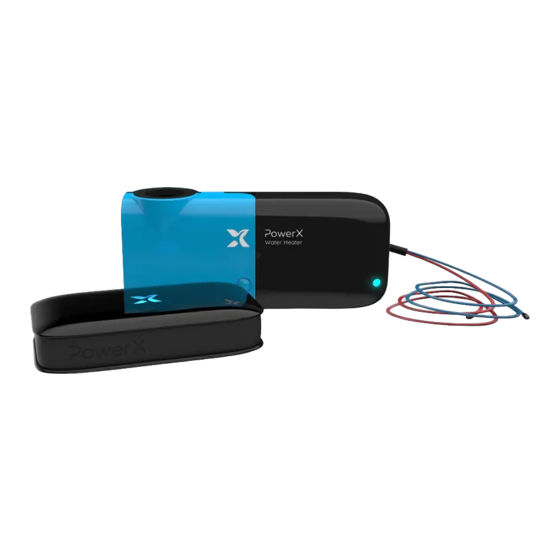

Summary of Contents for Powerx Water
- Page 1 Water...
- Page 2 WELCOME TO THE POWERX FAMILY Join us on our mission to save energy, water and the planet. community.powerx.co...
-
Page 3: Table Of Contents
Table of Contents What’s included Installation guide 1. Download the PowerX App & connect Hub 2. Connect to Wifi & add PowerX Water 3. Mount PowerX Water 4. Install PowerX Ultrasonic Sensor 5. Add water leak detection cable (optional) 6. Connect PowerX Water to power 7. -
Page 4: What's Included
What’s included Water PowerX Water PowerX Mount 2 USB wall adapter and power cable PowerX Hub 4 Mounting screws Zip Ties Optional PowerX Ultrasonic Sensor and strap nut Set of temperature Water leak sensors (Black, Blue, detection cable Data transmission cable... -
Page 5: Download The Powerx App & Connect Hub
Download the PowerX App & connect Hub 1.1 Plug in the PowerX Hub Connect the PowerX Hub to the wall adapter and cable, and plug it in an electrical outlet. The Hub’s LED light will start to blink. PowerX Water Get the PowerX App 1.2 Download the PowerX App... -
Page 6: Connect To Wifi & Add Powerx Water
“Add device”. Then scan the QR code on the bottom of the PowerX Water sensor or type in the ADD DEVICE sensor’s ID manually. SCAN QR CODE CALIBRATION COMPLETE Enter code Validate If you need further help please go to help.powerx.co... - Page 7 Step by step guide to installing PowerX Water and Ultrasonic Sensor...
-
Page 8: Mount Powerx Water
Mount PowerX Water Mount PowerX Water using the PowerX Mount, on the pipe or on the wall near the measuring space. Use the included screws or zip ties according to your selection. For option 1, PowerX Water must be installed between the main valve and the first... -
Page 9: Install Powerx Ultrasonic Sensor
Ultrasonic Sensor using the data transmission cable. Add water leak detection cable (optional) If your kit includes the water leak detection cable, attach it to PowerX Water and place the blue section in a location where any potential leak points exist. -
Page 10: Connect Powerx Water To Power
Connect PowerX Water to power Ensure PowerX Water is powered with 4AA batteries or plugged with the provided Micro USB connector according to option 1 your selection. AA batteries x4 option 2 Please note that measurement frequency and precision may be reduced when powered by battery to increase battery lifetime. -
Page 11: Calibrate Powerx Water
The faster the front light blinks, the closer you get to a stable light and good calibration. 7.2 Measure water flow To calibrate the water flow first ensure all running water for the household is turned OFF. Water Sensor Calibration PowerX Water Next, select “Water Sensor Calibration”... -
Page 12: Connectors
Connectors PowerX Water Micro USB connector Set of temperature sensors (Black, Blue, and Red) Data transmission cable Water leak detection cable User button (optional) PowerX Hub PowerX Ultrasonic Sensor Data transmission cable Micro USB connector LAN connection User button (optional) -
Page 13: Product Specifications
Product specifications Note: Access to the water inlet supply, and at least 6in of clean, straight pipe are required for installation. Dimensions (LxWxH) PowerX Water 7" x 3.1" x 1.7" PowerX Ultrasonic Sensor 3.9" x 3.1" x 2.3" PowerX Hub 5.2"... -
Page 14: Disclaimer
Disclaimer PowerX Water and PowerX Ultrasonic Sensor fall under the definition of permitted power monitoring equipment given that: (i) it’s identified as a field-installable accessory, and (ii) the total area of conductors and equipment at any cross-section of the wiring space does not exceed 75 percent of the cross-sectional area of that space, as per section 312.8(B) of the 2017 National Electrical Code... -
Page 15: Powerx Suite
Suite PowerX is most effective as a Suite, including Water, Electricity and Water Heating measurement. We strongly recommend installing the full Suite for highest efficiency and optimization. - Page 16 powerx.co...
