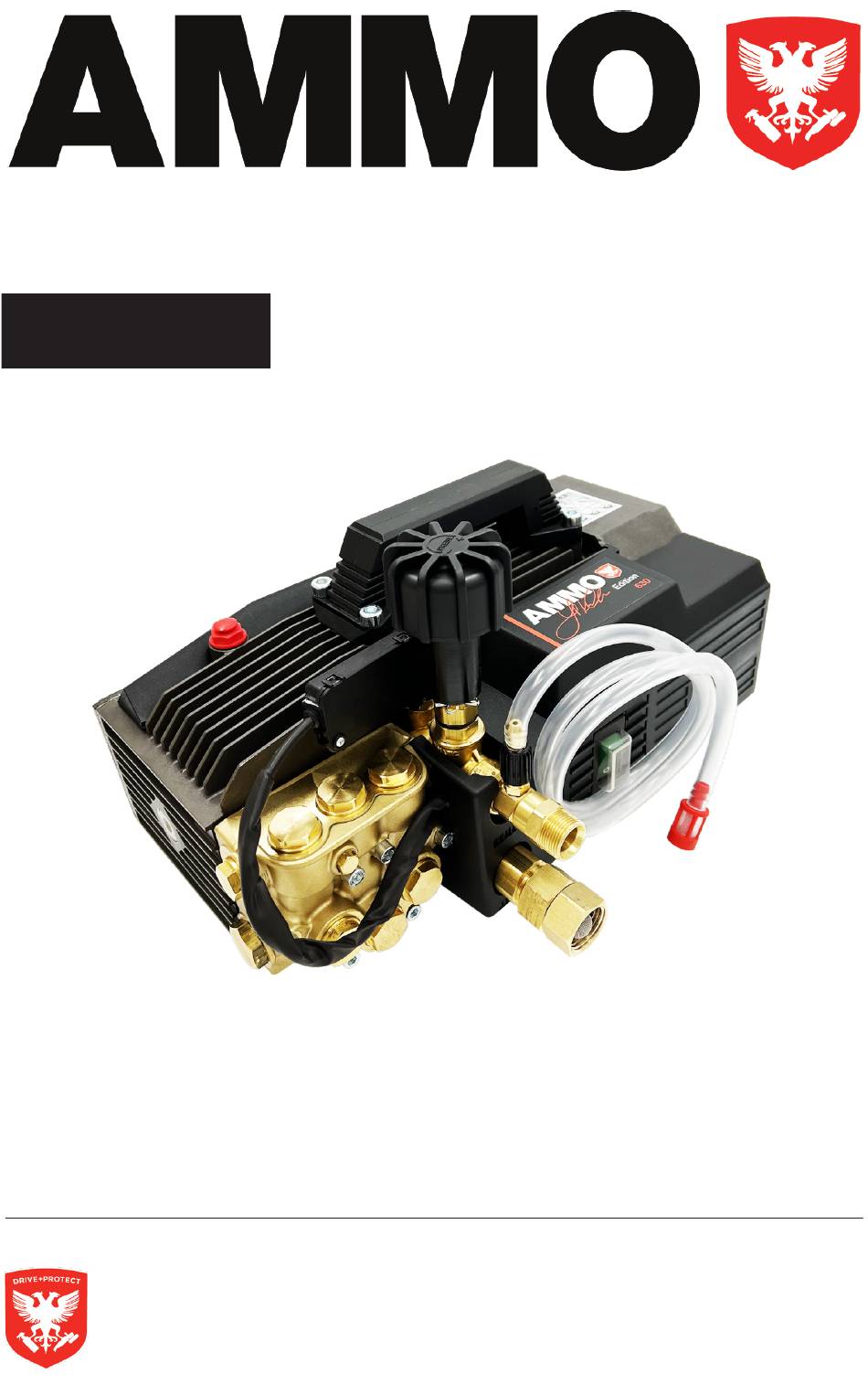

ASSEMBLY, CARE AND USE

INSTRUCTIONS FOR

AMMO630

SPECIAL EDITION

READ CAREFULLY

IMPORTANT:

INSTRUCTIONS AND ATTACH RECEIPT

TO MANUAL FOR FUTURE REFERENCE.

Questions, problems, missing parts?

Before returning to your retailer, call our customer service department at

1-866-235-5112, 8 a.m. - 5:00 p.m., CST, Monday - Friday.

www.ammonyc.com

RETAIN THESE

Table of Contents

Need help?

Do you have a question about the AMMO630 and is the answer not in the manual?

Questions and answers

Summary of Contents for AMMO AMMO630

Page 1 ASSEMBLY, CARE AND USE INSTRUCTIONS FOR AMMO630 SPECIAL EDITION READ CAREFULLY IMPORTANT: RETAIN THESE INSTRUCTIONS AND ATTACH RECEIPT TO MANUAL FOR FUTURE REFERENCE. Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1-866-235-5112, 8 a.m. - 5:00 p.m., CST, Monday - Friday.
Page 2: Important Notice
able of onTenTs Safety Instructions Included in the Box Operating Instructions 6-10 Maintenance Storing the Pressure Washer Starting after Period of Non-Use Troubleshooting Pump/Motor Parts Motor Parts Pump Parts 16-17 Unloader Parts 18-19 Pressure Washer Limited Warranty Warranty Returns Notes 22-23 Technical Specifications: 1,900 Max PSI | 2.1 Max GPM | 19 Amps...
Page 3: Safety Instructions
afeTy nsTruCTIons Read and understand these instructions as they pertain to safety. Pay special attention to the safety symbol throughout this manual. Failure to comply with these instructions may result in personal injury or property damage. DO NOT allow children to operate or play on or around this equipment.
Page 4 afeTy nsTruCTIons Never spray flammable liquids. Do not operate this machine in or around an explosive environment. Position the machine in an area that is protected from external damage. Always place the machine on a level surface. Do not move the unit by pulling on the hose or electrical cord. Never use the unit when under the influence of drugs, alcohol, or medication.
Page 5 In The Box Weight: 63lbs | Box Dimensions: 24x16x16” AL557-B M22 x 3/8 QC Plug AMMO630 Pump/Motor AR2605B AMMO630 Manual G.H.A. Swivel 3/4”Brass w/Filter...
Page 6: B Efore S Tarting The P Ressure W Asher
peraTIng nsTruCTIons efore TarTIng The ressure asher Read all safety instructions throughout the manual. Place unit on dry, firm ground for optimum lubrication of pump. The pressure washer should be as close as possible to the water supply. Tighten all hoses and connections. Check parts and replace if needed.
Page 7: During Operation
peraTIng nsTruCTIons TarTIng The ressure asher Turn on water supply to pump inlet. Plug the power cord into a properly grounded 20 Amp, 120 volt outlet. Purge air from system by removing nozzle and squeezing gun trigger before starting machine. Let water run until there is a steady stream of water coming out of the nozzle.
Page 8: S Oap I Njector
peraTIng nsTruCTIons sIng njeCTor Your pressure washer Pump Unit is supplied with a downstream low pressure soap/chemical injector. This is used for adding soap/ chemical to the water after it has flowed through the pump. Note: The injector works only with the supplied black soap nozzle. To draw soap/chemical into the water stream, insert the filter end of the detergent hose into the soap/chemical.
Page 9 peraTIng nsTruCTIons leanIng Chemicals: Cleaning agents are most effective when the surface is rinsed first to loosen dirt. After pre-rinsing to loosen dirt, then clean with the detergent. Detergent should be applied from the bottom to the top of the washing area.
Page 10 peraTIng nsTruCTIons ToppIng ressure asher If the chemical/soap injector was used, rinse with clean water. Note: Flush chemical line with new container and clean water until discharge is clear. Turn Pump Unit power switch to the “OFF” position. Turn off the water supply. Squeeze the trigger on the wand to relieve the system water pressure and drain as much water as possible.
Page 11: Maintenance
aInTenanCe Changing oil is one of the most important and least expensive maintenance items. It will prolong the life of your pressure washer. Change oil after first 50 hours of break-in period, and then every 200 hours or once per year. Demanding environments may require oil changes more frequently.
Page 12 TorIng The ressure asher Severe damage could occur by water freezing inside the components. To prevent costly repairs, follow these steps: Make sure the unit is “OFF, ” water supply is disconnected, and system pressure has been relieved by squeezing the trigger on the gun.
Page 13: Troubleshooting
roubleshooTIng ressure auses oluTIons Plugged Nozzle. Clean and check for blockage. Insufficient flow of water to Increase water flow to the pump. the pump. Plugged inlet screen. Pull out and clean screen carefully. Using restrictive supply hose. Use larger diameter supply hose. Remove valve caps.
Page 14 - p oTor arTs Pos. Code Description Pos. Code Description 1260273 Casing Black 1272811 Casing Black 1261551 Screw 1260470 Screw 180030 Screw 1260830 Base 1260710 Handle 1269115 Hose Assembly 1261760 Fan Cowling 1260780 Screw 1341030 Filter 1262790 Detergent Hose...
Page 15 - M oTor arTs Pos. Code Description Pos. Code Description 1260300 1269090 Ring Nut 1260970 Seal 1263550 Capacitor 1260360 Stud Bolt 1340280 Clamp Ø 50 126960 Water Shield 1271880 Screw 1260950 Bearing 1262370 1269100 Ground Terminal 1261820 Cable 1260400...
Page 16 - p UN_CE_1730-JQ...
Page 17 - p arTs Pos. Code Description Pos. Code Description 1260760 Screw 960191 O-ring (48 in/lbs)* 1269101 Cover 1269050 Complete Valve 1260040 Oil Seal 880831 O-ring 1260480 Dipstick 1230023 Head 1260010 Pump Body 1260421 O-ring 1269306 Head Assembly 1260441 Water Seal...
Page 18 - u nloader...
Page 19 - u nloader arTs Pos. Code Description Pos. Code Description 43359 800560 O-ring Complete TSS Kit 392840 Screw 1120681 O-ring 1980300 1560650 Hose Tail 2500540 Insert 480480 O-ring 1980220 Plate 1250280 Ball 1271070 Spring 1560520 Spring 1080041 Piston 1540570...
Page 20 IMITed arranTy ☑ AMMO Electric Pressure Washers come with a 1 Year Commercial Warranty. ☑ AMMO Electric Pressure Washer Accessories come with a 90 Day Warranty. ☑ Warranty is to the original purchaser and is non-transferrable. ☑ Warranty Claim may require product inspection by the Manufacturer.
Page 21: Warranty & Returns
ressure asher IMITed arranTy Customer Return Liability: ☑ Pumps and Accessories must have a Return RMA# ☑ Pumps must be shipped back with Shipping plug ☑ Shipments without RMA# will be denied ☑ Under no circumstance will the manufacture bare any responsibility for loss of unit, loss of time or inconvenience in any manner.
Page 22 oTes...
Page 23 oTes...
