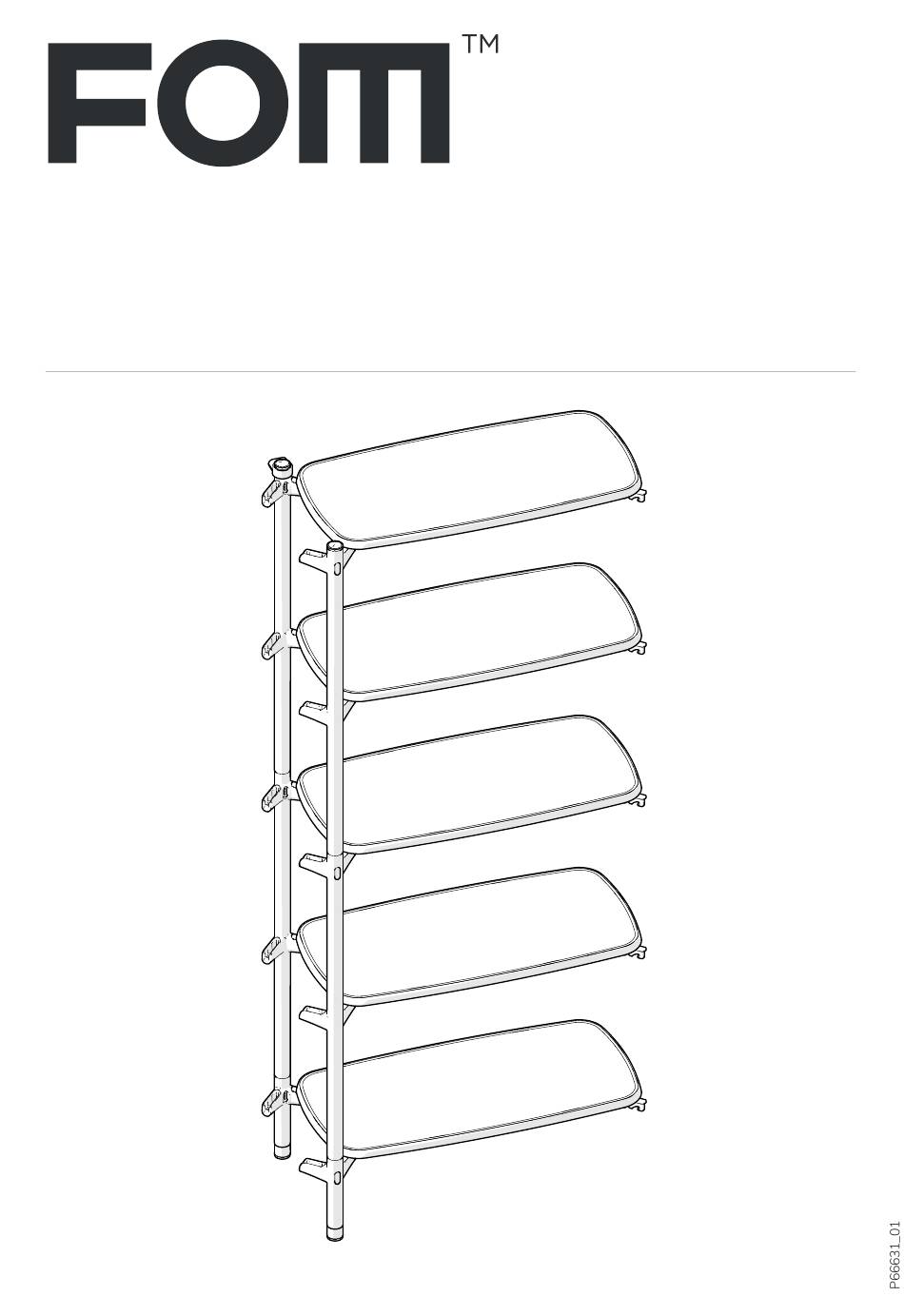

- Page 1 BOOKCASE HIGH FIVE ASSEMBLY INSTRUCTIONS...
-
Page 2: Assembly Parts
ASSEMBLY PARTS Keep this instruction manual for future references. Read the instructions carefully before assembly. X x5 E x5 R x4 T x2 N x26 S x6 H x2 K x4 F x1 C x1 I x25 M x2 Please use this tool “M” to disassemble “N” and “S” clips, placed on the uprights, and also the clips under the shelves. - Page 3 This product is for indoor use only. Warranty: 10 years (Note: if there is a request of replacement of a FOM Bookcase belonging to a “limited edition” color selection, not in production anymore, the product could be substituted with a different color option) www.myfom.com...
- Page 4 WARNING standalone shelf, please go to myfom.com for assembly videos.
- Page 5 WARNING Start to disassemble the stand-alone bookcase to connect the add-on. If the stand-alone bookcase was previously please start with removing the wall hanger and the related screws.
- Page 6 Open clips and remove the 2 upper shelves...
- Page 7 Please use this tool “M” to disassemble “N” and “S” clips, placed on the uprights, and also the clips under the shelves.
- Page 9 In order to stabilize the bookcase, please adjust the feet by rotating the "T" tool all the way down or slightly unscrew it, taking into Open clip under the shelf to remove the feet (L) on the right side...
- Page 10 Connect the feet (H) to the shelf and then close only the clips under the shelf Attention: keep all the clips fully open when connecting the shelf.
- Page 12 Repeat step 10-11-12 for all shelves click Attention: keep all the clips fully open when connecting the shelf.
- Page 13 click click...
- Page 14 Attention: keep all the clips fully open when connecting the shelf.
- Page 15 click...
- Page 16 Attention: keep all the clips fully open when connecting the shelf.
- Page 17 click...
- Page 18 Adjust feet to reach stability of the bookcase...
- Page 19 Mount the bookcase to the wall Wall mounting tools not included...
- Page 20 Made in Italy for FOM by Keter Italia S.p.A. - Via Marche, 12, 31045 Motta di Livenza (TV) - ITALIA www.myfom.com...
