Summary of Contents for Pknight SWB FX 720

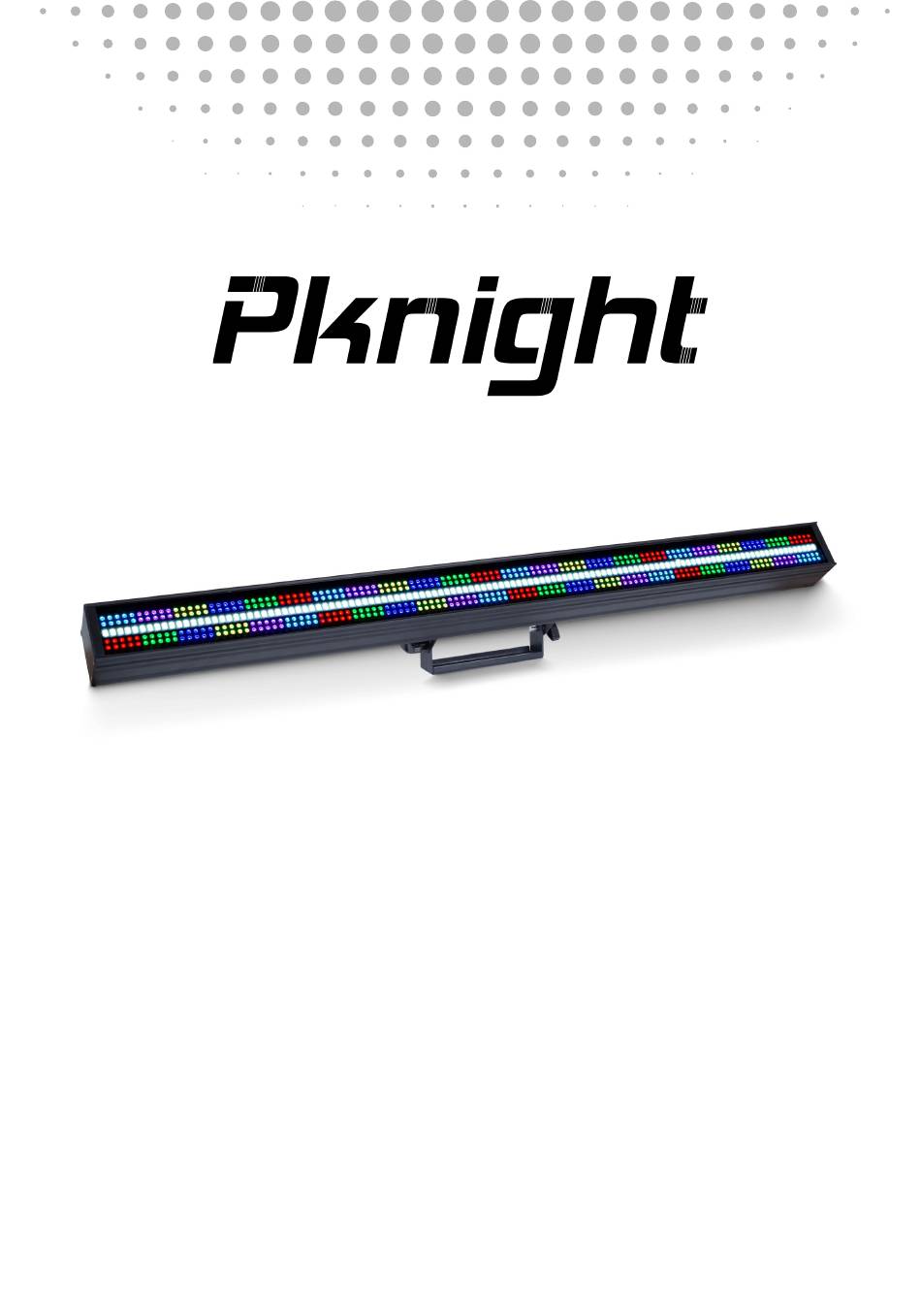

- Page 1 SWB FX 720 user manual Pknight SWB FX 720 Manual Page 1 ®...
-
Page 2: Table Of Contents
CONTENTS Introduction Customer Support How To install bracket REMOTE DEVICE MANAGEMENT Control Panel Menu Function Factory Settings DMX Modes · DMX Mode|4CH · DMX Mode|16CH 9~13 · DMX Mode|168CH Technical Features Pknight SWB FX 720 Manual Page 2 ®... -
Page 3: Introduction
Introduction Congratulations and thank you for purchasing the SWB FX 720.The SWB FX 720 is a DMX intelligent, high powered LED fixture.Designed for mobile or permanent lighting of stages, clubs, dance floors and churches. please read these operating instructions carefully to familiarize yourself with the basic operations of this unit. -
Page 4: Remote Device Management
Please be aware that not all RDM devices support all RDM features, and therefore it is important to check beforehand to ensure that the equipment that you are considering includes all of the features that you require. Pknight SWB FX 720 Manual Page 4 ®... -
Page 5: Control Panel
(See image above) MENU :To select the functions UP :To go forward in the selected functions DOWN :To go backward in the selected functions ENTER : Select an option or confirm a selection. Pknight SWB FX 720 Manual Page 5 ®... -
Page 6: Menu Function
ENTER to save. Manually set the brightness of the white LED (w000 ~ W255) and → press ENTER to save. Display temperature, for example, t045 indicates that the current lamp temperature is 45°C Pknight SWB FX 720 Manual Page 6 ®... -
Page 7: Factory Settings
3 seconds until you exit the factory settings page, note that all lights that need to be synchronized must be the same and connected using an xlr signal line Pknight SWB FX 720 Manual Page 7 ®... -
Page 8: Dmx Modes
Outer Red Dimmer, 0% to 100% 2 000~255 Green Dimmer Outer Green Dimmer, 0% to 100% 3 000~255 Blue Dimmer Outer Blue Dimmer, 0% to 100% 4 000~255 White Dimmer Inner White Dimmer, 0% to 100% Pknight SWB FX 720 Manual Page 8 ®... -
Page 9: Dmx Mode|16Ch
Background Color Dimmer, 0% to 100% Background Color 16 000~255 Dimmer Only works for 15ch RGB Mode W Mode RGBW Mode Background Color These parts are described in detail in the table below Pknight SWB FX 720 Manual Page 9 ®... - Page 10 DMX TRAITS*A for CH6 - RGB Mode FUNCTION VALUE 000~001 No function 002~003 Effect 1 004~005 Effect 2 006~007 Effect 3 250~251 Effect 125 252~253 Effect 126 254~255 Effect 127 Pknight SWB FX 720 Manual Page 10 ®...
- Page 11 DMX TRAITS*B for CH10 - W Mode FUNCTION VALUE 000~003 No function 004~007 Effect 1 008~011 Effect 2 012~015 Effect 3 244~247 Effect 61 248~251 Effect 62 252~255 Effect 63 Pknight SWB FX 720 Manual Page 11 ®...
- Page 12 DMX TRAITS*A for CH6 - RGBW Mode FUNCTION VALUE 000~001 No function 002~003 Effect 1 004~005 Effect 2 006~007 Effect 3 250~251 Effect 125 252~253 Effect 126 254~255 Effect 127 Pknight SWB FX 720 Manual Page 12 ®...
- Page 13 Color 1 010~015 Color 2 016~021 Color 3 022~027 Color 4 238~243 Color 40 244~249 Color 41 250~255 Color 42 NOTE:Not all RGB modes and RGBW modes can be added background color Pknight SWB FX 720 Manual Page 13 ®...
-
Page 14: Dmx Mode|168Ch
Group 23 White Dimmer, 0% to 100% 168 000~255 White Dimmer Group 24 White Dimmer, 0% to 100% NOTE:We divided all RGB leds into 48 groups and all white LEDs into 24 groups Pknight SWB FX 720 Manual Page 14 ®... -
Page 15: Technical Features
• 100-240V 50Hz/60Hz (Auto Sensing) • Max Power Consumption: 150W • IP class: IP20 Dimensions / Weight: • Length: 39.4” (1000mm) • Width: 2.7” (70mm) • Height: 5.9” (150mm) • Weight: 6.39 lbs. (2.9kg) Pknight SWB FX 720 Manual Page 15 ®... - Page 16 Pknight SWB FX 720 Manual Page 16 ®...
