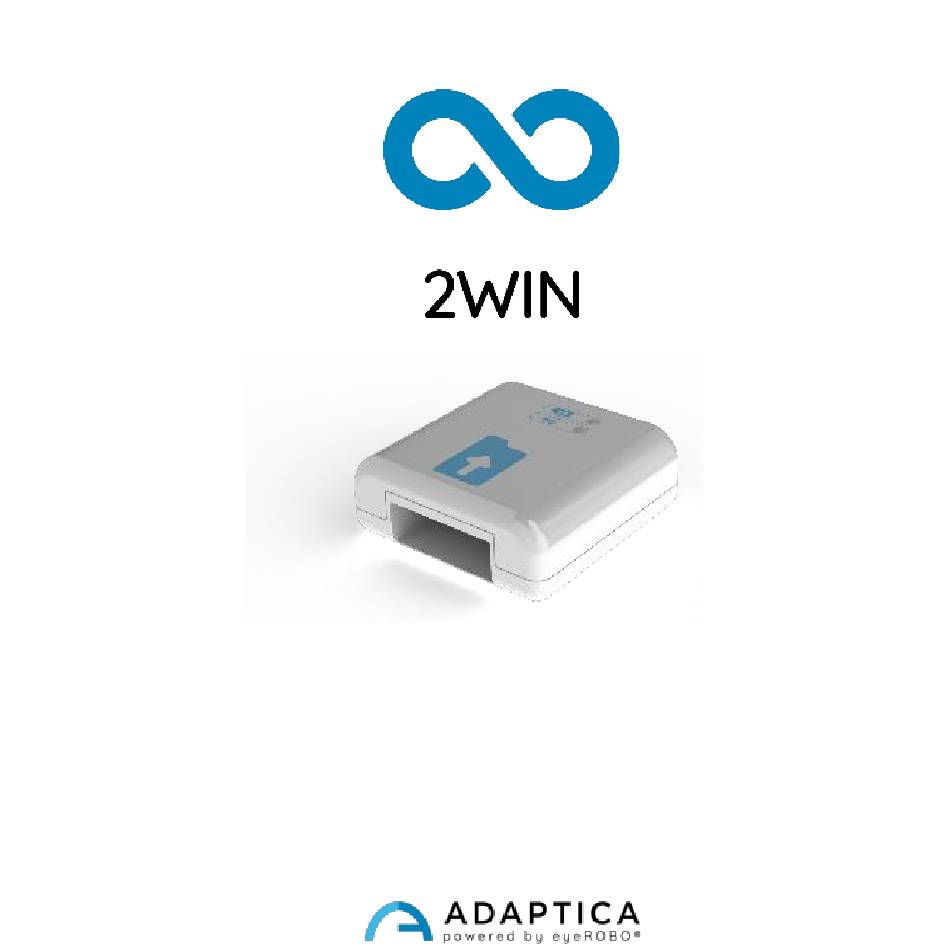

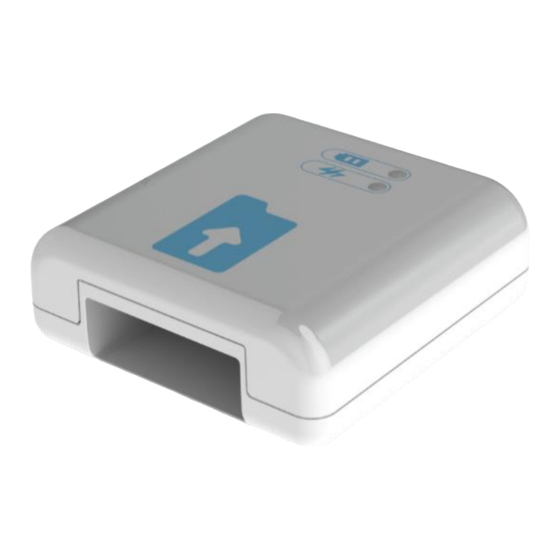

- Page 1 BATTERY CHARGER USER MANUAL...
- Page 3 INDEX Warnings pp. 2-4 Set Up p. 5 Led Information p. 6 Label and Symbol pp. 7-8 Technical Information pp. 9-10 EMC Tables pp. 11-16...
- Page 4 WARNINGS READ CAREFULLY THE OPERATING MANUAL OF 2WIN BEFORE USING THE BATTERY CHARGER THIS DEVICE MUST NOT BE USED IN OXYGEN RICH ENVIRONMENTS OR IN PRESENCE OF FLAMMABLE PRODUCTS TO REDUCE THE RISK OF INJURY, CHARGE ONLY BATTERY MODEL CS- SP112XL AND PSP-110ML THIS DEVICE IS DESIGNED TO BE USED INDOOR.
- Page 5 USE ONLY WITH ACCESSORIES SUPPLIED BY ADAPTICA (USB CABLE, POWER SUPPLY, ETC.) NO MODIFICATION OF THIS EQUIPMENT IS ALLOWED. ONLY TECHNICIANS AUTHORIZED BY THE MANUFACTURER MAY SERVICE THE DEVICE...
- Page 6 The device has been tested and found to comply to the limits for medical devices contained IEC60601-1-2. device cause radio interference or may disrupt the operation of nearby equipment. It may be necessary to take mitigation measures, such as re- orientering or relocating the 2WIN Battery Charger or shielding the location.
- Page 7 SET UP Insert USB type-C cable into the charger, and connect it to power supply Insert the battery inside the charger Extract the battery and use it in the 2WIN...
-
Page 8: Led Information
LED INFORMATION Red battery light: battery is charging Green battery light: battery is charged Battery light off: no battery or damaged battery Green power light: Power on Power light off: no power... - Page 9 LABEL AND SYMBOLS Electronic device subject to the WEEE Directive on waste disposal...
- Page 10 CE Marking Manufacturer ID Read user manual Date of manufacturing...
-
Page 11: Technical Information
TECHNICAL INFORMATION • AC/DC 110/240 VAC, 50/60 Hz • Power cable: USB type-C standard cable • Cable min-max length: 1-1.5 m • Weight: 70 g • Battery type: CS-SP112XL and PSP–110ML • Battery charger size: 6.5 X 7.0 X 2.5 mm •... - Page 12 • Maximum operating temperature: 25°C • The battery charger can be attached to metallic surfaces...
-
Page 13: Emc Tables
EMC TABLES Guidance and manufacturer’s declaration – electromagnetic emissions The 2WIN Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the user of the 2WIN Battery Charger should assure that it is used in such an environment. Emissions Electromagnetic Compliance... - Page 14 emissions Class B CISPR 11 The 2WIN Battery Charger is suitable for use in all Harmonic establishments, including emissions Not applicable domestic establishments and IEC 61000- those directly connected to the public low voltage power Voltage supply network that supplies fluctuations buildings used for domestic / flicker...
- Page 15 Guidance and manufacturer’s declaration – electromagnetic immunity The 2WIN Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the user of the 2WIN Battery Charger should assure that it is used in such an environment. Electromagnetic IEC 60601 Complian...
- Page 16 ±2 kV for Mains power Electrical fast power quality should be transient/burs supply lines that of a typical Complies t IEC 61000-4- ±1 kV for commercial or input/outp hospital our lines environment. ±1 kV Mains power line(s) to quality should be Surge line(s) that of a typical...
- Page 17 for 5 cycles Charger requires 70 % U continued (30 % dip in operation during power mains for 25 interruptions, it is cycles recommended <5 % U that the 2WIN (>95 % dip Battery Charger be in U powered from an for 5 s uninterruptible power supply or a...
- Page 18 hospital environment. NOTE U is the a.c. mains voltage prior to application of the test level.
- Page 20 Adaptica Srl Via San Marco 9/H, 35129 Padova (PD), Italy support@adaptica.com www.adaptica.com STESK00018_V1_EN...
