U s e r M a n u a l

Table of Contents

Need help?

Do you have a question about the E-One clinic and is the answer not in the manual?

Questions and answers

Summary of Contents for E-Swin E-One clinic

Page 1 U s e r M a n u a l...
Page 2: Table Of Contents
TABLE OF CONTENTS Dear client, PACKAGE CONTENTS PRECAUTIONS FOR USE You have just purchased an and I thank you for your custom. GLOSSARY INFORMATION PROVIDED BY TOUCH SCREEN Habits change and is evidence of this. You can now safely have access to a hair removal technology that uses professional quality pulsed light in the comfort of your home.
Page 3: Package Contents
YOU MUST KEEP ALL THE ELEMENTS OF THE ORIGINAL PACKAGING (BOXES, PACKAGING ETC.). REMINDER: Only E-Swin is authorised to sell and its accessories: optic, clean, patches, The manufacturer’s 2 year warranty will cover parts and labour only if the device is returned with all its elements in its original pen, gel, mask, fun, etc.
Page 4 (2 meters long) and an applicator cable (2 meters long). Do not • Do not unplug by pulling the cable of use any extension cables or any cable other than those provided by E-Swin SAS, as this could render the • Never use with wet hands.
Page 5 USAGE PRECAUTIONS CAUTIONS REGARDING UV ❙ DO NOT USE THE ❙ SUNBEDS / SUNSHOWERS OR ARTIFICIAL UV IN A BEAUTY PARLOUR: • If you are pregnant or have diabetes. You should take care about the use of artificial UV radiation. Regarding high pressure UV dispensed by high powered machines, it is advisable to wait a few days before or after such •...
Page 6 PERIMETER OF USE OF ❙ , designed and manufactured by E-Swin is a device of health regulated of class IIa, with CE marking delivered by CE 0197 organisation. may be used for the following applications: - Treatment for hair removal in relation to hormonal or idiopathic hirsutism, - Depilatory treatment for purely cosmetic purposes, on all parts of the body outside the peri-ocular region.
Page 7: Glossary

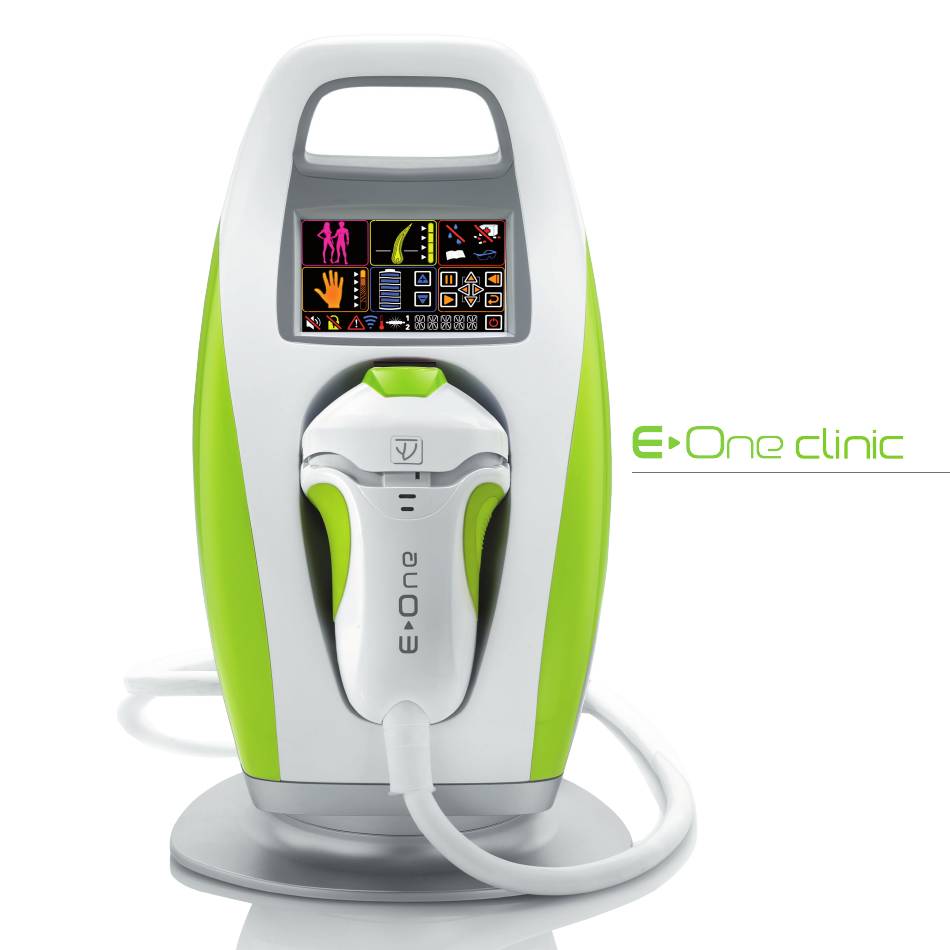

GLOS SARY THE BASE THE APPLICATOR ❙ ❙ Tip of optical Mobile head guide Mobile head locking Colour touch screen Start Lower button casing Applicator Flash support cable availability Applicator support area vents Upper casing...
Page 8: Information Provided By Touch Screen
INFORMATION PROVID ED BY TOUCH SCREEN__ THE BASE OF EQUIPPED WITH A TOUCH SCREEN ON / OFF OF THE DEVICE BROWSING AREA On/off switch. These buttons enable you to move from one character to another (22), and to increase or decrease the digits of each character.
Page 10 REMOVING HAIR WITH BEFORE E ACH USE ❙ VERIFICATION • Removing the cartridge with filter. optic • Check the power cord (must not be pinched or crushed, wire must not be bare). Once the mobile head is removed, the cartridge optic with filter is then visible in the applicator (2).
Page 11 REMOVING HAIR WITH STEP 1 STEP 2 STEP 3 ❙ ❙ ❙ CHOOSING THE BEST TIME TO USE THE PREPARE YOUR SKIN USING OF THE ACTIVATION CARD If your previous hair removal method was: • Your skin should be clean, dry and free of any cosmetic These devices operate with an activation card, credited with 3000 flashes.
Page 12 REMOVING HAIR WITH STEP 4 ❙ STARTING AND SETTING UP YOUR IDENTIFY YOUR SILHOUETTE (screen D). Select man / woman silhouette by clicking alternately on • Connect to its power cord. the frame (6). The selected silhouette stays on the screen: issues 3 beep sounds;...
Page 13 REMOVING HAIR WITH ADJUST THE DESIRED INTENSITY LEVEL: (screen G) CASE STUDIES ❙ The arrows located next to the intensity level icon (9), enable you to increase or to decrease the intensity of the Screen H issued flash. “I’m a man, I have white skin, I wish to remove the hair from Click on one of the two blue arrows, until it gradually my armpits”.
Page 14 REMOVING HAIR WITH STEP 5 PRECAUTIONS TO BE TAKEN DURING THE SESSION ❙ • You shall wear your safety glasses at all times. If other people are around you while you are using , they MARK OUT THE AREA TO BE FLASHED mask should also wear the safety glasses.
Page 15 REMOVING HAIR WITH ISSUING A FLASH STEP 6 ❙ - To be able to flash, the glass tip of the applicator (optical ENDING THE SESSION guide) must be applied onto the skin. Then pressure should be exerted so as to “push down” the head of the applicator, •...
Page 17 __CHANGING THE CARTRIDGE OPTIC STEP 3 ❙ This step must be performed with utmost caution. Any improper handling can result in permanent damage to the applicator and to in a more general way. The warranty does not cover improper han- •...
Page 18 __CHANGING THE CARTRIDGE OPTIC STEP 5 If this is not the case (if it overtakes by more than 2 mm), ❙ it means that the cartridge was inserted incorrectly: you RECEPTION OF THE NEW OPTIC CARTRIDGE AND must take it out and check that: UNPACKING - The red dots are aligned (33).
Page 19: Software Options
SOFTWARE OPTIONS SOFTWARE OPTIONS • Modify an existing PIN code ❙ Modifying an existing PIN code, while a former code already exists, is possible but only when is already running, i.e. the PIN you want to change has already been entered at start-up. You must therefore click once on the lock icon (16) PIN CODE and enter the current code once, then validate it (validation icon 14).
Page 21: Prohibited Handlings
PROHIBITED HANDLING ❙ LIST OF SOME ACTIONS THAT ARE PROHIBITED WHEN USING YOUR (non exhaustive) These actions are prohibited because they endanger you or may damage your device in an irreversible way. Once the car- optic tridge is exposed, Do not cover or block Do not to block the only touch the plastic the ventilation grid...
Page 22: Using The Accessories
USING THE ACCESSORIES The glasses shall be worn by all people present at the time The spray is used to clean and maintain: These self-adhesive are used to cover the small areas is used to mark out the area to be treated. The pencil of mask clean patches...
Page 23: Maintenance
MAINTE NANCE Check that your is unplugged when you are undertaking its maintenance. If you intervene after using , you must wait for the fan of the device to come to a complete stop before unplugging the base. This enables, among other things, the optical parts to cool down properly. NOTE: Unlike the fans located inside the applicator, the ones located inside the base of only stops when the...
Page 24: Assistance
ASSISTANCE TECHNICAL DEPARTMENT ❙ In case of doubt about the use of , contact our technical department. Contact us via our website www.esw-beauty.com. ERROR MESSAGES ❙ In addition to its own number (see table below), each error message is notified by the blinking of the warning icon (17). Screen Display Meaning What to do?
Page 25: Technical Characteristics
Do not use this product after the deadline specified beside this logo (gel). E-Swin SAS is affiliated to an eco organization that is responsible for collecting and processing of end-of-life products. The batch number of the product is indicated beside this logo (gel).
Page 26 TECHNICAL CHARACTERISTICS Immunity test IEC60601 Test Level Compliance Level Electromagnetic Environment - Guidance GUIDANCE AND MANUFACTURER’S DECLARATION ❙ Electrostatic Discharge Floors should be wood, concrete or ceramic tile. If floors (ESD) ± 6 kV contact ± 6KV contact are covered with synthetic material, the relative humidity ELECTROMAGNETIC EMISSIONS ±...
Page 27: Standards
NOTE 3: These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption an reflection from E-SWIN SAS, the company that is the exclusive manufacturer Never let either the base or the applicator come into structures, objects and peoples.
Page 28: Warranty Conditions
E-SWIN SAS will not be held responsible for any accident that may occur due to improper use or non-compliance with the prescriptions of the present manual or the...
Page 29 ZA de la Prévôté Rue des Côtes d’Orval 78550 Houdan FRANCE 01 30 46 37 61 w w w. e s w -b e a u t y.c o m 0197...
