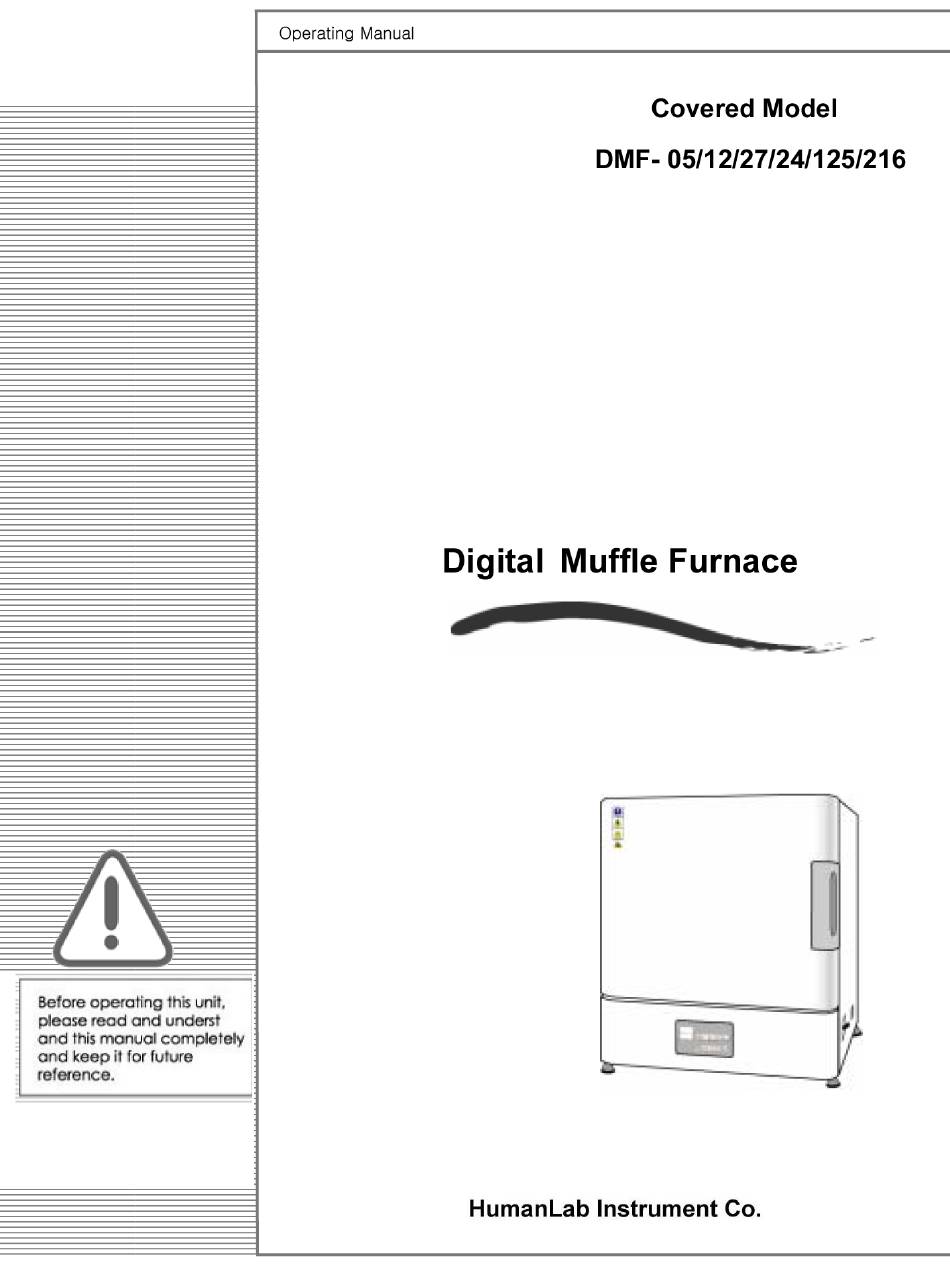

Summary of Contents for HumanLab DMF-05
- Page 2 MUFFLE FURNACE Table of Contents Features Setup Cautions Description of the parts Temperature Controls Maintenance and Storage Troubleshooting Warranty Technical Specifications...
- Page 3 MUFFLE FURNACE • Safety warnings Before operating, read and understand safety warnings thoroughly and use this equipment properly. Keep these warnings in mind for your safety. Safety Warnings: Danger!,Warning!,Caution! Danger : Failure to observe this instruction can result in a personal injury or death.
- Page 4 MUFFLE FURNACE 1. Features This product is ideally suited to various applications such as developing advanced materials, super conduction material experiment, ceramic sintering, heat treatment, glass melting, metal melting, and shaping molding sand, etc This product has following features for user’s safety and convenience. 1) High temperature up to 1000℃.
- Page 5 MUFFLE FURNACE Cautions Danger • Do not put flammable, explosive materials in the chamber. Explosion or fire may occur due to improper handling. Warning • Do not place flammable materials near the equipment. Fire may occur. • Do not touch the power cord with wet hands. Electric shock may occur . •...
- Page 6 MUFFLE FURNACE Description of the parts MUFFLE FURNACE MUFFLE FURNACE Push the door firmly to close.
- Page 7 MUFFLE FURNACE Description of the parts Push the door firmly to close. Caution! •The door springs are installed for airtight closeness and smooth operation of door. Push the door firmly to close.
- Page 8 MUFFLE FURNACE Controls (1) Functions and Features of the control panel ① Displays actual oven ⑦ Start/Stop running key (RUN) temperature & each mode ② Displays set temperature & data of each mode ⑧ Parameter setting key (MODE) ③ Displays the system is running (START) ⑨...
- Page 9 MUFFLE FURNACE (3) Operating Procedures Turn the power switch on. The PV display shows the actual temperature in the oven. Start The SV display shows set temperature. ‘TEMP’ Press the “Mode” key ⑧ to enter temperature set mode. ‘TEMP’ appears in the PV display ①. Set temperature display (SV display②) begins flashing to set desired temperature.
- Page 10 MUFFLE FURNACE (3) Operating Procedures Press the “Mode” key ⑧ to enter the temperature set mode. ‘TEMP’ appears in the PV display①. Set temperature display (SV display②) begins flashing to set desired temperature. ⑨ Press the “◁” key to move to the next digit position. Press the “up △⑪”...
- Page 11 MUFFLE FURNACE (4) Operating Procedures & Function Press “START” key for 2 seconds. The RUN and the OUT indicator lights turn on Start and the heater begins operating. The timer does not begin operating as the timer indicator blinks until set temperature is reached. The timer starts working as the indicator turns on after set temperature is reached.
- Page 12 MUFFLE FURNACE 6. Maintenance and Storage Warning • Make sure to unplug the unit from an outlet before cleaning he unit to avoid an electric shock. Caution • Pull the plug when disconnecting from an outlet. Do not pull the power cord. •...
- Page 13 MUFFLE FURNACE Troubleshooting Warning • Switch off the unit before any maintenance and make sure to disconnect the power. • If you are not authorized personnel, do not try to open, repair, or modify the unit. It can cause a fire or malfunction inflicting an injury upon people. Symptom Corrective Actions The unit does not...
- Page 15 MUFFLE FURNACE * Change of time format Default time format is Hour / Minute (HH.MM). You can change it with the following procedure.
- Page 16 MUFFLE FURNACE storing the factory default setting To restore the default setting from system memory, follow the procedure. Use it only when set values get too complicated.
- Page 17 MUFFLE FURNACE 7 Segment Display Examples...
