Summary of Contents for CAH U-3650D II

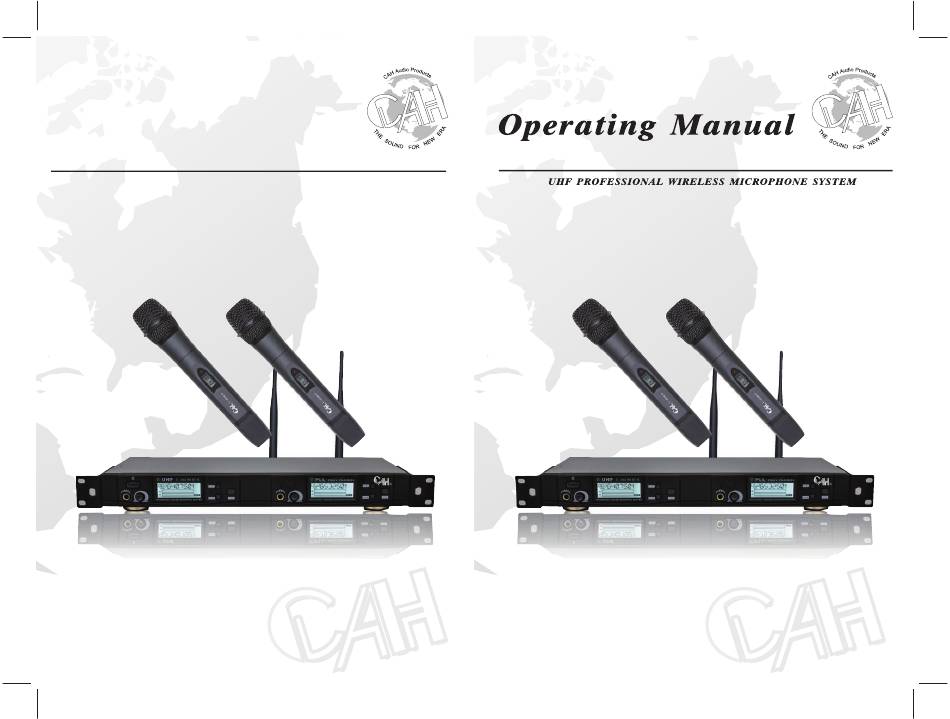

- Page 1 U-3650D II U-3650D II 操 作 说 明 书 U H F 专 业 无 线 话 筒 系 统...
-
Page 2: 安全注意事项
U-3650D II U-3650D II Professional Wireless Microphone System UHF 专业无线话筒系统 SAFETY PRECAUTIONS 安全注意事项 : The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert to user to the “闪电”符号提醒用户本机内存在“危险高压”，足以产生触电危险。 presence of uninsulated dangerous voltage within the product’s enclosure that may be of su cient magnitude to constitute a risk of electric shock to persons. -
Page 3: Table Of Contents
8 Luk Hop Street, San Po Kong, Kln., Hong Kong 香港九龙新蒲岗六合街八号六合工业大厦 21 楼 E - F 室 Tel : (852) 2766 3818 电话 : (852)2766 3818 传真 : (852)2363 0363 Fax : (852) 2363 0363 网址 : www.cah.com.hk 电邮 : sales@cah.com.hk Website: www.cah.com.hk E-mail: sales@cah.com.hk... -
Page 4: 接收机
Professional Wireless Microphone System UHF 专业无线话筒系统 FOREWORD 前言 Thank you for purchasing CAH UHF Professional Wireless Microphone System. 感谢您购买 CAH UHF专业无线话筒系统。 Before operating, please read this instruction manual carefully and thoroughly in order 在操作前，请仔细阅读本说明书，以了解正确的操作程序以获得最佳效果。 to attain the correct operating procedures and achieve the best results. -
Page 5: 各部份名称及功能
U-3650D II U-3650D II UHF 专业无线话筒系统 Professional Wireless Microphone System 接收机 U-3650D II-R RECEIVER U-3650D II-R A. 各部份名称及功能 A. FEATURES AND CONTROLS Front Panel 正面板 U-3650D II-R U-3650D II-R 背面板 Rear Panel Front Panel Rear Panel 背面板 正面板 Headphone Jack Antenna Sockets (A , B) 耳机插孔... -
Page 6: 接收机安装说明
U-3650D II U-3650D II Professional Wireless Microphone System UHF 专业无线话筒系统 RECEIVER U-3650D II-R 接收机 U-3650D II-R B. INSTALLATION B. 接收机安装说明 1. 把接收机放置在合适的操作位置上：可平放在平坦的表面上或镶嵌在机架 1. Place the receiver in its operating location, either on a horizotal surface or in a rack panel (optional rack panel mounting bracket may be purchased from your 内（用户可向邻近的经销商选购有关托盘）。... -
Page 7: 大屏幕液晶显示屏（Lcd）面板操作说明
U-3650D II U-3650D II UHF 专业无线话筒系统 Professional Wireless Microphone System 接收机 U-3650D II-R RECEIVER U-3650D II-R C. 大屏幕液晶显示屏（LCD）面板操作说明 C. LCD PANEL OPERATION 打开电源,LCD全亮时画面: After turn on the power, LCD screen will display as below: RF (Radio Frequency) Indicator 射频强度指示 AF (Audio Frequency) Indicator 音频强度指示... -
Page 8: 灵敏度调节菜单
U-3650D II U-3650D II Professional Wireless Microphone System UHF 专业无线话筒系统 RECEIVER U-3650D II-R 接收机 U-3650D II-R E. SENSITIVITY ADJUSTMENT MENU: E. 灵敏度调节菜单: Knobs SQL-A and SQL-B at the rear panel of the receiver (see on the rear panel 在背面板的 SQL-A、SQL-B 灵敏度调节旋钮 (见本操作手册第5页背面板图... -
Page 9: 自动扫频
U-3650D II U-3650D II UHF 专业无线话筒系统 Professional Wireless Microphone System 接收机 U-3650D II-R RECEIVER U-3650D II-R G. 自动扫频 G. AUTOMATIC FREQUENCY SEARCH U-3650D II-R U-3650D II-R MUTE MUTE 按两下 “SET” 键，进入自动扫频状态，LCD屏幕显示“SCAN”。此时按一 Press “SET” button twice to enter auto search status. The LCD screen will show “SCAN”. -
Page 10: 手持发射器
U-3650D II U-3650D II Professional Wireless Microphone System UHF 专业无线话筒系统 手持发射器 U-365H II HANDHELD TRANSMITTER U-365H II 各部份名称及功能： FEATURES AND CONTROLS: U-365H II U-365H II Power Switch: To turn on, keep pressing the “POWER” button at the bottom cap of the transmit- 电源开关：... -
Page 11: 手持发射器设置
U-3650D II U-3650D II UHF 专业无线话筒系统 Professional Wireless Microphone System 手持发射器 U-365H II HANDHELD TRANSMITTER U-365H II SETTING OF HANDHELD TRANSMITTER 手持发射器设置 FREQUENCY PAIRING OPERATION 对频操作 1. 按住手持发射器尾盖的电源开关1~2秒，开机。 1. Press and hold the power button on the bottom for 1~2 seconds, turn on the transmitter. - Page 12 U-3650D II U-3650D II Professional Wireless Microphone System UHF 专业无线话筒系统 HANDHELD TRANSMITTER U-365H II 手持发射器设置 U-365H II SETTING OF HANDHELD TRANSMITTER 手持发射器设置 FREQUENCY PAIRING OPERATION 对频操作 3. After the receiver selects the channel (for related operations, please refer to the 3.
-
Page 13: 更换手持发射器的电池
U-3650D II U-3650D II UHF 专业无线话筒系统 Professional Wireless Microphone System 手持发射器 U-365H II HANDHELD TRANSMITTER U-365H II HANDHELD TRANSMITTER’S BATTERIES INSTALLATION 更换手持发射器的电池 1. Keep pressing the “POWER” button at the bottom of the cap for 1~2 seconds until 1. 按住手持发射器尾盖的电源开关 1~2 秒，关机。... -
Page 14: 腰包发射器
U-3650D II U-3650D II Professional Wireless Microphone System UHF 专业无线话筒系统 BODYPACK TRANSMITTER BT-365 II 腰包发射器 BT-365 II FEATURES AND CONTROLS 各部份名称及功能 Exterior: 外观图 Antenna 天线 Microphone Jack 麦克风插孔 LCD Screen LCD显示器 Battery Cover 电池盖 Tie-Clip C-L65 领夹 C-L65 Microphone Capsule 音头... -
Page 15: 操作面板
U-3650D II U-3650D II UHF 专业无线话筒系统 Professional Wireless Microphone System 腰包发射器 BT-365 II BODYPACK TRANSMITTER BT-365 II OPERATING PANEL 操作面板 顶面图 APICAL PANEL 天线 Antenna 电源指示灯 Power Indicator 电源开关 Power Switch 麦克风插口 Microphone Jack 腰包发射器的安装说明 BODYPACK TRNASMITTER INSTALLATION 1. 装上所配的麦克风接在顶面板的麦克风插口上。... - Page 16 U-3650D II U-3650D II Professional Wireless Microphone System UHF 专业无线话筒系统 BODYPACK TRANSMITTER BT-365 II 腰包发射器 BT-365 II FREQUENCY PAIRING OPERATION: 对频操作： 2. After the receiver selects the channel (for related operations, please refer to the 2. 接收机选定频道(相关操作请查阅第7页中"D. 转换频率"说明)后，按一 description of "D. CHANGING FREQUENCY" on page 7), press "SET" button of the 下接收机的"SET"键。接收机进入对频模式，屏幕会显示对频状态。...
-
Page 17: 系统技术规格
U-3650D II U-3650D II UHF 专业无线话筒系统 Professional Wireless Microphone System SYSTEM TECHNICAL SPECIFICATIONS 系统技术规格 A. 全系统技术参数 A. OVERALL SYSTEM 1. OSD Mode: PLL LOCK 1. 设置频率方式：相位锁定频率 2. Operating Frequency: 650MHz (640.000MHz ~ 689.750MHz; selectable) 2. 工作频率范围：650MHz（640.000MHz~ 689.750MHz; 100个可调频点） 3. Modulation Mode: FM (PLL) 3. -
Page 18: 注意事项
1. 当接收机开机后显示“UN LOC”，或发射器开机后红灯持续闪动 transmitter is on and its red light ashes continously, it means that the 时，表示接收机或发射器出现故障，请发回厂家检修。 receiver or the transmitter malfunctions, please contact CAH for service. 2. If you are using several sets of this system simultaneously, please select 2. 若需要同时使用多套本系统时，请仔细选择工作频率（或讯道），以...
